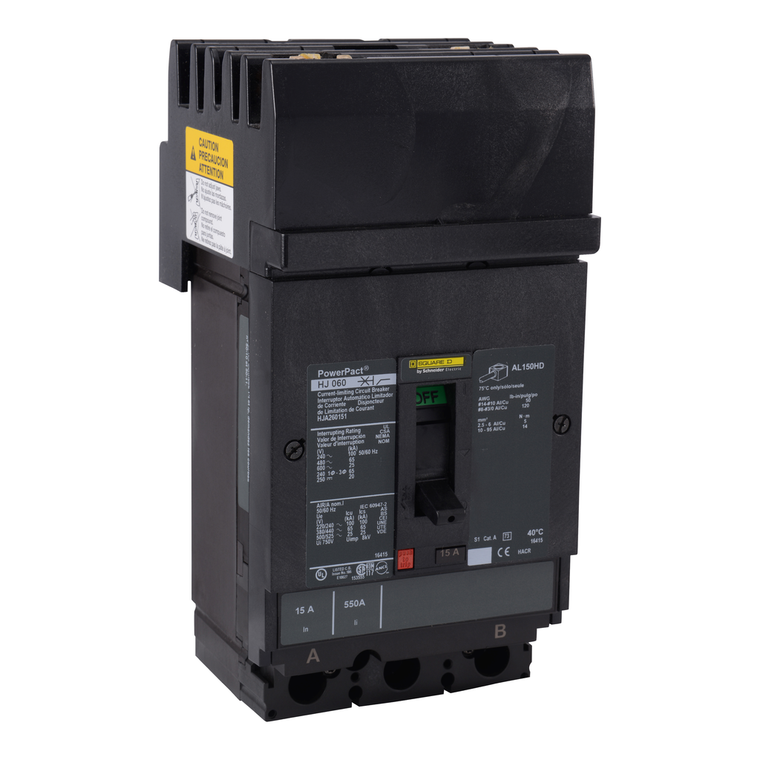

Schneider Electric HJA260154 Molded Case Circuit Breaker 600V 15A
Schneider Electric
$2,383.50
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric HJA260154 Molded Case Circuit Breaker 600V 15A
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 25kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT H I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This breaker has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT H, 15A, 2 pole, circuit breaker has a breaking capacity of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80% with a BC phase connection. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Product Certifications:
- UL || CSA || NOM
- Depth:
- 86 mm
- Suitability For Isolation:
- yes IEC 60947-2
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Pvc Free:
- Yes
- Utilisation Category:
- category A
- Product Name:
- PowerPact H
- Rohs Exemption Information:
- Yes
- Quantity Per Set:
- 1
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- Magnetic Tripping Current:
- 750-750 A
- Net Weight:
- 2.2 kg
- Mercury Free:
- Yes
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Electrical Connection:
- I-Line connection, line || lugs, load
- Sustainable Offer Status:
- Green Premium product
- Phase Connection:
- BC
- Breaking Capacity:
- 100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
- Breaking Capacity Code:
- J
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Mounting Support:
- bracket
- Protected Poles Description:
- 2t
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Ambient Air Temperature For Operation:
- -2-70 °C
- Ambient Air Temperature For Storage:
- -50-85 °C
- Environmental Disclosure:
- ENVPEP2206027EN
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Color:
- Black
- Circuit Breaker Application:
- HACR rated
- Wire Stripping Length:
- 16 mm
- Warranty:
- 18 months
- Pollution Degree:
- 3 IEC 60947-1
- Mounting Height:
- 4.5 in
- Network Frequency:
- 50/60 Hz
- Poles Description:
- 2P
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
- Terminal Identifier:
- AL150HD
- Trip Unit Technology:
- thermal-magnetic
- Communication Interface:
- Modbus || Ethernet
- Magnetic Hold Current:
- 350 A
- Eu Rohs Directive:
- Compliant with Exemptions
- Control Type:
- toggle
- Height:
- 163 mm
- Continuous Current Rating:
- 0.8
- Range:
- PowerPact
- Product Or Component Type:
- circuit breaker
- [Ics] Rated Service Breaking Capacity:
- 100 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 65 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 25 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Device Application:
- distribution
- Circularity Profile:
- ENVEOLI2206027EN
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Quality Labels:
- CE
- Line Rated Current:
- 15-15 A
- Width:
- 104 mm
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- Mounting Mode:
- I-Line bracket)
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
