Schneider Electric HJA260201 Molded Case Circuit Breaker 600V 20A
Schneider Electric
$1,589.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

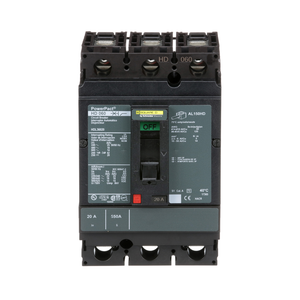

Schneider Electric HJA260201 Molded Case Circuit Breaker 600V 20A
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 25kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT H I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This breaker has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT H, 20A, 2 pole, circuit breaker has a breaking capacity of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an AB phase connection. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Net Weight:
- 2.2 kg
- Line Rated Current:
- 20-20 A
- Height:
- 163 mm
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Poles Description:
- 2P
- Product Name:
- PowerPact H
- Eu Rohs Directive:
- Compliant with Exemptions
- Magnetic Hold Current:
- 350 A
- Mercury Free:
- Yes
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Wire Stripping Length:
- 16 mm
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Pvc Free:
- Yes
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- Product Or Component Type:
- circuit breaker
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Device Application:
- distribution
- Quality Labels:
- CE
- Suitability For Isolation:
- yes IEC 60947-2
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Color:
- Black
- Terminal Identifier:
- AL150HD
- Range:
- PowerPact
- Protected Poles Description:
- 2t
- Mounting Mode:
- I-Line bracket)
- Quantity Per Set:
- 1
- Ambient Air Temperature For Operation:
- -2-70 °C
- Sustainable Offer Status:
- Green Premium product
- Breaking Capacity:
- 100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
- Magnetic Tripping Current:
- 750-750 A
- [Ics] Rated Service Breaking Capacity:
- 100 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 65 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 25 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Continuous Current Rating:
- 0.8
- Electrical Connection:
- I-Line connection, line || lugs, load
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
- Communication Interface:
- Modbus || Ethernet
- Mounting Support:
- bracket
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Rohs Exemption Information:
- Yes
- Ambient Air Temperature For Storage:
- -50-85 °C
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- Mounting Height:
- 4.5 in
- Phase Connection:
- AB
- Circularity Profile:
- ENVEOLI2206027EN
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Product Certifications:
- UL || CSA || NOM
- Pollution Degree:
- 3 IEC 60947-1
- Breaking Capacity Code:
- J
- Trip Unit Technology:
- thermal-magnetic
- Warranty:
- 18 months
- Environmental Disclosure:
- ENVPEP2206027EN
- Depth:
- 86 mm
- Utilisation Category:
- category A
- Network Frequency:
- 50/60 Hz
- Control Type:
- toggle
- Circuit Breaker Application:
- HACR rated
- Width:
- 104 mm
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
