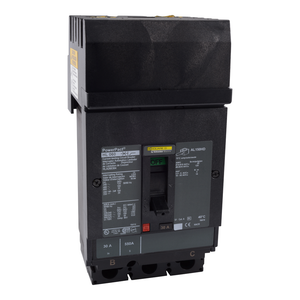

Schneider Electric HJA260203 Molded Case Circuit Breaker 600V 20A
Schneider Electric
$2,383.50
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric HJA260203 Molded Case Circuit Breaker 600V 20A
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 25kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT H I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This breaker has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT H, 20A, 2 pole, circuit breaker has a breaking capacity of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80% with a BA phase connection. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Communication Interface:
- Modbus || Ethernet
- Network Frequency:
- 50/60 Hz
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Sustainable Offer Status:
- Green Premium product
- Utilisation Category:
- category A
- Product Or Component Type:
- circuit breaker
- Magnetic Hold Current:
- 350 A
- Mounting Support:
- bracket
- Rohs Exemption Information:
- Yes
- Range:
- PowerPact
- Product Certifications:
- UL || CSA || NOM
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Mounting Height:
- 4.5 in
- Quality Labels:
- CE
- Product Name:
- PowerPact H
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Device Application:
- distribution
- Environmental Disclosure:
- ENVPEP2206027EN
- Protected Poles Description:
- 2t
- Control Type:
- toggle
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Terminal Identifier:
- AL150HD
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
- Warranty:
- 18 months
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Circuit Breaker Application:
- HACR rated
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- Net Weight:
- 2.2 kg
- Ambient Air Temperature For Operation:
- -2-70 °C
- Breaking Capacity Code:
- J
- Ambient Air Temperature For Storage:
- -50-85 °C
- Continuous Current Rating:
- 0.8
- Eu Rohs Directive:
- Compliant with Exemptions
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Mercury Free:
- Yes
- [Ics] Rated Service Breaking Capacity:
- 100 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 65 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 25 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Line Rated Current:
- 20-20 A
- Depth:
- 86 mm
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
- Height:
- 163 mm
- Electrical Connection:
- I-Line connection, line || lugs, load
- Color:
- Black
- Pvc Free:
- Yes
- Pollution Degree:
- 3 IEC 60947-1
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Mounting Mode:
- I-Line bracket)
- Quantity Per Set:
- 1
- Suitability For Isolation:
- yes IEC 60947-2
- Phase Connection:
- BA
- Magnetic Tripping Current:
- 750-750 A
- Breaking Capacity:
- 100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
- Width:
- 104 mm
- Wire Stripping Length:
- 16 mm
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Trip Unit Technology:
- thermal-magnetic
- Circularity Profile:
- ENVEOLI2206027EN
- Poles Description:
- 2P
