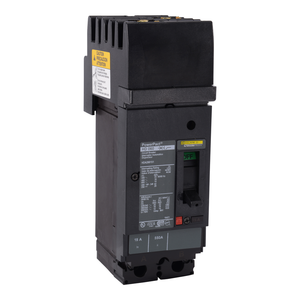

Schneider Electric HJA260351 Molded Case Circuit Breaker 600V 35A
Schneider Electric
$3,575.25
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric HJA260351 Molded Case Circuit Breaker 600V 35A
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 25kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT H I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This breaker has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT H, 35A, 2 pole, circuit breaker has a breaking capacity of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an AB phase connection. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Mounting Mode:
- I-Line bracket)
- Product Certifications:
- UL || CSA || NOM
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Quality Labels:
- CE
- Ambient Air Temperature For Storage:
- -50-85 °C
- Terminal Identifier:
- AL150HD
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Pvc Free:
- Yes
- Suitability For Isolation:
- yes IEC 60947-2
- Electrical Connection:
- I-Line connection, line || lugs, load
- Height:
- 163 mm
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Phase Connection:
- AB
- Eu Rohs Directive:
- Compliant
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
- Magnetic Tripping Current:
- 850-850 A
- Product Or Component Type:
- circuit breaker
- Wire Stripping Length:
- 16 mm
- Range:
- PowerPact
- Continuous Current Rating:
- 0.8
- Sustainable Offer Status:
- Green Premium product
- Communication Interface:
- Modbus || Ethernet
- Environmental Disclosure:
- ENVPEP1311006EN
- Rohs Exemption Information:
- Yes
- Quantity Per Set:
- 1
- Utilisation Category:
- category A
- Trip Unit Technology:
- thermal-magnetic
- Breaking Capacity:
- 100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
- Mercury Free:
- Yes
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- Circularity Profile:
- ENVEOLI1311006EN
- Color:
- Black
- Poles Description:
- 2P
- Network Frequency:
- 50/60 Hz
- Protected Poles Description:
- 2t
- Product Name:
- PowerPact H
- Net Weight:
- 2.2 kg
- Mounting Support:
- bracket
- Pollution Degree:
- 3 IEC 60947-1
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Control Type:
- toggle
- Circuit Breaker Application:
- HACR rated
- [Ics] Rated Service Breaking Capacity:
- 100 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 65 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 25 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Ambient Air Temperature For Operation:
- -2-70 °C
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- Line Rated Current:
- 35-35 A
- Breaking Capacity Code:
- J
- Width:
- 104 mm
- Depth:
- 86 mm
- Warranty:
- 18 months
- Magnetic Hold Current:
- 400 A
- Device Application:
- distribution
- Mounting Height:
- 4.5 in
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
