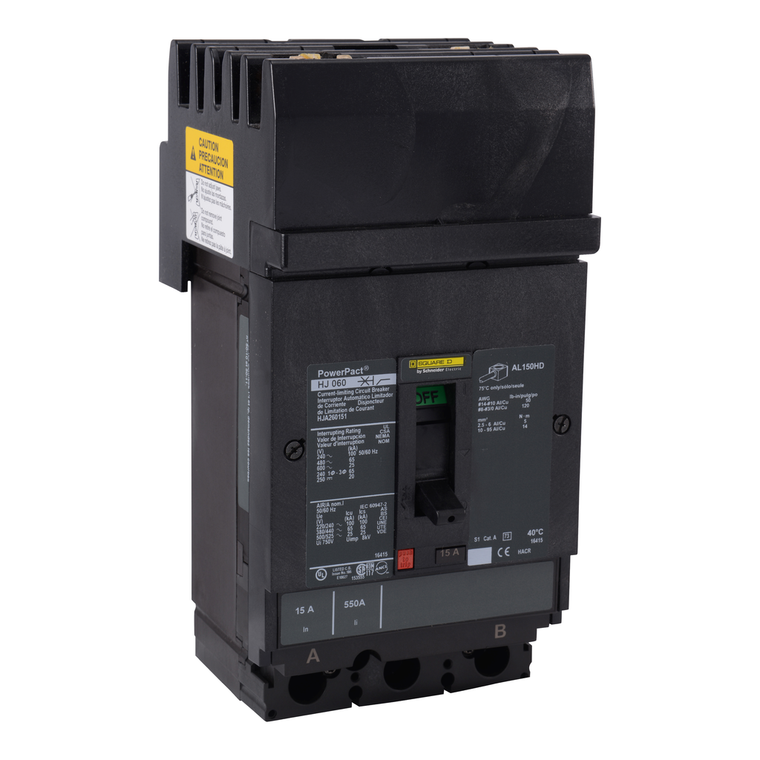

Schneider Electric HJA261504 Molded Case Circuit Breaker 600V 150A
Schneider Electric
$7,006.50
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 25kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT H I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This breaker has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT H, 150A, 2 pole, circuit breaker has a breaking capacity of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80% with a BC phase connection. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Product Or Component Type:
- circuit breaker
- Quality Labels:
- CE
- Mounting Support:
- bracket
- Trip Unit Technology:
- thermal-magnetic
- Wire Stripping Length:
- 16 mm
- Magnetic Hold Current:
- 900 A
- Continuous Current Rating:
- 0.8
- Communication Interface:
- Modbus || Ethernet
- Ambient Air Temperature For Operation:
- -2-70 °C
- Eu Rohs Directive:
- Compliant
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Depth:
- 86 mm
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Product Certifications:
- UL || CSA || NOM
- Height:
- 163 mm
- Pvc Free:
- Yes
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
- Terminal Identifier:
- AL150HD
- [Ics] Rated Service Breaking Capacity:
- 100 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 65 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 25 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Color:
- Black
- Mercury Free:
- Yes
- Poles Description:
- 2P
- Circularity Profile:
- ENVEOLI1311006EN
- Network Frequency:
- 50/60 Hz
- Circuit Breaker Application:
- HACR rated
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Range:
- PowerPact
- Product Name:
- PowerPact H
- Sustainable Offer Status:
- Green Premium product
- Warranty:
- 18 months
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- Electrical Connection:
- I-Line connection, line || lugs, load
- Breaking Capacity:
- 100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
- Ambient Air Temperature For Storage:
- -50-85 °C
- Control Type:
- toggle
- Environmental Disclosure:
- ENVPEP1311006EN
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- Width:
- 104 mm
- Rohs Exemption Information:
- Yes
- Suitability For Isolation:
- yes IEC 60947-2
- Line Rated Current:
- 150-150 A
- Protected Poles Description:
- 2t
- Breaking Capacity Code:
- J
- Net Weight:
- 2.2 kg
- Mounting Mode:
- I-Line bracket)
- Quantity Per Set:
- 1
- Utilisation Category:
- category A
- Pollution Degree:
- 3 IEC 60947-1
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Phase Connection:
- BC
- Device Application:
- distribution
- Mounting Height:
- 4.5 in
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Magnetic Tripping Current:
- 1700-1700 A
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
