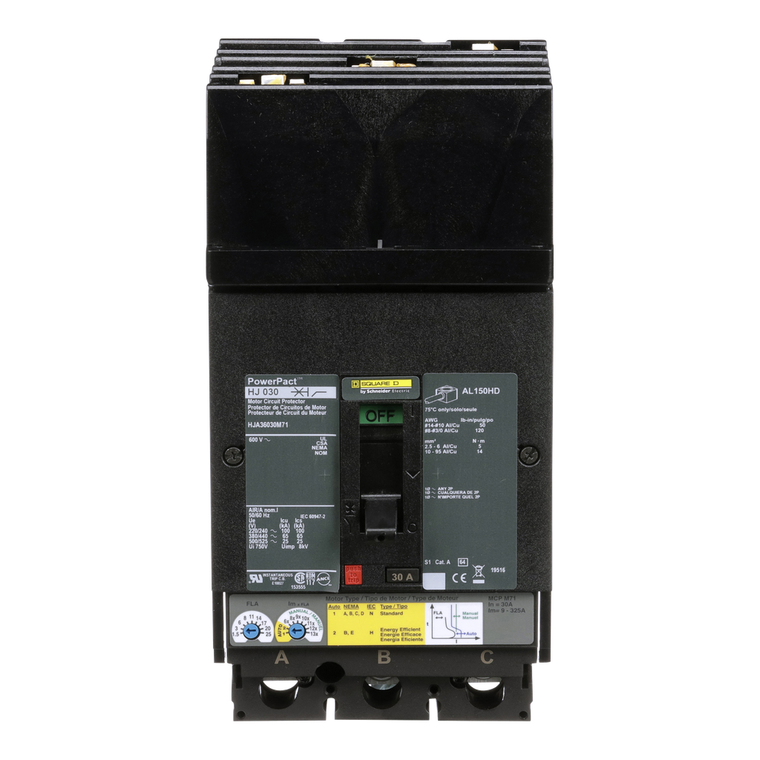

Schneider Electric HJA36030M71 Motor Circuit Protector 600V 30A

Schneider Electric HJA36030M71 Motor Circuit Protector 600V 30A

Schneider Electric
SKU:
HJA36030M71
|
UPC:
785901675778
Availability:
Contact us to confirm availability and lead times.
$1,668.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT H-Frame motor circuit protectors (MCP) are instantaneous-trip circuit breakers designed to offer short circuit protection for motors. The unique design of the PowerPacT MCPs accommodates transient motor inrush current without nuisance tripping. This PowerPacT H, 30A, 3 pole, motor protector has a breaking capacity of 25kA at 600VAC. This unit has I-Line terminations on the line side and mechanical lugs on the load side. These motor protectors accept the same accessories and terminals as PowerPacT H circuit breakers. This breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT H motor circuit protectors comply to UL, CSA, and IEC standards and are CE marked.
Additional Information
Mounting Mode:
I-Line bracket)
Utilisation Category:
category A
Continuous Current Rating:
0.8
Rohs Exemption Information:
Yes
Color:
Black
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Breaking Capacity Code:
J
Device Application:
distribution
Terminal Identifier:
AL150HD
[Ics] Rated Service Breaking Capacity:
100 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 65 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 25 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Depth:
86 mm
Network Frequency:
50/60 Hz
Circularity Profile:
ENVEOLI1311006EN
Poles Description:
3P
[Ith] Conventional Free Air Thermal Current:
1.5-25 A
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Breaking Capacity:
100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Product Name:
PowerPact H
Ip Degree Of Protection:
front cover IP40 IEC 60529
Net Weight:
2.2 kg
Warranty:
18 months
Eu Rohs Directive:
Compliant
Pvc Free:
Yes
Environmental Disclosure:
ENVPEP1311006EN
Quality Labels:
CE
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Tightening Torque:
5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
Height:
163 mm
Range:
PowerPact
Electrical Connection:
I-Line connection, line || lugs, load
Protected Poles Description:
3t
Quantity Per Set:
1
Mercury Free:
Yes
Magnetic Tripping Current:
9-325 A
Mounting Height:
4.5 in
Suitability For Isolation:
yes IEC 60947-2
Line Rated Current:
30-30 A
Trip Unit Technology:
thermal-magnetic
Mounting Support:
bracket
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Sustainable Offer Status:
Green Premium product
Ambient Air Temperature For Storage:
-50-85 °C
Ambient Air Temperature For Operation:
-2-70 °C
Product Or Component Type:
Motor Circuit Protector
Width:
104 mm
Communication Interface:
Modbus || Ethernet
Product Certifications:
UL || CSA || NOM
Control Type:
toggle
[Ue] Rated Operational Voltage:
690 V AC 50/60 Hz IEC 60947-3
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Awg Gauge:
AWG 14...AWG 3/0 aluminium/copper terminal
Pollution Degree:
3 IEC 60947-1
Wire Stripping Length:
16 mm
Phase Connection:
ABC
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
