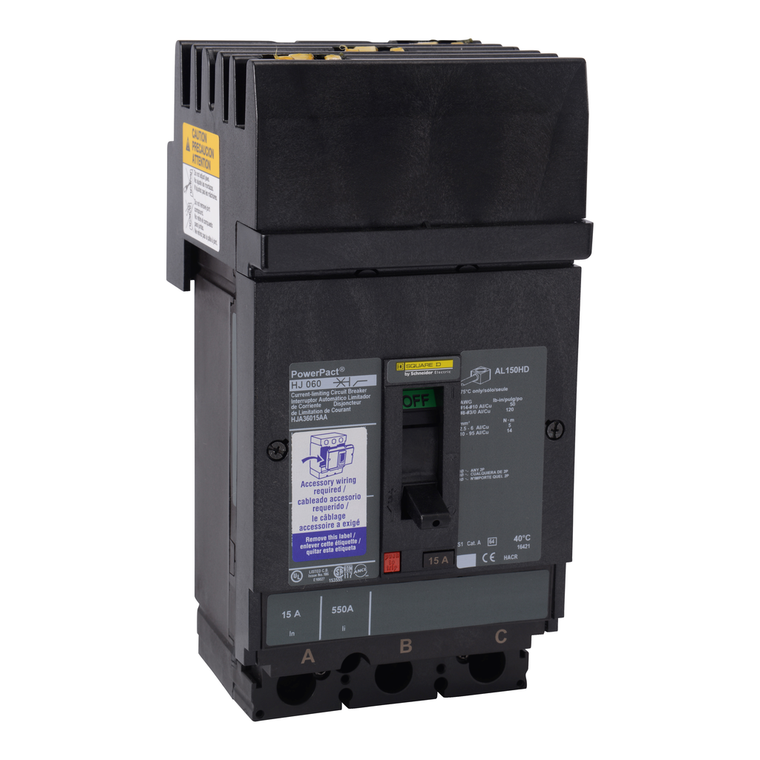

Schneider Electric HJA36040SA Molded Case Circuit Breaker 600V 40A
Schneider Electric
$2,705.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 25kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT H I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This breaker has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT H, 40A, 3 pole, circuit breaker has a breaking capacity of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. This unit includes a factory installed 120VAC shunt trip. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Range:
- PowerPact
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Continuous Current Rating:
- 0.8
- Breaking Capacity Code:
- J
- Depth:
- 86 mm
- Quantity Per Set:
- 1
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- Width:
- 104 mm
- Net Weight:
- 2.2 kg
- Ambient Air Temperature For Storage:
- -50-85 °C
- Height:
- 163 mm
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- Mounting Height:
- 4.5 in
- Terminal Identifier:
- AL150HD
- Color:
- Black
- Accessory / Separate Part Type:
- shunt trip 110...130 V AC compartment
- Communication Interface:
- Modbus || Ethernet
- Product Name:
- PowerPact H
- Suitability For Isolation:
- yes IEC 60947-2
- Pollution Degree:
- 3 IEC 60947-1
- Poles Description:
- 3P
- Breaking Capacity:
- 100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Mounting Support:
- bracket
- Trip Unit Technology:
- thermal-magnetic
- Network Frequency:
- 50/60 Hz
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Device Application:
- distribution
- Control Type:
- toggle
- Magnetic Tripping Current:
- 850-850 A
- Product Or Component Type:
- circuit breaker
- Phase Connection:
- ABC
- [Ics] Rated Service Breaking Capacity:
- 100 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 65 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 25 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Magnetic Hold Current:
- 400 A
- Environmental Disclosure:
- ENVPEP2206027EN
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Eu Rohs Directive:
- Compliant with Exemptions
- Sustainable Offer Status:
- Green Premium product
- Line Rated Current:
- 40-40 A
- Circularity Profile:
- ENVEOLI2206027EN
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Pvc Free:
- Yes
- Mounting Mode:
- I-Line bracket)
- Utilisation Category:
- category A
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
- Mercury Free:
- Yes
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Warranty:
- 18 months
- Electrical Connection:
- I-Line connection, line || lugs, load
- Wire Stripping Length:
- 16 mm
- Protected Poles Description:
- 3t
- Quality Labels:
- CE
- Circuit Breaker Application:
- HACR rated
- Rohs Exemption Information:
- Yes
- Product Certifications:
- UL || CSA || NOM
- Ambient Air Temperature For Operation:
- -2-70 °C
