Schneider Electric HJA36050YP Molded Case Circuit Breaker 600V 50A
Schneider Electric
$3,097.50
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

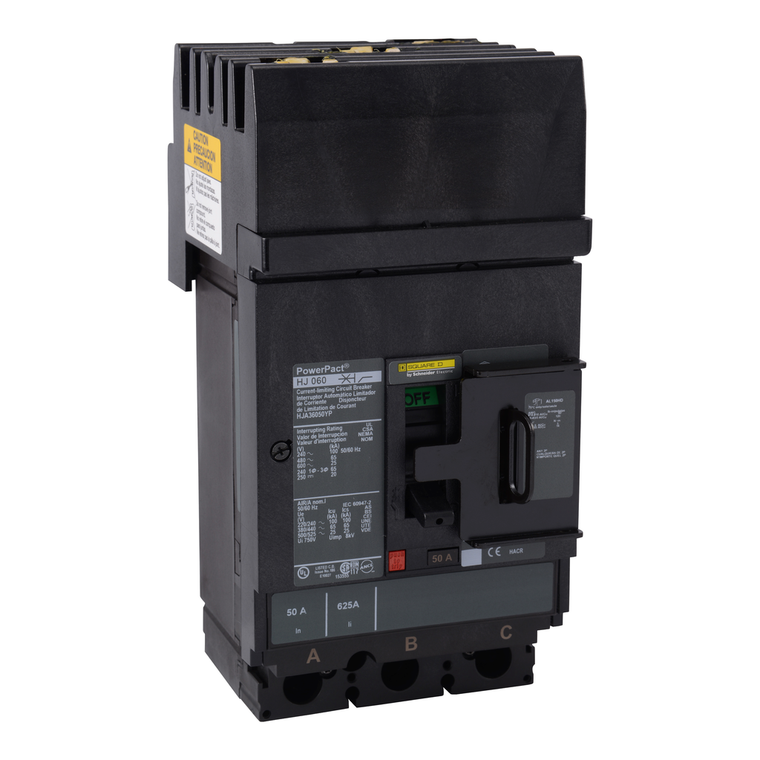

Schneider Electric HJA36050YP Molded Case Circuit Breaker 600V 50A
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 25kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT H I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This breaker has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT H, 50A, 3 pole, circuit breaker has a breaking capacity of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. This unit includes a factory installed padlock handle. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
- Terminal Identifier:
- AL150HD
- Electrical Connection:
- I-Line connection, line || lugs, load
- Network Frequency:
- 50/60 Hz
- Pvc Free:
- Yes
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
- Circularity Profile:
- ENVEOLI1311006EN
- Warranty:
- 18 months
- Line Rated Current:
- 50-50 A
- [Ics] Rated Service Breaking Capacity:
- 100 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 65 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 25 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Mounting Height:
- 4.5 in
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- Suitability For Isolation:
- yes IEC 60947-2
- Continuous Current Rating:
- 0.8
- Quality Labels:
- CE
- Rohs Exemption Information:
- Yes
- Poles Description:
- 3P
- Breaking Capacity Code:
- J
- Protected Poles Description:
- 3t
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Wire Stripping Length:
- 16 mm
- Device Application:
- distribution
- Quantity Per Set:
- 1
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Ambient Air Temperature For Storage:
- -50-85 °C
- Product Certifications:
- UL || CSA || NOM
- Ambient Air Temperature For Operation:
- -2-70 °C
- Accessory / Separate Part Type:
- padlocking device
- Breaking Capacity:
- 100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
- Control Type:
- toggle
- Environmental Disclosure:
- ENVPEP1311006EN
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Range:
- PowerPact
- Color:
- Black
- Magnetic Tripping Current:
- 850-850 A
- Trip Unit Technology:
- thermal-magnetic
- Utilisation Category:
- category A
- Height:
- 163 mm
- Pollution Degree:
- 3 IEC 60947-1
- Net Weight:
- 2.2 kg
- Circuit Breaker Application:
- HACR rated
- Phase Connection:
- ABC
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- Communication Interface:
- Modbus || Ethernet
- Product Name:
- PowerPact H
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Sustainable Offer Status:
- Green Premium product
- Magnetic Hold Current:
- 400 A
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Mounting Support:
- bracket
- Eu Rohs Directive:
- Compliant
- Mercury Free:
- Yes
- Width:
- 104 mm
- Product Or Component Type:
- circuit breaker
- Depth:
- 86 mm
- Mounting Mode:
- I-Line bracket)
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
