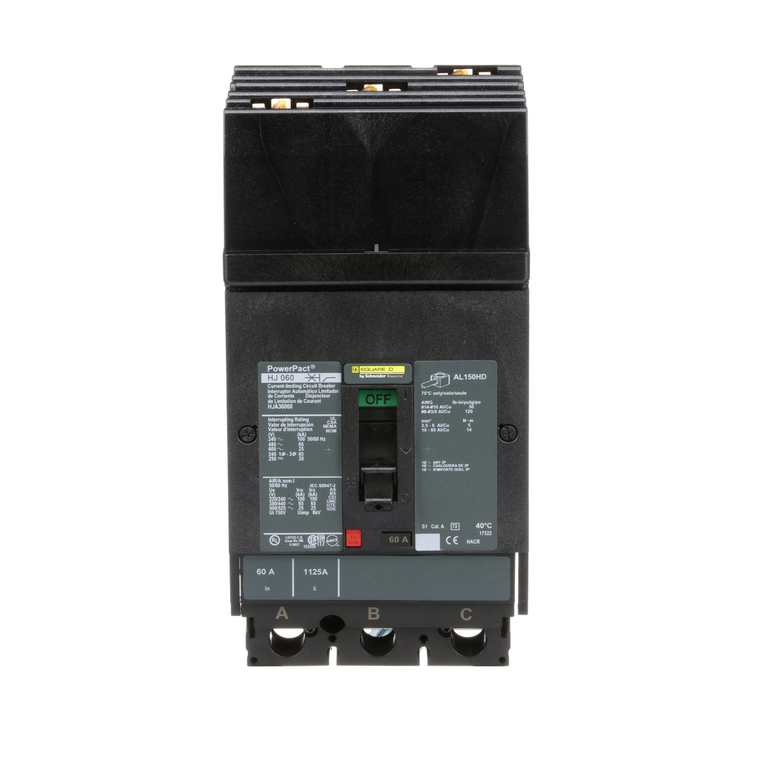

Schneider Electric HJA36060 Molded Case Circuit Breaker 600V 60A

Schneider Electric HJA36060 Molded Case Circuit Breaker 600V 60A

Schneider Electric
SKU:
HJA36060
|
UPC:
785901600961
Availability:
Contact us to confirm availability and lead times.
$1,988.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 25kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT H I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This breaker has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT H, 60A, 3 pole, circuit breaker has a breaking capacity of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Circularity Profile:
ENVEOLI2206027EN
Ambient Air Temperature For Storage:
-50-85 °C
Communication Interface:
Modbus || Ethernet
Warranty:
18 months
Terminal Identifier:
AL150HD
Device Application:
distribution
Network Frequency:
50/60 Hz
Utilisation Category:
category A
Circuit Breaker Application:
HACR rated
Mounting Mode:
I-Line bracket)
Quality Labels:
CE
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Breaking Capacity Code:
J
Control Type:
toggle
Product Or Component Type:
circuit breaker
Color:
Black
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Mercury Free:
Yes
Depth:
86 mm
Trip Unit Technology:
thermal-magnetic
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Magnetic Tripping Current:
1450-1450 A
Height:
163 mm
Pollution Degree:
3 IEC 60947-1
Mounting Support:
bracket
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Net Weight:
2.2 kg
Protected Poles Description:
3t
Local Signalling:
switched off (OFF) 1 trip indicator green)
Poles Description:
3P
[Ue] Rated Operational Voltage:
690 V AC 50/60 Hz IEC 60947-3
Continuous Current Rating:
0.8
Breaking Capacity:
100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
Product Name:
PowerPact H
Wire Stripping Length:
16 mm
Quantity Per Set:
1
Awg Gauge:
AWG 14...AWG 3/0 aluminium/copper terminal
Pvc Free:
Yes
Width:
104 mm
Tightening Torque:
5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
Suitability For Isolation:
yes IEC 60947-2
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Mounting Height:
4.5 in
Ambient Air Temperature For Operation:
-2-70 °C
Sustainable Offer Status:
Green Premium product
Phase Connection:
ABC
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Eu Rohs Directive:
Compliant with Exemptions
Line Rated Current:
60-60 A
Product Certifications:
UL || CSA || NOM
Electrical Connection:
I-Line connection, line || lugs, load
Environmental Disclosure:
ENVPEP2206027EN
Rohs Exemption Information:
Yes
Range:
PowerPact
[Ics] Rated Service Breaking Capacity:
100 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 65 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 25 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Magnetic Hold Current:
800 A
Ip Degree Of Protection:
front cover IP40 IEC 60529
