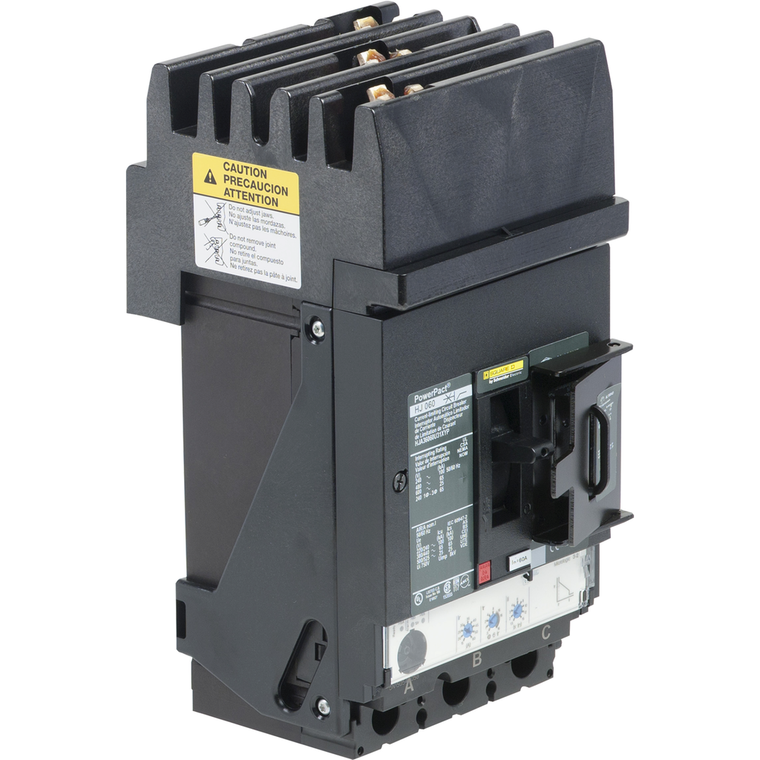

Schneider Electric HJA36060U31XYP Molded Case Circuit Breaker 600V 60A

Schneider Electric HJA36060U31XYP Molded Case Circuit Breaker 600V 60A

Schneider Electric
SKU:
HJA36060U31XYP
|
UPC:
7.85902E+11
Availability:
Factory stock
$1,495.22
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides Micrologic Standard with a 3.2 trip unit and an LI function with a breaking capacity of 25kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT H I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This breaker has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT H, 60A, 3 pole, circuit breaker has a breaking capacity of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. This unit includes a factory installed padlock handle. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Eu Rohs Directive:
Compliant with Exemptions
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Net Weight:
2.2 kg
Mounting Height:
4.5 in
Mercury Free:
Yes
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Control Type:
toggle
Awg Gauge:
AWG 14...AWG 3/0 aluminium/copper terminal
Ip Degree Of Protection:
front cover IP40 IEC 60529
Depth:
86 mm
Utilisation Category:
category A
Poles Description:
3P
Device Application:
distribution
Pvc Free:
Yes
Accessory / Separate Part Type:
padlocking device
Wire Stripping Length:
16 mm
Protected Poles Description:
3t
Pollution Degree:
3 IEC 60947-1
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Suitability For Isolation:
yes IEC 60947-2
Sustainable Offer Status:
Green Premium product
Environmental Disclosure:
ENVPEP2206028EN
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Communication Interface:
Modbus || Ethernet
Electrical Connection:
I-Line connection, line || lugs, load
Quality Labels:
CE
Product Certifications:
UL || CSA || NOM
Mounting Support:
bracket
Width:
104 mm
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Ambient Air Temperature For Storage:
-50-85 °C
Circuit Breaker Application:
HACR rated
Circularity Profile:
ENVEOLI2206028EN
Trip Unit Technology:
electronic, standard, MicroLogic 3.2, LI
Network Frequency:
50/60 Hz
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Continuous Current Rating:
0.8
[Ics] Rated Service Breaking Capacity:
100 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 65 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 25 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Local Signalling:
ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
Color:
Black
Quantity Per Set:
1
[Ue] Rated Operational Voltage:
690 V AC 50/60 Hz IEC 60947-3
Ambient Air Temperature For Operation:
-2-70 °C
Mounting Mode:
I-Line bracket)
Rohs Exemption Information:
Yes
Product Name:
PowerPact H
Warranty:
18 months
Long Time Pick-Up Adjustment Range:
0.25...1 x In
Product Or Component Type:
circuit breaker
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Line Rated Current:
60-60 A
Breaking Capacity Code:
J
Tightening Torque:
5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
Height:
163 mm
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Breaking Capacity:
100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
Phase Connection:
ABC
Trip Unit Name:
MicroLogic 3.2
Range:
PowerPact
Terminal Identifier:
AL150HD
