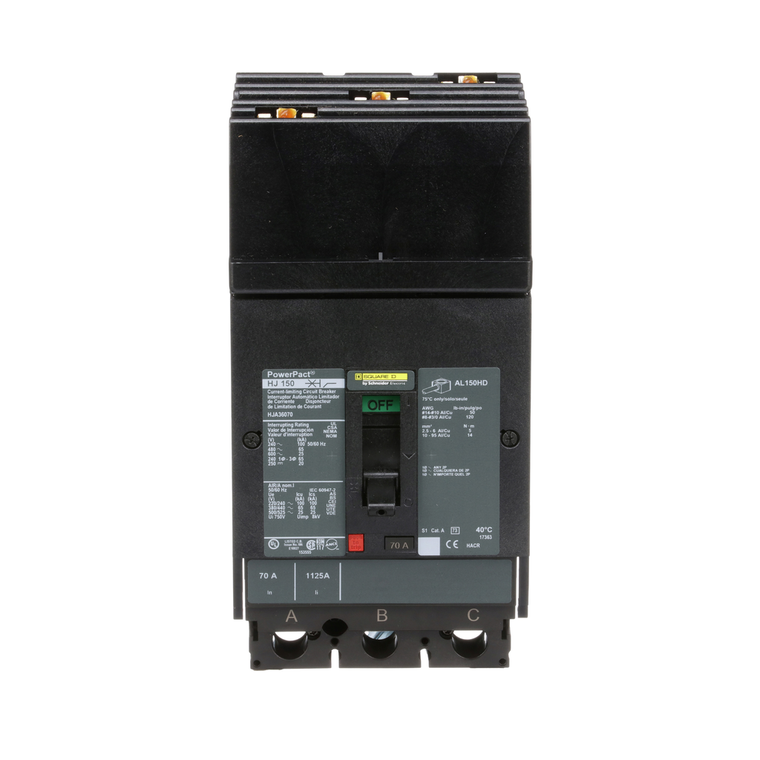

Schneider Electric HJA36070 Molded Case Circuit Breaker 600V 70A

Schneider Electric HJA36070 Molded Case Circuit Breaker 600V 70A

Schneider Electric
SKU:
HJA36070
|
UPC:
785901700661
Availability:
Contact us to confirm availability and lead times.
$2,225.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 25kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT H I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This breaker has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT H, 70A, 3 pole, circuit breaker has a breaking capacity of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Net Weight:
2.2 kg
Utilisation Category:
category A
Terminal Identifier:
AL150HD
Eu Rohs Directive:
Compliant with Exemptions
Product Name:
PowerPact H
Ambient Air Temperature For Storage:
-50-85 °C
Awg Gauge:
AWG 14...AWG 3/0 aluminium/copper terminal
Environmental Disclosure:
ENVPEP2206027EN
Mounting Support:
bracket
Product Or Component Type:
circuit breaker
Mercury Free:
Yes
Breaking Capacity Code:
J
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Pollution Degree:
3 IEC 60947-1
[Ics] Rated Service Breaking Capacity:
100 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 65 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 25 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Circuit Breaker Application:
HACR rated
Rohs Exemption Information:
Yes
Magnetic Hold Current:
800 A
Color:
Black
Line Rated Current:
70-70 A
Ip Degree Of Protection:
front cover IP40 IEC 60529
Local Signalling:
switched off (OFF) 1 trip indicator green)
Product Certifications:
UL || CSA || NOM
Tightening Torque:
5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
Trip Unit Technology:
thermal-magnetic
[Ue] Rated Operational Voltage:
690 V AC 50/60 Hz IEC 60947-3
Circularity Profile:
ENVEOLI2206027EN
Warranty:
18 months
Continuous Current Rating:
0.8
Height:
163 mm
Mounting Height:
4.5 in
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Network Frequency:
50/60 Hz
Phase Connection:
ABC
Mounting Mode:
I-Line bracket)
Poles Description:
3P
Width:
104 mm
Magnetic Tripping Current:
1450-1450 A
Sustainable Offer Status:
Green Premium product
Quality Labels:
CE
Quantity Per Set:
1
Breaking Capacity:
100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
Pvc Free:
Yes
Protected Poles Description:
3t
Control Type:
toggle
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Range:
PowerPact
Wire Stripping Length:
16 mm
Device Application:
distribution
Ambient Air Temperature For Operation:
-2-70 °C
Depth:
86 mm
Communication Interface:
Modbus || Ethernet
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Electrical Connection:
I-Line connection, line || lugs, load
Suitability For Isolation:
yes IEC 60947-2
