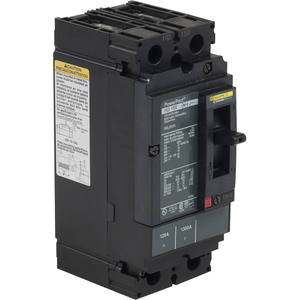

Schneider Electric HJA36090 Molded Case Circuit Breaker 600V 90A

Schneider Electric HJA36090 Molded Case Circuit Breaker 600V 90A

Schneider Electric
SKU:
HJA36090
|
UPC:
785901507246
Availability:
Contact us to confirm availability and lead times.
$2,225.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 25kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT H I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This breaker has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT H, 90A, 3 pole, circuit breaker has a breaking capacity of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Net Weight:
2.2 kg
Mounting Height:
4.5 in
Magnetic Tripping Current:
1450-1450 A
Tightening Torque:
5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
Pollution Degree:
3 IEC 60947-1
Utilisation Category:
category A
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Line Rated Current:
90-90 A
[Ics] Rated Service Breaking Capacity:
100 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 65 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 25 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Eu Rohs Directive:
Compliant with Exemptions
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Pvc Free:
Yes
Poles Description:
3P
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Sustainable Offer Status:
Green Premium product
Protected Poles Description:
3t
Product Certifications:
UL || CSA || NOM
Product Or Component Type:
circuit breaker
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Magnetic Hold Current:
800 A
Breaking Capacity Code:
J
Terminal Identifier:
AL150HD
Suitability For Isolation:
yes IEC 60947-2
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Circularity Profile:
ENVEOLI2206027EN
Quantity Per Set:
1
Ambient Air Temperature For Storage:
-50-85 °C
Height:
163 mm
Trip Unit Technology:
thermal-magnetic
Range:
PowerPact
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Color:
Black
Control Type:
toggle
Awg Gauge:
AWG 14...AWG 3/0 aluminium/copper terminal
Environmental Disclosure:
ENVPEP2206027EN
Rohs Exemption Information:
Yes
Ambient Air Temperature For Operation:
-2-70 °C
Width:
104 mm
Ip Degree Of Protection:
front cover IP40 IEC 60529
Warranty:
18 months
Mercury Free:
Yes
Quality Labels:
CE
Continuous Current Rating:
0.8
Phase Connection:
ABC
Breaking Capacity:
100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
[Ue] Rated Operational Voltage:
690 V AC 50/60 Hz IEC 60947-3
Electrical Connection:
I-Line connection, line || lugs, load
Circuit Breaker Application:
HACR rated
Mounting Mode:
I-Line bracket)
Wire Stripping Length:
16 mm
Device Application:
distribution
Network Frequency:
50/60 Hz
Local Signalling:
switched off (OFF) 1 trip indicator green)
Mounting Support:
bracket
Communication Interface:
Modbus || Ethernet
Depth:
86 mm
Product Name:
PowerPact H
