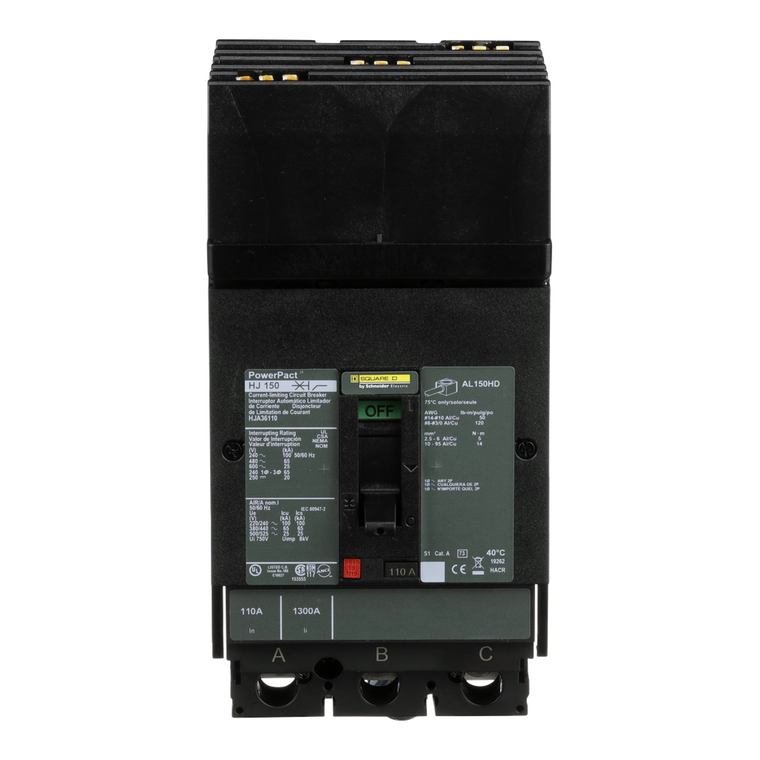

Schneider Electric HJA36110 Molded Case Circuit Breaker 600V 110A
Schneider Electric
$5,432.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 25kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT H I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This breaker has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT H, 110A, 3 pole, circuit breaker has a breaking capacity of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Device Application:
- distribution
- Net Weight:
- 2.2 kg
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Rohs Exemption Information:
- Yes
- Product Certifications:
- UL || CSA || NOM
- Environmental Disclosure:
- ENVPEP2206027EN
- Mercury Free:
- Yes
- Sustainable Offer Status:
- Green Premium product
- Magnetic Tripping Current:
- 1700-1700 A
- Electrical Connection:
- I-Line connection, line || lugs, load
- Protected Poles Description:
- 3t
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
- Height:
- 163 mm
- Depth:
- 86 mm
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- Communication Interface:
- Modbus || Ethernet
- Mounting Height:
- 4.5 in
- Suitability For Isolation:
- yes IEC 60947-2
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Warranty:
- 18 months
- Mounting Support:
- bracket
- Color:
- Black
- Magnetic Hold Current:
- 900 A
- Circularity Profile:
- ENVEOLI2206027EN
- Breaking Capacity Code:
- J
- [Ics] Rated Service Breaking Capacity:
- 100 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 65 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 25 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Breaking Capacity:
- 100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Network Frequency:
- 50/60 Hz
- Terminal Identifier:
- AL150HD
- Pollution Degree:
- 3 IEC 60947-1
- Continuous Current Rating:
- 0.8
- Quantity Per Set:
- 1
- Quality Labels:
- CE
- Poles Description:
- 3P
- Control Type:
- toggle
- Ambient Air Temperature For Storage:
- -50-85 °C
- Eu Rohs Directive:
- Compliant with Exemptions
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Circuit Breaker Application:
- HACR rated
- Phase Connection:
- ABC
- Range:
- PowerPact
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- Product Or Component Type:
- circuit breaker
- Pvc Free:
- Yes
- Product Name:
- PowerPact H
- Mounting Mode:
- I-Line bracket)
- Width:
- 104 mm
- Utilisation Category:
- category A
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Wire Stripping Length:
- 16 mm
- Line Rated Current:
- 110-110 A
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
- Trip Unit Technology:
- thermal-magnetic
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Ambient Air Temperature For Operation:
- -2-70 °C
