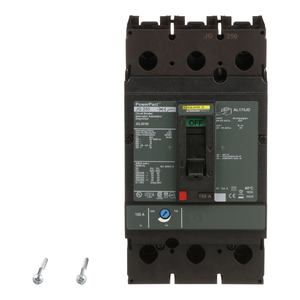

Schneider Electric HJA36150 Molded Case Circuit Breaker 600V 150A

Schneider Electric HJA36150 Molded Case Circuit Breaker 600V 150A

Schneider Electric
SKU:
HJA36150
|
UPC:
785901651543
Availability:
Contact us to confirm availability and lead times.
$5,432.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 25kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT H I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This breaker has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT H, 150A, 3 pole, circuit breaker has a breaking capacity of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Local Signalling:
switched off (OFF) 1 trip indicator green)
Pollution Degree:
3 IEC 60947-1
Protected Poles Description:
3t
Terminal Identifier:
AL150HD
Warranty:
18 months
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Ip Degree Of Protection:
front cover IP40 IEC 60529
Product Name:
PowerPact H
Circuit Breaker Application:
HACR rated
[Ics] Rated Service Breaking Capacity:
100 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 65 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 25 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Control Type:
toggle
Rohs Exemption Information:
Yes
Awg Gauge:
AWG 14...AWG 3/0 aluminium/copper terminal
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Device Application:
distribution
Quality Labels:
CE
Circularity Profile:
ENVEOLI2206027EN
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Net Weight:
2.2 kg
Utilisation Category:
category A
Line Rated Current:
150-150 A
Product Or Component Type:
circuit breaker
Mounting Mode:
I-Line bracket)
Color:
Black
Electrical Connection:
I-Line connection, line || lugs, load
Depth:
86 mm
Sustainable Offer Status:
Green Premium product
Width:
104 mm
Eu Rohs Directive:
Compliant with Exemptions
Wire Stripping Length:
16 mm
Ambient Air Temperature For Storage:
-50-85 °C
[Ue] Rated Operational Voltage:
690 V AC 50/60 Hz IEC 60947-3
Mounting Height:
4.5 in
Mercury Free:
Yes
Product Certifications:
UL || CSA || NOM
Magnetic Tripping Current:
1700-1700 A
Continuous Current Rating:
0.8
Range:
PowerPact
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Tightening Torque:
5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
Breaking Capacity Code:
J
Height:
163 mm
Phase Connection:
ABC
Communication Interface:
Modbus || Ethernet
Network Frequency:
50/60 Hz
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Breaking Capacity:
100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
Environmental Disclosure:
ENVPEP2206027EN
Pvc Free:
Yes
Magnetic Hold Current:
900 A
Suitability For Isolation:
yes IEC 60947-2
Trip Unit Technology:
thermal-magnetic
Quantity Per Set:
1
Mounting Support:
bracket
Ambient Air Temperature For Operation:
-2-70 °C
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Poles Description:
3P
