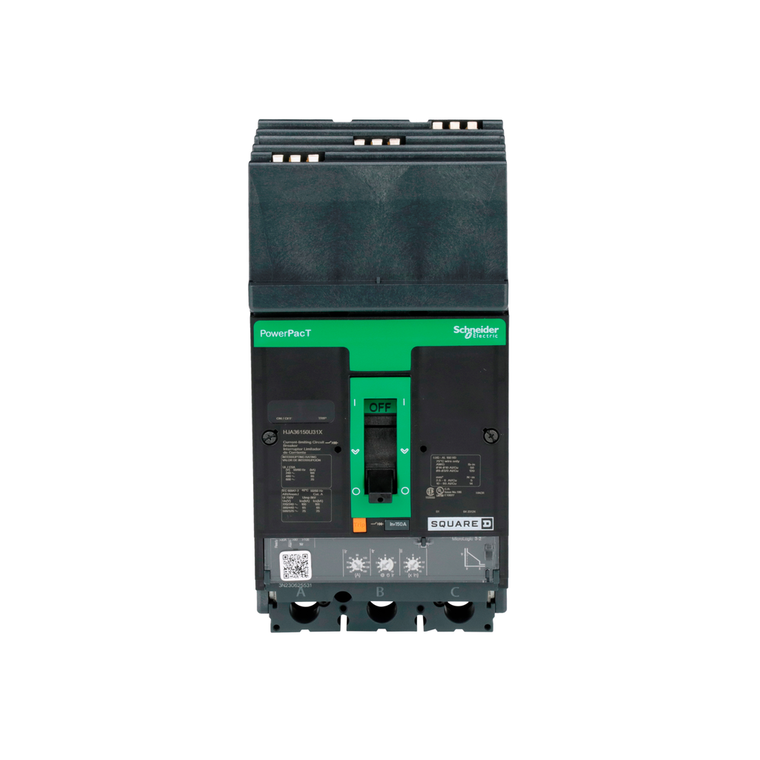

Schneider Electric HJA36150U31X Molded Case Circuit Breaker 600V 150A

Schneider Electric HJA36150U31X Molded Case Circuit Breaker 600V 150A

Schneider Electric
SKU:
HJA36150U31X
|
UPC:
785901702481
Availability:
Contact us to confirm availability and lead times.
$5,626.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides Micrologic Standard with a 3.2 trip unit and an LI function with a breaking capacity of 25kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT H I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This breaker has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT H, 150A, 3 pole, circuit breaker has a breaking capacity of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Quantity Per Set:
1
Control Type:
toggle
Trip Unit Name:
MicroLogic 3.2
Eu Rohs Directive:
Compliant with Exemptions
Ip Degree Of Protection:
front cover IP40 IEC 60529
Wire Stripping Length:
16 mm
[Ue] Rated Operational Voltage:
690 V AC 50/60 Hz IEC 60947-3
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Phase Connection:
ABC
Suitability For Isolation:
yes IEC 60947-2
Mounting Height:
4.5 in
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Line Rated Current:
150-150 A
Breaking Capacity:
100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Sustainable Offer Status:
Green Premium product
Long Time Pick-Up Adjustment Range:
0.25...1 x In
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Warranty:
18 months
Mercury Free:
Yes
Continuous Current Rating:
0.8
Mounting Mode:
I-Line bracket)
Color:
Black
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Ambient Air Temperature For Storage:
-50-85 °C
Tightening Torque:
5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
Height:
163 mm
Circularity Profile:
ENVEOLI2206028EN
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Terminal Identifier:
AL150HD
Breaking Capacity Code:
J
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Ambient Air Temperature For Operation:
-2-70 °C
Trip Unit Technology:
electronic, standard, MicroLogic 3.2, LI
Environmental Disclosure:
ENVPEP2206028EN
Pvc Free:
Yes
Communication Interface:
Modbus || Ethernet
Net Weight:
2.2 kg
Width:
104 mm
Electrical Connection:
I-Line connection, line || lugs, load
Product Or Component Type:
circuit breaker
Awg Gauge:
AWG 14...AWG 3/0 aluminium/copper terminal
Quality Labels:
CE
Local Signalling:
ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
Device Application:
distribution
Rohs Exemption Information:
Yes
Utilisation Category:
category A
Protected Poles Description:
3t
Circuit Breaker Application:
HACR rated
Mounting Support:
bracket
[Ics] Rated Service Breaking Capacity:
100 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 65 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 25 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Depth:
86 mm
Network Frequency:
50/60 Hz
Product Certifications:
UL || CSA || NOM
Pollution Degree:
3 IEC 60947-1
Poles Description:
3P
Range:
PowerPact
Product Name:
PowerPact H
