Schneider Electric HJF36020 Molded Case Circuit Breaker 600V 20A
Schneider Electric
$4,385.25
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

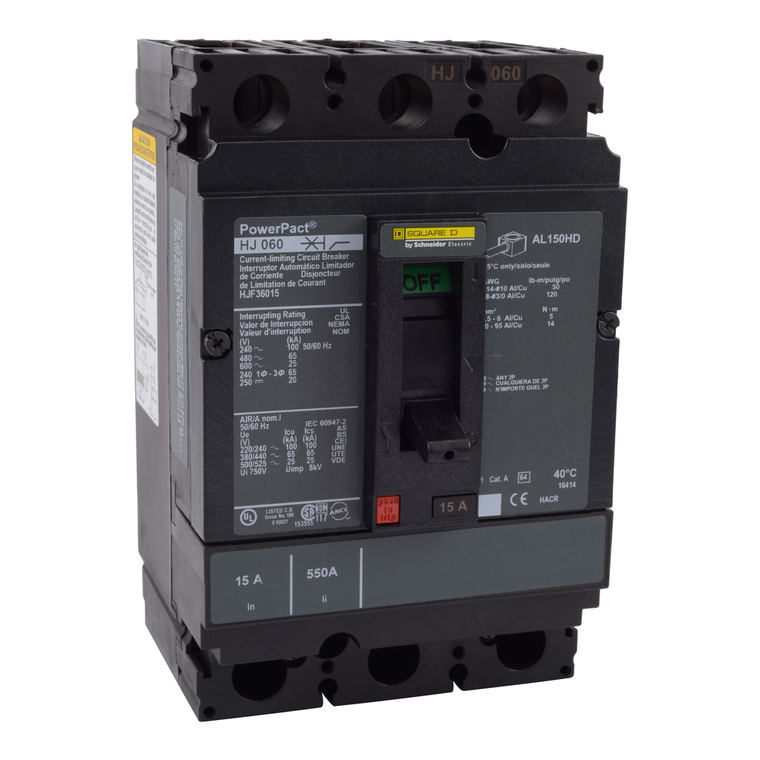

Schneider Electric HJF36020 Molded Case Circuit Breaker 600V 20A
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 25kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has a busbar connection. This PowerPacT H, 20A, 3 pole, circuit breaker has a breaking capacity of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- Warranty:
- 18 months
- Net Weight:
- 2.2 kg
- Environmental Disclosure:
- ENVPEP1311006EN
- Utilisation Category:
- category A
- Width:
- 104 mm
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
- Line Rated Current:
- 20-20 A
- Breaking Capacity:
- 100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
- Circuit Breaker Application:
- HACR rated
- Suitability For Isolation:
- yes IEC 60947-2
- Product Or Component Type:
- circuit breaker
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Eu Rohs Directive:
- Compliant
- Sustainable Offer Status:
- Green Premium product
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Communication Interface:
- Modbus || Ethernet
- Product Certifications:
- UL || CSA || NOM
- Control Type:
- toggle
- Pvc Free:
- Yes
- Depth:
- 86 mm
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Protected Poles Description:
- 3t
- Terminal Identifier:
- AL150HD
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Quantity Per Set:
- 1
- Mounting Support:
- busbar
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Poles Description:
- 3P
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- [Ics] Rated Service Breaking Capacity:
- 100 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 65 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 25 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Pollution Degree:
- 3 IEC 60947-1
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
- Device Application:
- distribution
- Ambient Air Temperature For Storage:
- -50-85 °C
- Product Name:
- PowerPact H
- Mounting Mode:
- unit mount busbar)
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Range:
- PowerPact
- Breaking Capacity Code:
- J
- Network Frequency:
- 50/60 Hz
- Trip Unit Technology:
- thermal-magnetic
- Magnetic Hold Current:
- 350 A
- Continuous Current Rating:
- 0.8
- Height:
- 163 mm
- Mercury Free:
- Yes
- Wire Stripping Length:
- 16 mm
- Magnetic Tripping Current:
- 750-750 A
- Circularity Profile:
- ENVEOLI1311006EN
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Electrical Connection:
- busbar connection, line || busbar connection, load
- Rohs Exemption Information:
- Yes
- Quality Labels:
- CE
- Color:
- Black
- Ambient Air Temperature For Operation:
- -2-70 °C
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
