Schneider Electric HJA36030M71 Motor Circuit Protector 600V 30A
Schneider Electric

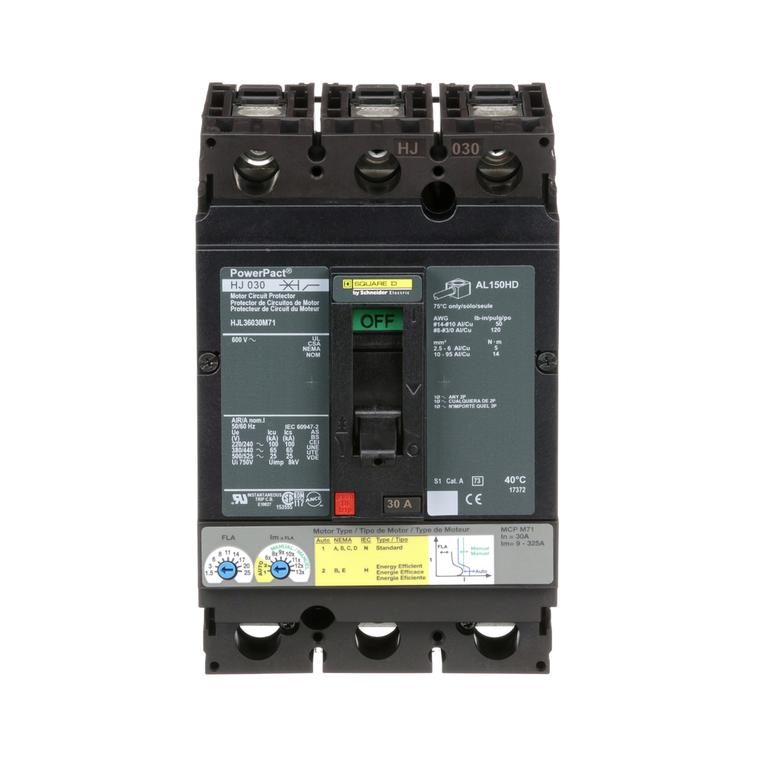

Schneider Electric HJL36030M71 Motor Circuit Protector 600V 30A
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT H-Frame motor circuit protectors (MCP) are instantaneous-trip circuit breakers designed to offer short circuit protection for motors. The unique design of the PowerPacT MCPs accommodates transient motor inrush current without nuisance tripping. These motor protectors accept the same accessories and terminals as equivalent PowerPact circuit breakers. This unit has lugs on both the line and load side. This PowerPacT H, 30A, 3 pole, motor protector has a breaking capacity of 25kA at 600VAC. PowerPact electronic Motor Circuit Protectors accept the same accessories and terminals as equivalent PowerPact circuit breakers. This breaker has lugs on both the line and load sides. This breaker has a continuous current rating of 80%. PowerPacT H motor circuit protectors comply to UL, CSA, and IEC standards and are CE marked.
- Communication Interface:
- Modbus || Ethernet
- Rohs Exemption Information:
- Yes
- Control Type:
- toggle
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Product Or Component Type:
- Motor Circuit Protector
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Quantity Per Set:
- 1
- Width:
- 104 mm
- Poles Description:
- 3P
- [Ics] Rated Service Breaking Capacity:
- 65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Circularity Profile:
- ENVEOLI2206027EN
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Trip Unit Technology:
- thermal-magnetic
- Pvc Free:
- Yes
- [Ith] Conventional Free Air Thermal Current:
- 1.5-25 A
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Magnetic Tripping Current:
- 9-325 A
- Electrical Connection:
- lugs, line || lugs, load
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Color:
- Black
- Warranty:
- 18 months
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Mercury Free:
- Yes
- Sustainable Offer Status:
- Green Premium product
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- Breaking Capacity Code:
- J
- Utilisation Category:
- category A
- Mounting Support:
- lug
- Mounting Mode:
- unit mount lug)
- Network Frequency:
- 50/60 Hz
- Depth:
- 86 mm
- Quality Labels:
- CE
- Line Rated Current:
- 30-30 A
- Product Certifications:
- UL || CSA || NOM
- Eu Rohs Directive:
- Compliant with Exemptions
- Continuous Current Rating:
- 0.8
- Range:
- PowerPact
- Pollution Degree:
- 3 IEC 60947-1
- Ambient Air Temperature For Operation:
- -2-70 °C
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
- Suitability For Isolation:
- yes IEC 60947-2
- Breaking Capacity:
- 100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
- Height:
- 163 mm
- Protected Poles Description:
- 3t
- Environmental Disclosure:
- ENVPEP2206027EN
- Ambient Air Temperature For Storage:
- -50-85 °C
- Net Weight:
- 2.2 kg
- Terminal Identifier:
- AL150HD
- Device Application:
- distribution
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Product Name:
- PowerPact H
- Wire Stripping Length:
- 16 mm
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
