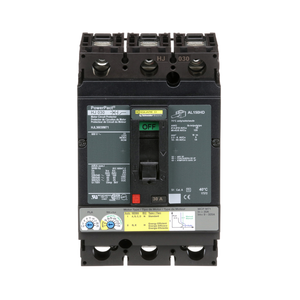

Schneider Electric HJL36030M71BC Motor Circuit Protector 600V 30A
Schneider Electric
$2,079.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT H-Frame motor circuit protectors (MCP) are instantaneous-trip circuit breakers designed to offer short circuit protection for motors. The unique design of the PowerPacT MCPs accommodates transient motor inrush current without nuisance tripping. This PowerPacT H, 30A, 3 pole, motor protector has a breaking capacity of 25kA at 600VAC. This unit has lugs on both the line and load side. These motor protectors accept the same accessories and terminals as PowerPacT H circuit breakers. This breaker has a continuous current rating of 80%. This unit includes an alarm switch. PowerPacT H motor circuit protectors comply to UL, CSA, and IEC standards and are CE marked.
- Communication Interface:
- Modbus || Ethernet
- Depth:
- 86 mm
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Wire Stripping Length:
- 16 mm
- Warranty:
- 18 months
- Terminal Identifier:
- AL150HD
- [Ith] Conventional Free Air Thermal Current:
- 1.5-25 A
- Environmental Disclosure:
- ENVPEP2206027EN
- Trip Unit Technology:
- thermal-magnetic
- Eu Rohs Directive:
- Compliant with Exemptions
- Mercury Free:
- Yes
- Product Name:
- PowerPact H
- Continuous Current Rating:
- 0.8
- Net Weight:
- 2.2 kg
- Ambient Air Temperature For Operation:
- -2-70 °C
- Electrical Connection:
- lugs, line || lugs, load
- Suitability For Isolation:
- yes IEC 60947-2
- Utilisation Category:
- category A
- Quality Labels:
- CE
- Ambient Air Temperature For Storage:
- -50-85 °C
- Poles Description:
- 3P
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Protected Poles Description:
- 3t
- Accessory / Separate Part Type:
- alarm switch 24 V AC/DC 1 NO + 1 NC cover frame
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Color:
- Black
- Rohs Exemption Information:
- Yes
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
- Sustainable Offer Status:
- Green Premium product
- Pvc Free:
- Yes
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Magnetic Tripping Current:
- 9-325 A
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Product Or Component Type:
- Motor Circuit Protector
- Height:
- 163 mm
- [Ics] Rated Service Breaking Capacity:
- 65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Pollution Degree:
- 3 IEC 60947-1
- Range:
- PowerPact
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Mounting Mode:
- unit mount lug)
- Breaking Capacity:
- 100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
- Circularity Profile:
- ENVEOLI2206027EN
- Control Type:
- toggle
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Device Application:
- distribution
- Breaking Capacity Code:
- J
- Product Certifications:
- UL || CSA || NOM
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Width:
- 104 mm
- Line Rated Current:
- 30-30 A
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
- Mounting Support:
- lug
- Network Frequency:
- 50/60 Hz
- Quantity Per Set:
- 1
