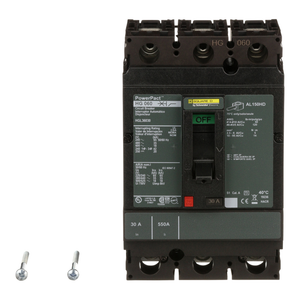

Schneider Electric HJL36030SA Molded Case Circuit Breaker 600V 30A
Schneider Electric
$5,998.50
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 25kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT H, 30A, 3 pole, circuit breaker has a breaking capacity of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80%. This unit includes a factory installed 120VAC shunt trip. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Device Application:
- distribution
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Rohs Exemption Information:
- Yes
- Circuit Breaker Application:
- HACR rated
- Network Frequency:
- 50/60 Hz
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Protected Poles Description:
- 3t
- Product Certifications:
- UL || CSA || NOM
- Net Weight:
- 2.2 kg
- Width:
- 104 mm
- Line Rated Current:
- 30-30 A
- Magnetic Hold Current:
- 350 A
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- Depth:
- 86 mm
- Terminal Identifier:
- AL150HD
- Trip Unit Technology:
- thermal-magnetic
- Poles Description:
- 3P
- Range:
- PowerPact
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Ambient Air Temperature For Storage:
- -50-85 °C
- Continuous Current Rating:
- 0.8
- Magnetic Tripping Current:
- 750-750 A
- Ambient Air Temperature For Operation:
- -2-70 °C
- Quality Labels:
- CE
- Circularity Profile:
- ENVEOLI1311006EN
- Quantity Per Set:
- 1
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Product Or Component Type:
- circuit breaker
- Environmental Disclosure:
- ENVPEP1311006EN
- Warranty:
- 18 months
- Utilisation Category:
- category A
- Control Type:
- toggle
- Electrical Connection:
- lugs, line || lugs, load
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Mercury Free:
- Yes
- Color:
- Black
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Sustainable Offer Status:
- Green Premium product
- Pvc Free:
- Yes
- [Ics] Rated Service Breaking Capacity:
- 65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Height:
- 163 mm
- Wire Stripping Length:
- 16 mm
- Pollution Degree:
- 3 IEC 60947-1
- Communication Interface:
- Modbus || Ethernet
- Breaking Capacity:
- 100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
- Breaking Capacity Code:
- J
- Mounting Support:
- lug
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Mounting Mode:
- unit mount lug)
- Product Name:
- PowerPact H
- Accessory / Separate Part Type:
- shunt trip 110...130 V AC compartment
- Suitability For Isolation:
- yes IEC 60947-2
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Eu Rohs Directive:
- Compliant
