Schneider Electric HJL36060 Molded Case Circuit Breaker 600V 60A
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 25kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT H, 60A, 3 pole, circuit breaker has a breaking capacity of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Product Certifications:
- UL || CSA || NOM
- [Ics] Rated Service Breaking Capacity:
- 65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Sustainable Offer Status:
- Green Premium product
- Circuit Breaker Application:
- HACR rated
- Terminal Identifier:
- AL150HD
- Continuous Current Rating:
- 0.8
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- Circularity Profile:
- ENVEOLI2206027EN
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Mounting Support:
- lug
- Quality Labels:
- CE
- Wire Stripping Length:
- 16 mm
- Mercury Free:
- Yes
- Range:
- PowerPact
- Color:
- Black
- Protected Poles Description:
- 3t
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Product Or Component Type:
- circuit breaker
- Product Name:
- PowerPact H
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Magnetic Tripping Current:
- 1450-1450 A
- Control Type:
- toggle
- Pvc Free:
- Yes
- Trip Unit Technology:
- thermal-magnetic
- Depth:
- 86 mm
- Ambient Air Temperature For Operation:
- -2-70 °C
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Network Frequency:
- 50/60 Hz
- Rohs Exemption Information:
- Yes
- Utilisation Category:
- category A
- Breaking Capacity Code:
- J
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
- Environmental Disclosure:
- ENVPEP2206027EN
- Width:
- 104 mm
- Line Rated Current:
- 60-60 A
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Height:
- 163 mm
- Device Application:
- distribution
- Ambient Air Temperature For Storage:
- -50-85 °C
- Communication Interface:
- Modbus || Ethernet
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Magnetic Hold Current:
- 800 A
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
- Pollution Degree:
- 3 IEC 60947-1
- Quantity Per Set:
- 1
- Mounting Mode:
- unit mount lug)
- Eu Rohs Directive:
- Compliant with Exemptions
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- Net Weight:
- 2.2 kg
- Warranty:
- 18 months
- Poles Description:
- 3P
- Breaking Capacity:
- 100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
- Electrical Connection:
- lugs, line || lugs, load
- Suitability For Isolation:
- yes IEC 60947-2
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
Related Products
-
-
Schneider Electric HJF36060U33X Molded Case Circuit Breaker 600V 60A
Schneider Electric
-
Schneider Electric HDA36060 Molded Case Circuit Breaker 600V 60A
Schneider Electric
-

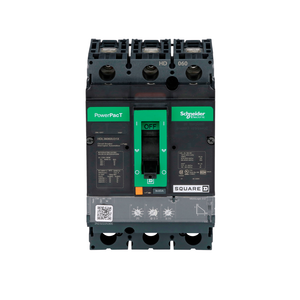

Schneider Electric HDL36060U31X Molded Case Circuit Breaker 600V 60A
