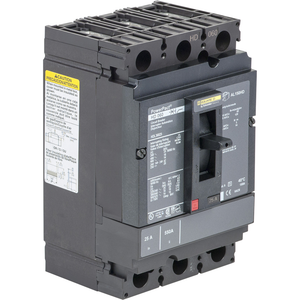

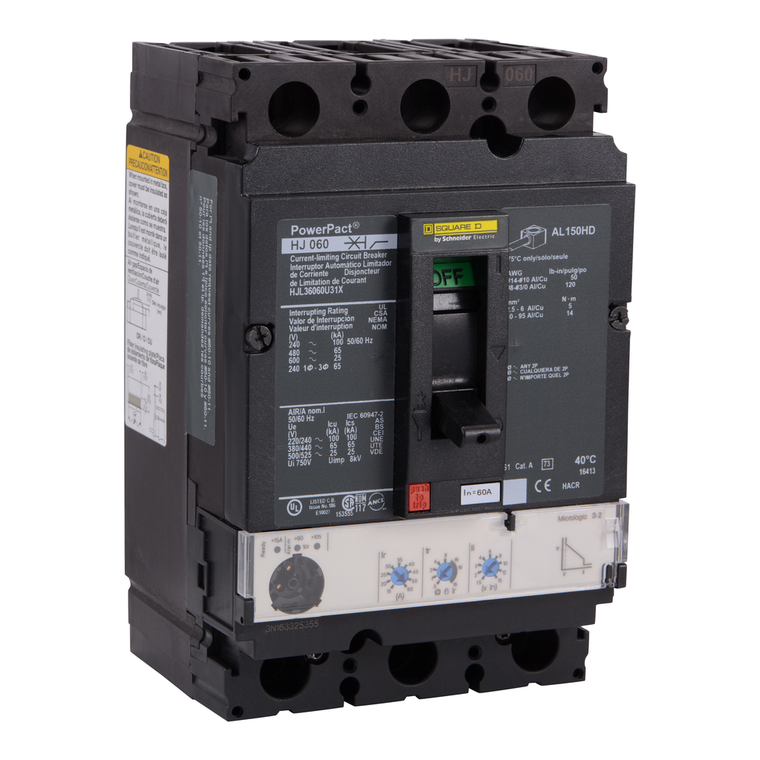

Schneider Electric HJL36060U31X Molded Case Circuit Breaker 600V 60A
Schneider Electric
$2,108.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric HJL36060U31X Molded Case Circuit Breaker 600V 60A
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides Micrologic Standard with a 3.2 trip unit and an LI function with a breaking capacity of 25kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT H, 60A, 3 pole, circuit breaker has a breaking capacity of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Warranty:
- 18 months
- Network Frequency:
- 50/60 Hz
- Width:
- 104 mm
- Control Type:
- toggle
- Color:
- Black
- Utilisation Category:
- category A
- Depth:
- 86 mm
- Suitability For Isolation:
- yes IEC 60947-2
- Quantity Per Set:
- 1
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- Pvc Free:
- Yes
- Communication Interface:
- Modbus || Ethernet
- Breaking Capacity Code:
- J
- Quality Labels:
- CE
- Local Signalling:
- ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
- Terminal Identifier:
- AL150HD
- Height:
- 163 mm
- Trip Unit Technology:
- electronic, standard, MicroLogic 3.2, LI
- Electrical Connection:
- lugs, line || lugs, load
- Mercury Free:
- Yes
- Sustainable Offer Status:
- Green Premium product
- Product Name:
- PowerPact H
- Product Certifications:
- UL || CSA || NOM
- Wire Stripping Length:
- 16 mm
- Rohs Exemption Information:
- Yes
- Poles Description:
- 3P
- Environmental Disclosure:
- ENVPEP2206028EN
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Range:
- PowerPact
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Mounting Mode:
- unit mount lug)
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Mounting Support:
- lug
- Net Weight:
- 2.2 kg
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Continuous Current Rating:
- 0.8
- Ambient Air Temperature For Storage:
- -50-85 °C
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Pollution Degree:
- 3 IEC 60947-1
- Breaking Capacity:
- 100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Product Or Component Type:
- circuit breaker
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
- Ambient Air Temperature For Operation:
- -2-70 °C
- Line Rated Current:
- 60-60 A
- Circularity Profile:
- ENVEOLI2206028EN
- Circuit Breaker Application:
- HACR rated
- Trip Unit Name:
- MicroLogic 3.2
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Long Time Pick-Up Adjustment Range:
- 0.25...1 x In
- Device Application:
- distribution
- Eu Rohs Directive:
- Compliant with Exemptions
- [Ics] Rated Service Breaking Capacity:
- 65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Protected Poles Description:
- 3t
