Schneider Electric HJL36100M73AB Motor Circuit Protector 600V 100A
Schneider Electric
$2,240.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric HJL36100M73AB Motor Circuit Protector 600V 100A

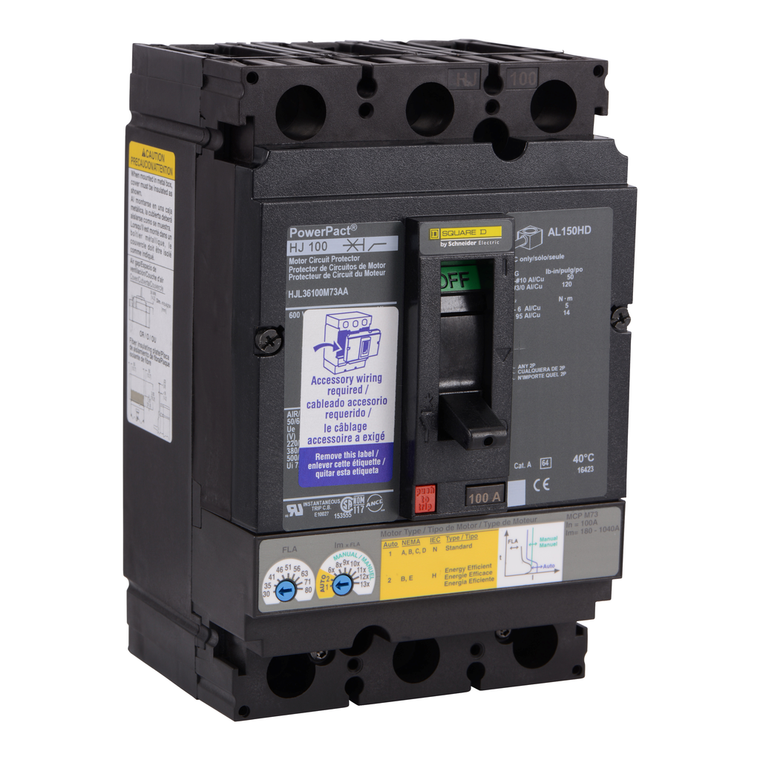

PowerPacT H-Frame motor circuit protectors (MCP) are instantaneous-trip circuit breakers designed to offer short circuit protection for motors. The unique design of the PowerPacT MCPs accommodates transient motor inrush current without nuisance tripping. This PowerPacT H, 100A, 3 pole, motor protector has a breaking capacity of 25kA at 600VAC. This unit has lugs on both the line and load side. These motor protectors accept the same accessories and terminals as PowerPacT H circuit breakers. This breaker has a continuous current rating of 80%. This unit includes a factory installed 2A/2B auxiliary switch. PowerPacT H motor circuit protectors comply to UL, CSA, and IEC standards and are CE marked.
- [Ics] Rated Service Breaking Capacity:
- 65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Width:
- 104 mm
- Warranty:
- 18 months
- Trip Unit Technology:
- thermal-magnetic
- Depth:
- 86 mm
- Poles Description:
- 3P
- [Ith] Conventional Free Air Thermal Current:
- 30-80 A
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Product Or Component Type:
- Motor Circuit Protector
- Breaking Capacity:
- 100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
- Product Certifications:
- UL || CSA || NOM
- Network Frequency:
- 50/60 Hz
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Breaking Capacity Code:
- J
- Device Application:
- distribution
- Suitability For Isolation:
- yes IEC 60947-2
- Accessory / Separate Part Type:
- auxiliary switch 24 V AC/DC 2 NO + 2 NC cover frame
- Magnetic Tripping Current:
- 180-1040 A
- Product Name:
- PowerPact H
- Circularity Profile:
- ENVEOLI2206027EN
- Height:
- 163 mm
- Environmental Disclosure:
- ENVPEP2206027EN
- Range:
- PowerPact
- Communication Interface:
- Modbus || Ethernet
- Net Weight:
- 2.2 kg
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Pollution Degree:
- 3 IEC 60947-1
- Electrical Connection:
- lugs, line || lugs, load
- Ambient Air Temperature For Storage:
- -50-85 °C
- Utilisation Category:
- category A
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Color:
- Black
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Eu Rohs Directive:
- Compliant with Exemptions
- Mounting Support:
- lug
- Protected Poles Description:
- 3t
- Wire Stripping Length:
- 16 mm
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- Sustainable Offer Status:
- Green Premium product
- Continuous Current Rating:
- 0.8
- Quality Labels:
- CE
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Terminal Identifier:
- AL150HD
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Quantity Per Set:
- 1
- Ambient Air Temperature For Operation:
- -2-70 °C
- Pvc Free:
- Yes
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
- Control Type:
- toggle
- Mounting Mode:
- unit mount lug)
- Mercury Free:
- Yes
- Rohs Exemption Information:
- Yes
- Line Rated Current:
- 100-100 A
