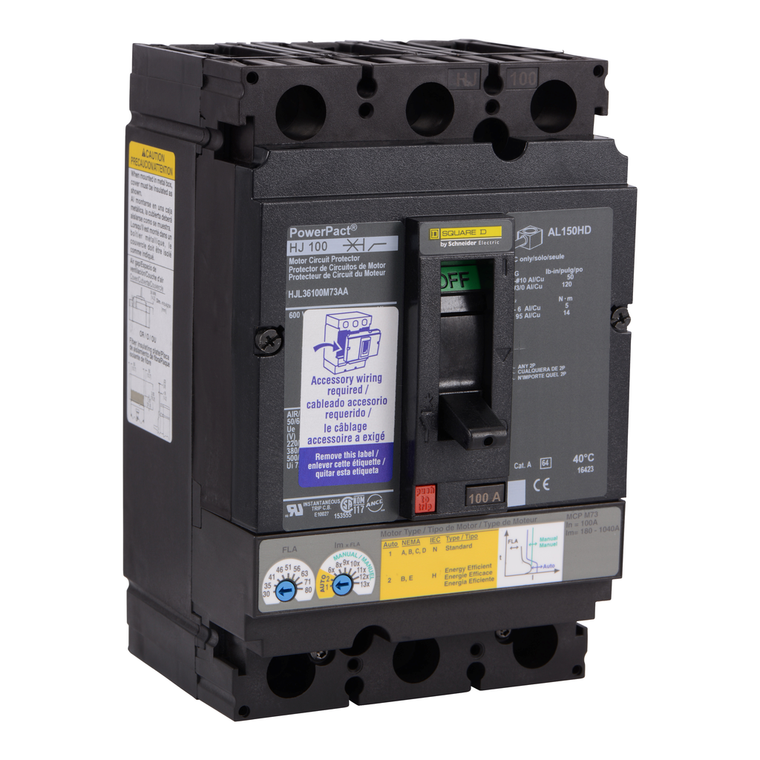

Schneider Electric HJL36100M73SA Motor Circuit Protector 600V 100A

(No reviews yet) Write a Review

Write a Review

Schneider Electric HJL36100M73SA Motor Circuit Protector 600V 100A

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

HJL36100M73SA

UPC:

7.85902E+11

MPN:

Condition:

New

Circularity Profile:

ENVEOLI2206027EN

Quality Labels:

CE

Line Rated Current:

100-100 A

Utilisation Category:

category A

Pvc Free:

Yes

Suitability For Isolation:

yes IEC 60947-2

Number Of Slots:

2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)

Ambient Air Temperature For Storage:

-50-85 °C

[Ics] Rated Service Breaking Capacity:

65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2

Ip Degree Of Protection:

front cover IP40 IEC 60529

Range:

PowerPact

Trip Unit Technology:

thermal-magnetic

Warranty:

18 months

Awg Gauge:

AWG 14...AWG 3/0 aluminium/copper terminal

Breaking Capacity:

100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489

Rohs Exemption Information:

Yes

Network Frequency:

50/60 Hz

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Communication Interface:

Modbus || Ethernet

Height:

163 mm

Tightening Torque:

5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)

Terminal Identifier:

AL150HD

California Proposition 65:

WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information

Electrical Connection:

lugs, line || lugs, load

Mounting Support:

lug

Magnetic Tripping Current:

180-1040 A

Accessory / Separate Part Type:

shunt trip 110...130 V AC compartment

[Ith] Conventional Free Air Thermal Current:

30-80 A

Depth:

86 mm

Operating Altitude:

< 6561.68 ft (2000 m) without derating || 5000 m with derating

Product Name:

PowerPact H

Mercury Free:

Yes

Net Weight:

2.2 kg

Width:

104 mm

Product Or Component Type:

Motor Circuit Protector

Protected Poles Description:

3t

Breaking Capacity Code:

J

Mounting Mode:

unit mount lug)

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Product Certifications:

UL || CSA || NOM

Environmental Disclosure:

ENVPEP2206027EN

[Ui] Rated Insulation Voltage:

750 V IEC 60947-2

[Ue] Rated Operational Voltage:

690 V AC 50/60 Hz IEC 60947-3

Color:

Black

Sustainable Offer Status:

Green Premium product

Pollution Degree:

3 IEC 60947-1

Poles Description:

3P

Wire Stripping Length:

16 mm

Control Type:

toggle

Standards:

UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2

Ambient Air Temperature For Operation:

-2-70 °C

Device Application:

distribution

[Uimp] Rated Impulse Withstand Voltage:

8 kV IEC 60947-2

Eu Rohs Directive:

Compliant with Exemptions

Quantity Per Set:

1

Continuous Current Rating:

0.8
