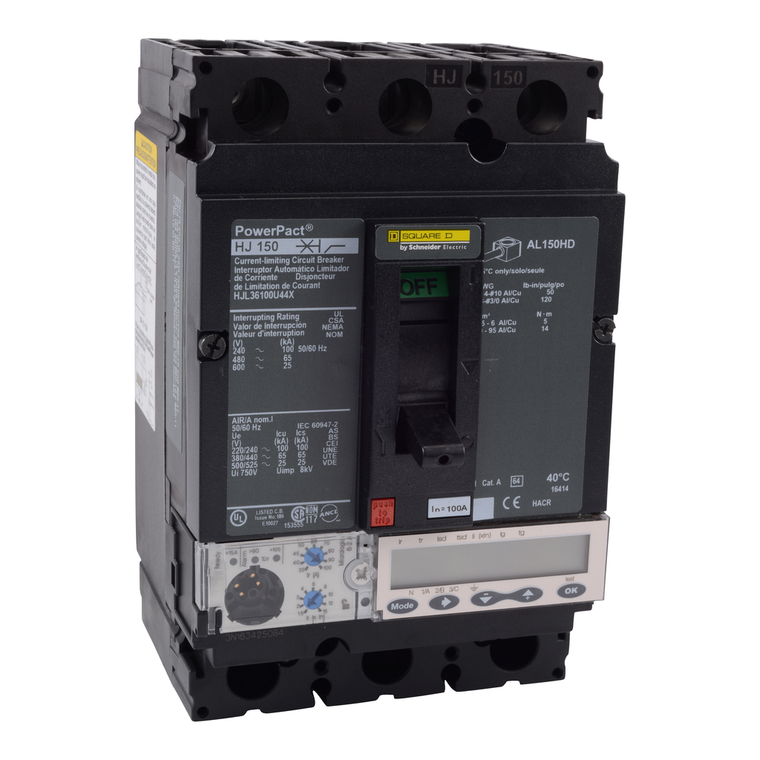

Schneider Electric HJL36100U44X Molded Case Circuit Breaker 600V 100A

Schneider Electric HJL36100U44X Molded Case Circuit Breaker 600V 100A

Schneider Electric
SKU:
HJL36100U44X
|
UPC:
3606486282137
Availability:
Contact us to confirm availability and lead times.
$3,762.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides Micrologic Ammeter with a 6.2A trip unit and an LSIG function with a breaking capacity of 25kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT H, 100A, 3 pole, circuit breaker has a breaking capacity of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Environmental Disclosure:
ENVPEP2206028EN
Device Application:
distribution
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Sustainable Offer Status:
Green Premium product
Breaking Capacity Code:
J
Breaking Capacity:
100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
Poles Description:
3P
Warranty:
18 months
Wire Stripping Length:
16 mm
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Awg Gauge:
AWG 14...AWG 3/0 aluminium/copper terminal
Quantity Per Set:
1
Product Or Component Type:
circuit breaker
Trip Unit Technology:
electronic, ammeter, MicroLogic 6.2 A, LSIG
[Ue] Rated Operational Voltage:
690 V AC 50/60 Hz IEC 60947-3
Ambient Air Temperature For Operation:
-2-70 °C
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Terminal Identifier:
AL150HD
Mercury Free:
Yes
Mounting Mode:
unit mount lug)
[Ics] Rated Service Breaking Capacity:
65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Local Signalling:
ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Net Weight:
2.2 kg
Network Frequency:
50/60 Hz
Suitability For Isolation:
yes IEC 60947-2
Ip Degree Of Protection:
front cover IP40 IEC 60529
Width:
104 mm
Communication Interface:
Modbus || Ethernet
Circularity Profile:
ENVEOLI2206028EN
Electrical Connection:
lugs, line || lugs, load
Depth:
86 mm
Trip Unit Name:
MicroLogic 6.2 A
Line Rated Current:
100-100 A
Ambient Air Temperature For Storage:
-50-85 °C
Pollution Degree:
3 IEC 60947-1
Utilisation Category:
category A
Long Time Pick-Up Adjustment Range:
0.25...1 x In
Color:
Black
Tightening Torque:
5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
Range:
PowerPact
Quality Labels:
CE
Circuit Breaker Application:
HACR rated
Pvc Free:
Yes
Continuous Current Rating:
0.8
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Control Type:
toggle
Protected Poles Description:
3t
Height:
163 mm
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Rohs Exemption Information:
Yes
Mounting Support:
lug
Product Name:
PowerPact H
Product Certifications:
UL || CSA || NOM
Eu Rohs Directive:
Compliant with Exemptions
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Brochure:
View
