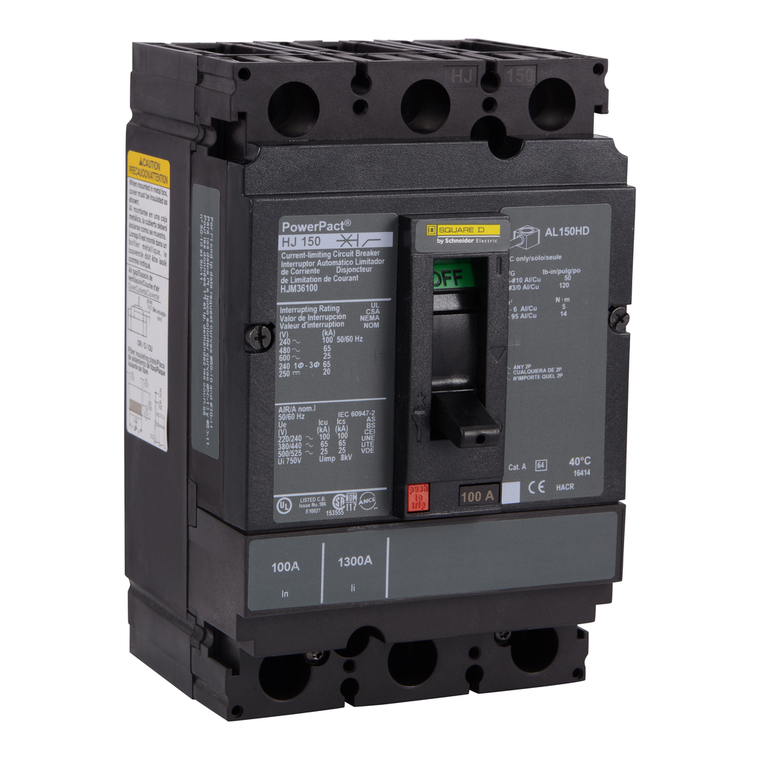

Schneider Electric HJM36100 Molded Case Circuit Breaker 600V 100A
Schneider Electric
$3,148.50
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 25kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on the line and terminal nuts on the load side. This PowerPacT H, 100A, 3 pole, circuit breaker has a breaking capacity of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Protected Poles Description:
- 3t
- Quantity Per Set:
- 1
- Communication Interface:
- Modbus || Ethernet
- Mercury Free:
- Yes
- Breaking Capacity Code:
- J
- Range:
- PowerPact
- Magnetic Tripping Current:
- 1700-1700 A
- Trip Unit Technology:
- thermal-magnetic
- Circularity Profile:
- ENVEOLI2206027EN
- Control Type:
- toggle
- Net Weight:
- 2.2 kg
- Utilisation Category:
- category A
- Mounting Mode:
- unit mount lug)
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Line Rated Current:
- 100-100 A
- Terminal Identifier:
- AL150HD
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
- Sustainable Offer Status:
- Green Premium product
- Mounting Support:
- lug
- [Ics] Rated Service Breaking Capacity:
- 65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Wire Stripping Length:
- 16 mm
- Network Frequency:
- 50/60 Hz
- Poles Description:
- 3P
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Product Certifications:
- UL || CSA || NOM
- Warranty:
- 18 months
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Depth:
- 86 mm
- Magnetic Hold Current:
- 900 A
- Circuit Breaker Application:
- HACR rated
- Rohs Exemption Information:
- Yes
- Pvc Free:
- Yes
- Continuous Current Rating:
- 0.8
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Breaking Capacity:
- 100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
- Product Name:
- PowerPact H
- Ambient Air Temperature For Storage:
- -50-85 °C
- Quality Labels:
- CE
- Device Application:
- distribution
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Electrical Connection:
- lugs, line || terminal nut, load
- Environmental Disclosure:
- ENVPEP2206027EN
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- Suitability For Isolation:
- yes IEC 60947-2
- Ambient Air Temperature For Operation:
- -2-70 °C
- Width:
- 104 mm
- Height:
- 163 mm
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Color:
- Black
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Eu Rohs Directive:
- Compliant with Exemptions
- Pollution Degree:
- 3 IEC 60947-1
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Product Or Component Type:
- circuit breaker
