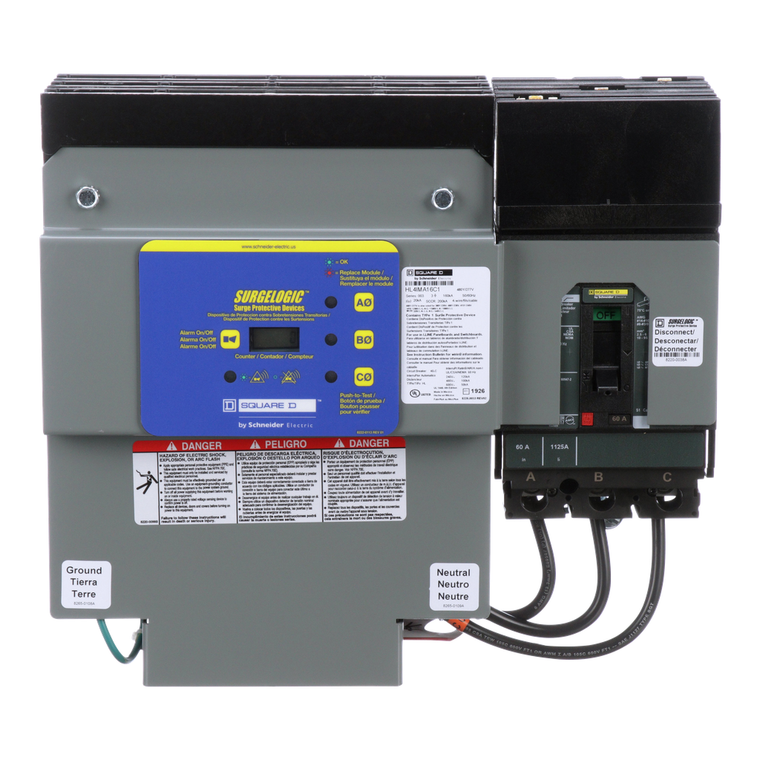

Schneider Electric HL4IMA16C1 Spdt1Hli-Line160Ka480Y/277V3P4W

Schneider Electric HL4IMA16C1 Spdt1Hli-Line160Ka480Y/277V3P4W

Schneider Electric
SKU:
HL4IMA16C1
|
UPC:
785901072140
Availability:
Factory stock
$11,396.23
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
Surgelogic Type IMA systems are internal surgical protection devices with a focus on service entrance and critical branch panel surge suppresion. With a surge current rating of 160,000 Amps and enhanced EMI/RFI filtering, this unit is retrofitted to be installed in a wide variety I-Line Branch units. Being modular in design, this unit is able to achieve superior surge suppression on the line side without an external overcurrent protective device. This unit uses the WYE system to allow two different voltages using three phase. This product is UL and CSA certified.
Additional Information
Surge Current:
160 kA
Depth:
142.1 mm
[Ue] Rated Operational Voltage:
480Y/277 V AC
Number Of Poles:
3
Eu Rohs Directive:
Compliant with Exemptions
Breaking Capacity:
50 kA
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Breaking Capacity Code:
HL
Provided Equipment:
alarm enable/disable switch || surge counter || circuit-breaker
Mounting Support:
panel mounting
Rohs Exemption Information:
Yes
Phase:
3 phase
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Wiring Configuration:
4-wire
Local Signalling:
status LED green per phase normal operation || status LED red per phase fault
Nema Degree Of Protection:
NEMA 1
Height:
308.9 mm
Product Or Component Type:
surge protection device
[Uc] Maximum Continuous Operating Voltage:
320 V
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Line Rated Current:
60 A
Standards:
UL 1449:ed. 3 || CSA C22.2 No 8:1986 || UL 96A:ed. 12 || UL 489:ed. 11 || CSA C22.2 No 5-09
Trip Unit Technology:
thermal-magnetic
Device Short Name:
IMA
Range Of Product:
Surgelogic
Width:
341.9 mm
Connections - Terminals:
I-Line line || lugs ground AWG 6 copper 4 N.m || lugs neutral AWG 6 copper 4 N.m
Cable Length:
483 mm
Short-Circuit Protection:
200 kA
Datasheet:
View
