Schneider Electric HLA36025 Molded Case Circuit Breaker 600V 25A
Schneider Electric
$2,993.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

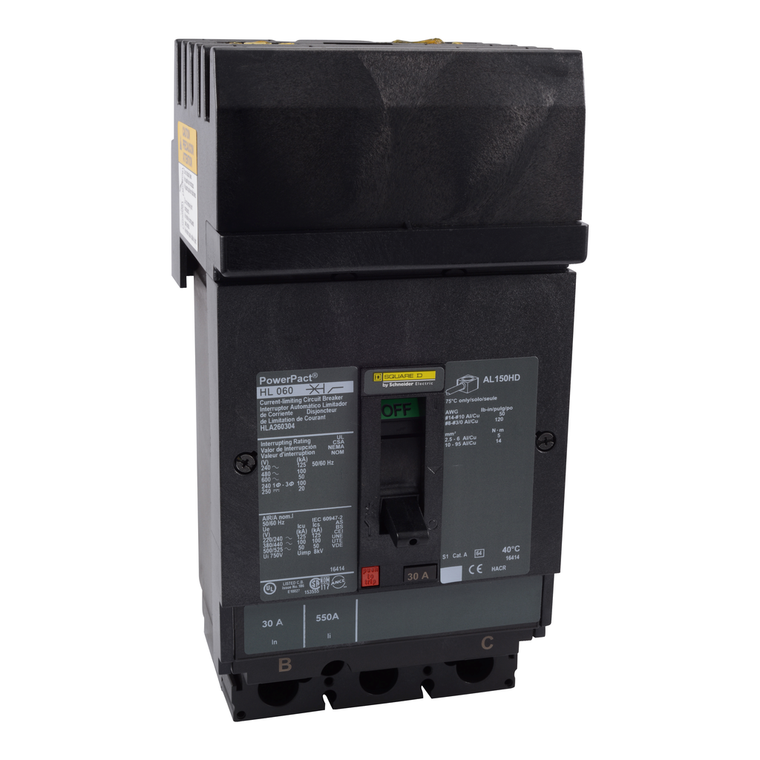

Schneider Electric HLA36025 Molded Case Circuit Breaker 600V 25A
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 50kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT H I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This breaker has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT H, 25A, 3 pole, circuit breaker has a breaking capacity of 50kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Circularity Profile:
- ENVEOLI2206027EN
- Mounting Mode:
- I-Line bracket)
- Wire Stripping Length:
- 16 mm
- Mounting Support:
- bracket
- Phase Connection:
- ABC
- Breaking Capacity:
- 125 kA 240 V AC 50/60 Hz UL 489 || 100 kA 480 V AC 50/60 Hz UL 489 || 50 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 50 kA 500 V DC UL 489
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Pollution Degree:
- 3 IEC 60947-1
- Magnetic Hold Current:
- 350 A
- Poles Description:
- 3P
- Magnetic Tripping Current:
- 750-750 A
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- [Ics] Rated Service Breaking Capacity:
- 125 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 100 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 50 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Product Or Component Type:
- circuit breaker
- Network Frequency:
- 50/60 Hz
- Breaking Capacity Code:
- L
- Protected Poles Description:
- 3t
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- Mounting Height:
- 4.5 in
- Terminal Identifier:
- AL150HD
- Mercury Free:
- Yes
- Control Type:
- toggle
- Width:
- 104 mm
- Height:
- 163 mm
- Continuous Current Rating:
- 0.8
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Product Certifications:
- UL || CSA || NOM
- Quantity Per Set:
- 1
- Utilisation Category:
- category A
- Ambient Air Temperature For Operation:
- -2-70 °C
- Rohs Exemption Information:
- Yes
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Environmental Disclosure:
- ENVPEP2206027EN
- Eu Rohs Directive:
- Compliant with Exemptions
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Line Rated Current:
- 25-25 A
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
- Communication Interface:
- Modbus || Ethernet
- Net Weight:
- 2.2 kg
- Depth:
- 86 mm
- Pvc Free:
- Yes
- Electrical Connection:
- I-Line connection, line || lugs, load
- Sustainable Offer Status:
- Green Premium product
- Ambient Air Temperature For Storage:
- -50-85 °C
- Color:
- Black
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
- Device Application:
- distribution
- Local Signalling:
- switched off (OFF) 1 trip indicator green)
- Range:
- PowerPact
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Warranty:
- 18 months
- Quality Labels:
- CE
- Product Name:
- PowerPact H
- Suitability For Isolation:
- yes IEC 60947-2
- Circuit Breaker Application:
- HACR rated
- Trip Unit Technology:
- thermal-magnetic
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
