Schneider Electric HLA36060U31X Molded Case Circuit Breaker 600V 60A
Schneider Electric
$3,173.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

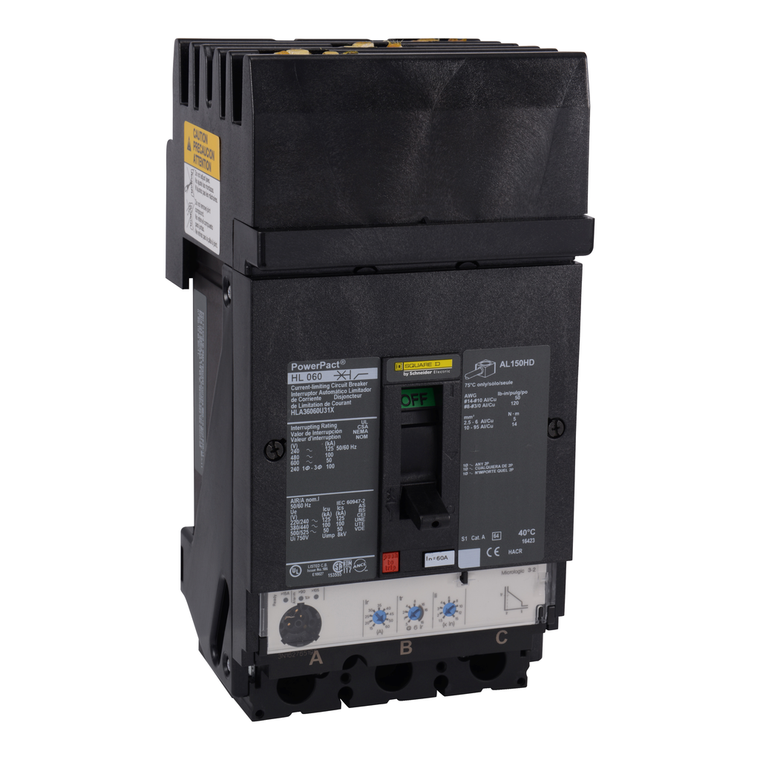

Schneider Electric HLA36060U31X Molded Case Circuit Breaker 600V 60A
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides Micrologic Standard with a 3.2 trip unit and an LI function with a breaking capacity of 50kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT H I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This breaker has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT H, 60A, 3 pole, circuit breaker has a breaking capacity of 50kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Product Or Component Type:
- circuit breaker
- Poles Description:
- 3P
- Circuit Breaker Application:
- HACR rated
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Wire Stripping Length:
- 16 mm
- Mercury Free:
- Yes
- Color:
- Black
- Environmental Disclosure:
- ENVPEP2206028EN
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Protected Poles Description:
- 3t
- Breaking Capacity Code:
- L
- Circularity Profile:
- ENVEOLI2206028EN
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Pollution Degree:
- 3 IEC 60947-1
- Trip Unit Name:
- MicroLogic 3.2
- Utilisation Category:
- category A
- Quality Labels:
- CE
- Product Certifications:
- UL || CSA || NOM
- Phase Connection:
- ABC
- Quantity Per Set:
- 1
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Long Time Pick-Up Adjustment Range:
- 0.25...1 x In
- Depth:
- 86 mm
- Pvc Free:
- Yes
- Sustainable Offer Status:
- Green Premium product
- Device Application:
- distribution
- Rohs Exemption Information:
- Yes
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Mounting Height:
- 4.5 in
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
- Terminal Identifier:
- AL150HD
- Warranty:
- 18 months
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
- Ambient Air Temperature For Operation:
- -2-70 °C
- Net Weight:
- 2.2 kg
- Suitability For Isolation:
- yes IEC 60947-2
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Width:
- 104 mm
- Control Type:
- toggle
- Electrical Connection:
- I-Line connection, line || lugs, load
- Trip Unit Technology:
- electronic, standard, MicroLogic 3.2, LI
- Mounting Support:
- bracket
- [Ics] Rated Service Breaking Capacity:
- 125 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 100 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 50 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Breaking Capacity:
- 125 kA 240 V AC 50/60 Hz UL 489 || 100 kA 480 V AC 50/60 Hz UL 489 || 50 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 50 kA 500 V DC UL 489
- Eu Rohs Directive:
- Compliant with Exemptions
- Product Name:
- PowerPact H
- Continuous Current Rating:
- 0.8
- Ambient Air Temperature For Storage:
- -50-85 °C
- Line Rated Current:
- 60-60 A
- Range:
- PowerPact
- Local Signalling:
- ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
- Network Frequency:
- 50/60 Hz
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- Mounting Mode:
- I-Line bracket)
- Height:
- 163 mm
- Communication Interface:
- Modbus || Ethernet
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
