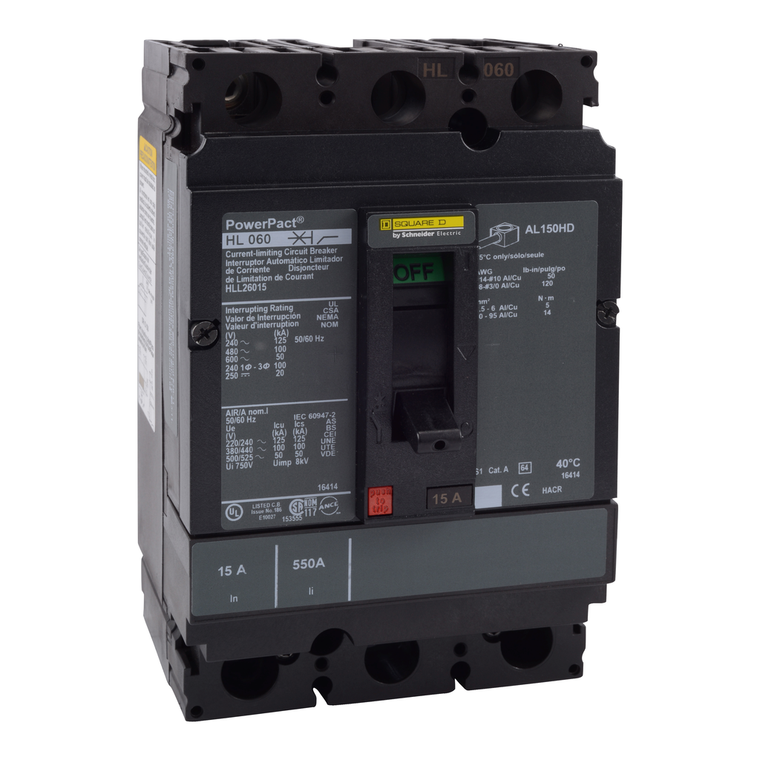

Schneider Electric HLL26015 Molded Case Circuit Breaker 600V 15A

Schneider Electric HLL26015 Molded Case Circuit Breaker 600V 15A

Schneider Electric
SKU:
HLL26015
|
UPC:
785901659174
Availability:
Factory stock
$4,967.12
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 50kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT H, 15A, 2 pole, circuit breaker has a breaking capacity of 50kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Poles Description:
2P
Wire Stripping Length:
16 mm
Control Type:
toggle
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Network Frequency:
50/60 Hz
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Warranty:
18 months
Local Signalling:
switched off (OFF) 1 trip indicator green)
Color:
Black
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Range:
PowerPact
Product Or Component Type:
circuit breaker
Magnetic Tripping Current:
750-750 A
Pollution Degree:
3 IEC 60947-1
Device Application:
distribution
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Product Name:
PowerPact H
[Ue] Rated Operational Voltage:
690 V AC 50/60 Hz IEC 60947-3
[Ics] Rated Service Breaking Capacity:
125 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 100 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 50 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Product Certifications:
UL || CSA || NOM
Awg Gauge:
AWG 14...AWG 3/0 aluminium/copper terminal
Environmental Disclosure:
ENVPEP2206027EN
Quantity Per Set:
1
Breaking Capacity:
125 kA 240 V AC 50/60 Hz UL 489 || 100 kA 480 V AC 50/60 Hz UL 489 || 50 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 50 kA 500 V DC UL 489
Mercury Free:
Yes
Width:
104 mm
Ip Degree Of Protection:
front cover IP40 IEC 60529
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Breaking Capacity Code:
L
Utilisation Category:
category A
Height:
163 mm
Sustainable Offer Status:
Green Premium product
Quality Labels:
CE
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Eu Rohs Directive:
Compliant with Exemptions
Circuit Breaker Application:
HACR rated
Pvc Free:
Yes
Communication Interface:
Modbus || Ethernet
Suitability For Isolation:
yes IEC 60947-2
Ambient Air Temperature For Operation:
-2-70 °C
Protected Poles Description:
2t
Circularity Profile:
ENVEOLI2206027EN
Line Rated Current:
15-15 A
Magnetic Hold Current:
350 A
Electrical Connection:
lugs, line || lugs, load
Tightening Torque:
5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
Net Weight:
2.2 kg
Rohs Exemption Information:
Yes
Mounting Support:
lug
Terminal Identifier:
AL150HD
Depth:
86 mm
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Ambient Air Temperature For Storage:
-50-85 °C
Mounting Mode:
unit mount lug)
Trip Unit Technology:
thermal-magnetic
Continuous Current Rating:
0.8
