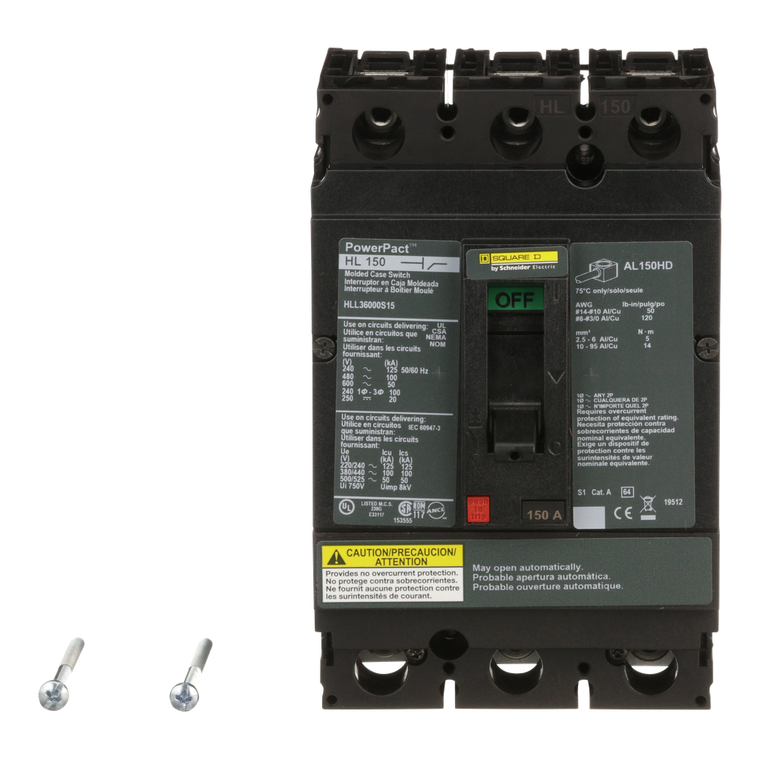

Schneider Electric HLL36000S15 Automatic Molded Case Switch 600V 150A

Schneider Electric HLL36000S15 Automatic Molded Case Switch 600V 150A

Schneider Electric
SKU:
HLL36000S15
|
UPC:
785901683186
Availability:
Contact us to confirm availability and lead times.
$1,988.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT H-Frame automatic switches are a disconnect device and can be used to open and close a circuit under normal operating conditions. The automatic switches are similar in construction, use the same accessories, and offer the same connection possibilities as the H-Frame circuit breaker version. The switches have a factory set, nonadjustable trip point calibrated to protect the molded case switch. The automatic switch can make and break its rated current. For an overload or a short circuit, it must be protected by an upstream device. PowerPacT H-Frame switches are available in unit mount, I-Line, plug-in, or drawout versions. This switch is unit mount and has lugs on both line and load sides. This PowerPacT H, 150A, 3 pole, automatic switch has a short circuit withstand current rating of 50kA at 600VAC. PowerPacT H automatic switches comply to UL and CSA standards.
Additional Information
Circularity Profile:
ENVEOLI2206027EN
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Line Rated Current:
150 A
Product Certifications:
CE || IEC || CCC || CSA || NMX || UL Listed
Electrical Connection:
lugs, line || lugs, load
Environmental Disclosure:
ENVPEP2206027EN
Sustainable Offer Status:
Green Premium product
Breaking Capacity Code:
L
Eu Rohs Directive:
Compliant with Exemptions
Magnetic Tripping Current:
2250-2250 A
Pvc Free:
Yes
Short-Circuit Withstand:
125 kA 240 V UL 489 || 100 kA 480 V UL 489 || 50 kA 600 V UL 489
Product Or Component Type:
automatic switch
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Range Of Product:
PowerPact H
Mercury Free:
Yes
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Poles Description:
3P
Mounting Mode:
unit mount
Rohs Exemption Information:
Yes
[Ue] Rated Operational Voltage:
600 V AC || 250 V DC
Tightening Torque:
5-5 N.m 2.5-95 mm² (AWG 14...AWG 3/0)
Awg Gauge:
x AWG 14...AWG 3/0 ( aluminium/copper )
Height:
6.4 in
Width:
2.12 in
Trip Unit Technology:
magnetic
Warranty:
18 months
Depth:
4.36 in
Terminal Identifier:
AL150HD
