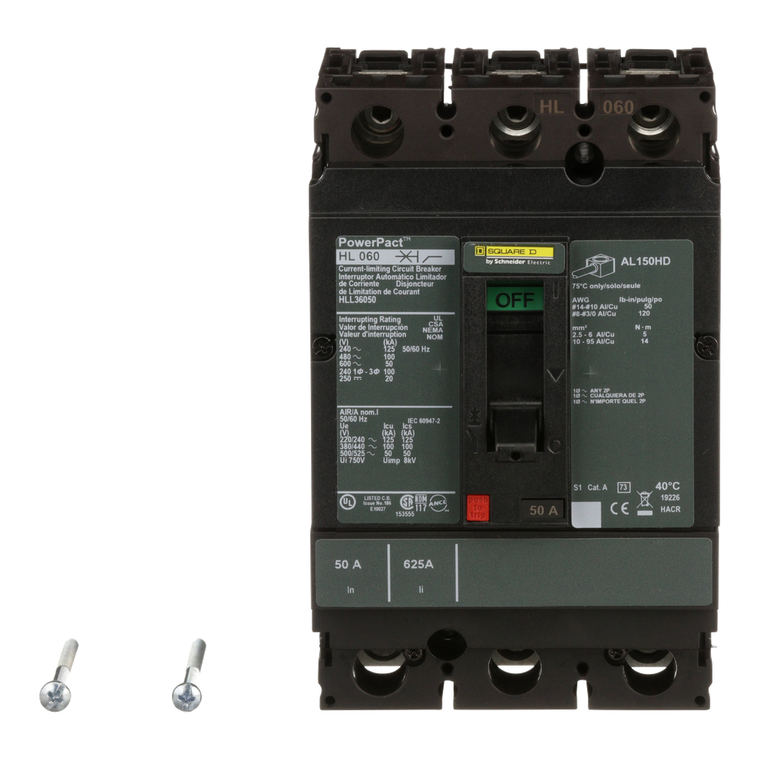

Schneider Electric HLL36050 Molded Case Circuit Breaker 600V 50A

Schneider Electric HLL36050 Molded Case Circuit Breaker 600V 50A

Schneider Electric
SKU:
HLL36050
|
UPC:
785901683155
Availability:
Contact us to confirm availability and lead times.
$2,849.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 50kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT H, 50A, 3 pole, circuit breaker has a breaking capacity of 50kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Breaking Capacity Code:
L
Mercury Free:
Yes
Circuit Breaker Application:
HACR rated
Line Rated Current:
50-50 A
Communication Interface:
Modbus || Ethernet
Pollution Degree:
3 IEC 60947-1
Awg Gauge:
AWG 14...AWG 3/0 aluminium/copper terminal
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Control Type:
toggle
Utilisation Category:
category A
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Ip Degree Of Protection:
front cover IP40 IEC 60529
Terminal Identifier:
AL150HD
Suitability For Isolation:
yes IEC 60947-2
Wire Stripping Length:
16 mm
Magnetic Hold Current:
400 A
Continuous Current Rating:
0.8
Product Or Component Type:
circuit breaker
Width:
104 mm
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Sustainable Offer Status:
Green Premium product
Network Frequency:
50/60 Hz
Color:
Black
Local Signalling:
switched off (OFF) 1 trip indicator green)
Protected Poles Description:
3t
Mounting Support:
lug
Quantity Per Set:
1
Pvc Free:
Yes
Poles Description:
3P
Magnetic Tripping Current:
850-850 A
Product Certifications:
UL || CSA || NOM
Height:
163 mm
Circularity Profile:
ENVEOLI2206027EN
Depth:
86 mm
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Electrical Connection:
lugs, line || lugs, load
Range:
PowerPact
Environmental Disclosure:
ENVPEP2206027EN
Net Weight:
2.2 kg
Trip Unit Technology:
thermal-magnetic
Mounting Mode:
unit mount lug)
Warranty:
18 months
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Breaking Capacity:
125 kA 240 V AC 50/60 Hz UL 489 || 100 kA 480 V AC 50/60 Hz UL 489 || 50 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 50 kA 500 V DC UL 489
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Device Application:
distribution
Ambient Air Temperature For Operation:
-2-70 °C
[Ics] Rated Service Breaking Capacity:
125 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 100 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 50 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Tightening Torque:
5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
Rohs Exemption Information:
Yes
Quality Labels:
CE
Ambient Air Temperature For Storage:
-50-85 °C
Product Name:
PowerPact H
Eu Rohs Directive:
Compliant with Exemptions
[Ue] Rated Operational Voltage:
690 V AC 50/60 Hz IEC 60947-3
