Schneider Electric HLL36060U31X Molded Case Circuit Breaker 600V 60A
Schneider Electric
$3,008.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

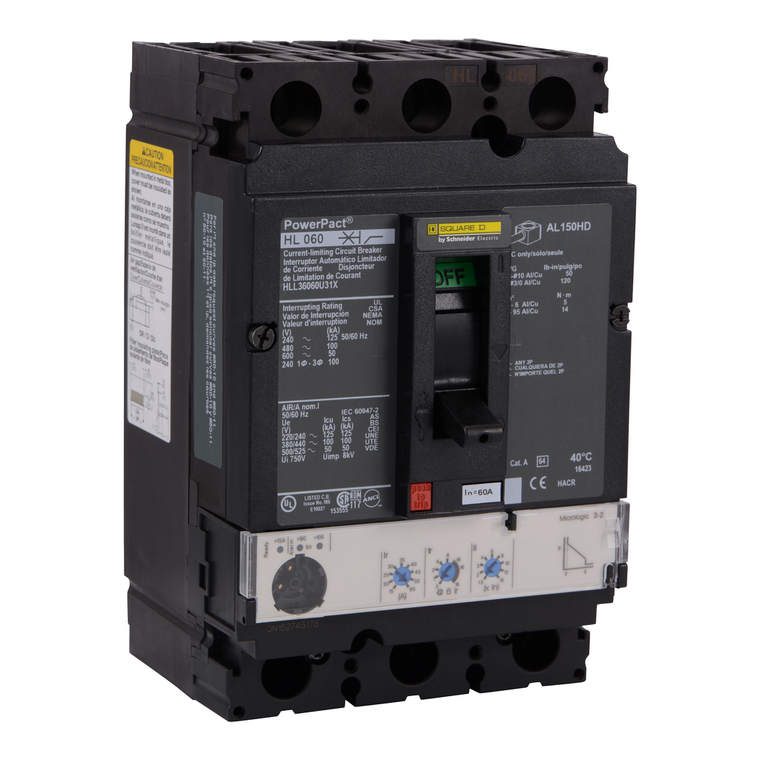

Schneider Electric HLL36060U31X Molded Case Circuit Breaker 600V 60A
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides Micrologic Standard with a 3.2 trip unit and an LI function with a breaking capacity of 50kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT H, 60A, 3 pole, circuit breaker has a breaking capacity of 50kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Ambient Air Temperature For Operation:
- -2-70 °C
- Ambient Air Temperature For Storage:
- -50-85 °C
- Breaking Capacity:
- 125 kA 240 V AC 50/60 Hz UL 489 || 100 kA 480 V AC 50/60 Hz UL 489 || 50 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 50 kA 500 V DC UL 489
- Mounting Support:
- lug
- Suitability For Isolation:
- yes IEC 60947-2
- Mounting Mode:
- unit mount lug)
- Quality Labels:
- CE
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Range:
- PowerPact
- Control Type:
- toggle
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Continuous Current Rating:
- 0.8
- Poles Description:
- 3P
- Communication Interface:
- Modbus || Ethernet
- Wire Stripping Length:
- 16 mm
- Local Signalling:
- ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
- Long Time Pick-Up Adjustment Range:
- 0.25...1 x In
- Electrical Connection:
- lugs, line || lugs, load
- Utilisation Category:
- category A
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
- Trip Unit Technology:
- electronic, standard, MicroLogic 3.2, LI
- Color:
- Black
- Environmental Disclosure:
- ENVPEP2206028EN
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- Warranty:
- 18 months
- Net Weight:
- 2.2 kg
- [Ics] Rated Service Breaking Capacity:
- 125 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 100 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 50 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Network Frequency:
- 50/60 Hz
- Circularity Profile:
- ENVEOLI2206028EN
- Product Or Component Type:
- circuit breaker
- Protected Poles Description:
- 3t
- Device Application:
- distribution
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Sustainable Offer Status:
- Green Premium product
- Trip Unit Name:
- MicroLogic 3.2
- Pvc Free:
- Yes
- Height:
- 163 mm
- Eu Rohs Directive:
- Compliant with Exemptions
- Breaking Capacity Code:
- L
- Width:
- 104 mm
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
- Product Certifications:
- UL || CSA || NOM
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- Product Name:
- PowerPact H
- Line Rated Current:
- 60-60 A
- Rohs Exemption Information:
- Yes
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Mercury Free:
- Yes
- Depth:
- 86 mm
- Circuit Breaker Application:
- HACR rated
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Quantity Per Set:
- 1
- Terminal Identifier:
- AL150HD
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Pollution Degree:
- 3 IEC 60947-1
