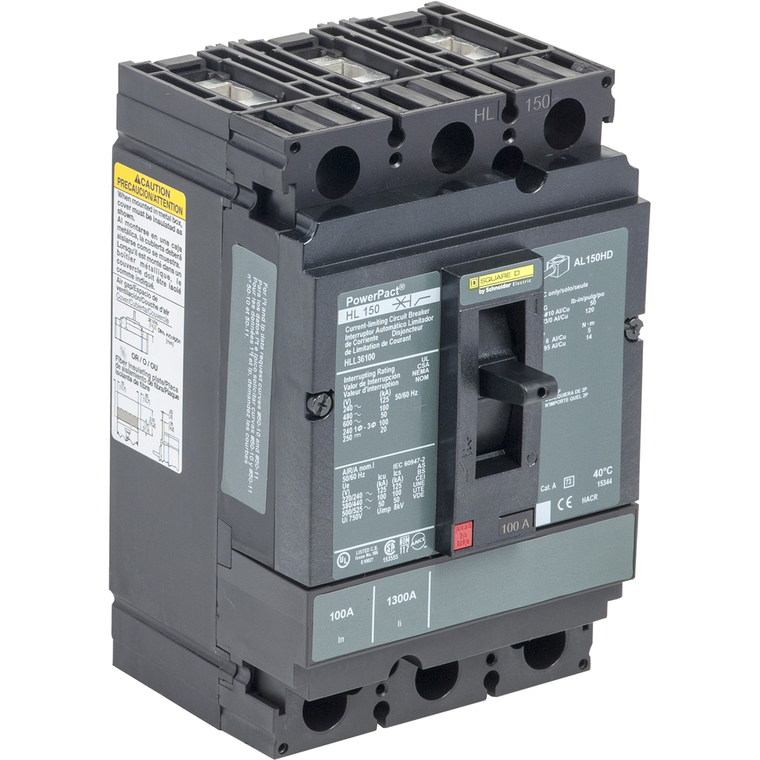

Schneider Electric HLL36100U33X Molded Case Circuit Breaker 600V 100A

Schneider Electric HLL36100U33X Molded Case Circuit Breaker 600V 100A

Schneider Electric
SKU:
HLL36100U33X
|
UPC:
785901473596
Availability:
Factory stock
$4,894.29
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides Micrologic Standard with a 3.2S trip unit and an LSI function with a breaking capacity of 50kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT H, 100A, 3 pole, circuit breaker has a breaking capacity of 50kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Protected Poles Description:
3t
Environmental Disclosure:
ENVPEP2206028EN
Pvc Free:
Yes
Pollution Degree:
3 IEC 60947-1
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Ambient Air Temperature For Storage:
-50-85 °C
Long Time Pick-Up Adjustment Range:
0.25...1 x In
Product Certifications:
UL || CSA || NOM
Mercury Free:
Yes
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Circularity Profile:
ENVEOLI2206028EN
Network Frequency:
50/60 Hz
Quality Labels:
CE
Eu Rohs Directive:
Compliant with Exemptions
[Ics] Rated Service Breaking Capacity:
125 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 100 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 50 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Rohs Exemption Information:
Yes
Suitability For Isolation:
yes IEC 60947-2
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Utilisation Category:
category A
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Trip Unit Technology:
electronic, standard, MicroLogic 3.2 S, LSI
Warranty:
18 months
Quantity Per Set:
1
Breaking Capacity Code:
L
Electrical Connection:
lugs, line || lugs, load
Wire Stripping Length:
16 mm
Ambient Air Temperature For Operation:
-2-70 °C
Breaking Capacity:
125 kA 240 V AC 50/60 Hz UL 489 || 100 kA 480 V AC 50/60 Hz UL 489 || 50 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 50 kA 500 V DC UL 489
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Product Name:
PowerPact H
Circuit Breaker Application:
HACR rated
Mounting Mode:
unit mount lug)
Width:
104 mm
Ip Degree Of Protection:
front cover IP40 IEC 60529
Tightening Torque:
5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
Device Application:
distribution
Sustainable Offer Status:
Green Premium product
Product Or Component Type:
circuit breaker
Height:
163 mm
Net Weight:
2.2 kg
Control Type:
toggle
Local Signalling:
ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
Mounting Support:
lug
Communication Interface:
Modbus || Ethernet
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Continuous Current Rating:
0.8
Poles Description:
3P
[Ue] Rated Operational Voltage:
690 V AC 50/60 Hz IEC 60947-3
Range:
PowerPact
Line Rated Current:
100-100 A
Terminal Identifier:
AL150HD
Trip Unit Name:
MicroLogic 3.2 S
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Color:
Black
Depth:
86 mm
Awg Gauge:
AWG 14...AWG 3/0 aluminium/copper terminal
Brochure:
View
Catalog:
View
Datasheet:
View
