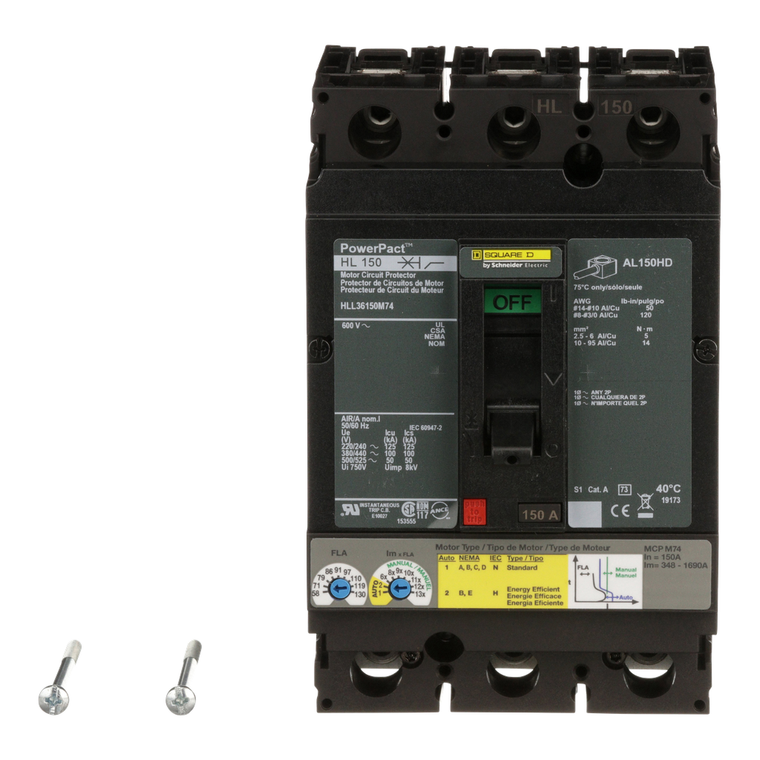

Schneider Electric HLL36150M74 Motor Circuit Protector 600V 150A

Schneider Electric HLL36150M74 Motor Circuit Protector 600V 150A

Schneider Electric
SKU:
HLL36150M74
|
UPC:
785901835677
Availability:
Contact us to confirm availability and lead times.
$2,306.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT H-Frame motor circuit protectors (MCP) are instantaneous-trip circuit breakers designed to offer short circuit protection for motors. The unique design of the PowerPacT MCPs accommodates transient motor inrush current without nuisance tripping. These motor protectors accept the same accessories and terminals as equivalent PowerPact circuit breakers. This unit has lugs on both the line and load side. This PowerPacT H, 150A, 3 pole, motor protector has a breaking capacity of 50kA at 600VAC. PowerPact electronic Motor Circuit Protectors accept the same accessories and terminals as equivalent PowerPact circuit breakers. This breaker has lugs on both the line and load sides. This breaker has a continuous current rating of 80%. PowerPacT H motor circuit protectors comply to UL, CSA, and IEC standards and are CE marked.
Additional Information
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Ip Degree Of Protection:
front cover IP40 IEC 60529
Communication Interface:
Modbus || Ethernet
[Ue] Rated Operational Voltage:
690 V AC 50/60 Hz IEC 60947-3
Product Name:
PowerPact H
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Network Frequency:
50/60 Hz
Awg Gauge:
AWG 14...AWG 3/0 aluminium/copper terminal
Quality Labels:
CE
Color:
Black
Magnetic Tripping Current:
348-1690 A
Ambient Air Temperature For Operation:
-2-70 °C
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Circularity Profile:
ENVEOLI2206027EN
Continuous Current Rating:
0.8
Pvc Free:
Yes
Quantity Per Set:
1
Wire Stripping Length:
16 mm
Rohs Exemption Information:
Yes
Warranty:
18 months
Depth:
86 mm
Breaking Capacity Code:
L
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Pollution Degree:
3 IEC 60947-1
Protected Poles Description:
3t
Mounting Mode:
unit mount lug)
Poles Description:
3P
Mounting Support:
lug
Environmental Disclosure:
ENVPEP2206027EN
Suitability For Isolation:
yes IEC 60947-2
Product Certifications:
UL || CSA || NOM
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Sustainable Offer Status:
Green Premium product
Trip Unit Technology:
thermal-magnetic
Range:
PowerPact
Device Application:
distribution
Breaking Capacity:
125 kA 240 V AC 50/60 Hz UL 489 || 100 kA 480 V AC 50/60 Hz UL 489 || 50 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 50 kA 500 V DC UL 489
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Product Or Component Type:
Motor Circuit Protector
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Tightening Torque:
5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
Line Rated Current:
150-150 A
Terminal Identifier:
AL150HD
Net Weight:
2.2 kg
Mercury Free:
Yes
Electrical Connection:
lugs, line || lugs, load
[Ics] Rated Service Breaking Capacity:
125 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 100 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 50 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
[Ith] Conventional Free Air Thermal Current:
58-130 A
Ambient Air Temperature For Storage:
-50-85 °C
Control Type:
toggle
Utilisation Category:
category A
Width:
104 mm
Eu Rohs Directive:
Compliant with Exemptions
Height:
163 mm
