Schneider Electric

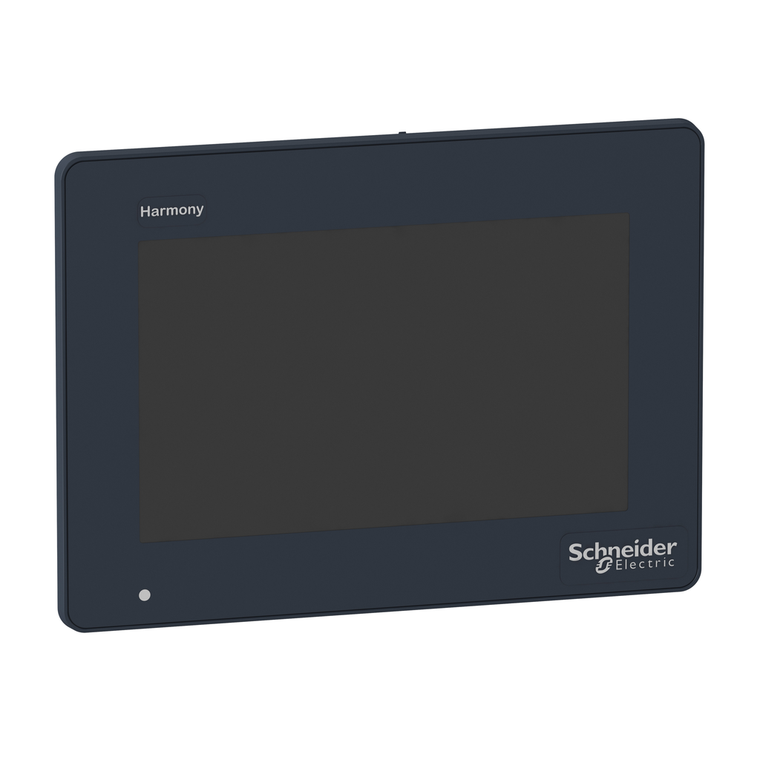

Schneider Electric HMIDT351FC Hmidt351 Coated

SKU:

HMIDT351FC

UPC:

3606480841699

MPN:

Condition:

New

Terminal Type:

touchscreen display

China Rohs Regulation:

X

Height:

148.6 mm

Depth:

36 mm

Display Colour:

262144 colors

Range Of Product:

Harmony GTU

Backlight Lifespan:

50000 hours

Display Type:

colour TFT LCD

Provided Equipment:

1 flash card

Vibration Resistance:

3.5 mm constant amplitude 5-9 Hz) EN/IEC 61131-2

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Pixel Resolution:

800 x 480

Width:

203.6 mm

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Display Resolution:

800 x 480 pixels WVGA

Ambient Air Temperature For Storage:

-20-60 °C

Supply Voltage Limits:

10.8-28.8 V

Ambient Air Temperature For Operation:

0-60 °C EN 61131-2

Type Of Installation:

indoor installation

Electromagnetic Compatibility:

electrostatic discharge immunity test level 3 conforming to EN/IEC 61000-4-2

Touchscreen Resolution:

1024 x 1024

Standards:

UL 508

Touch Panel:

single touch analogue resistive

Rohs Exemption Information:

Yes

Product Certifications:

CE || UKCA || UKEX

Product Or Component Type:

advanced touchscreen panel

Net Weight:

1.2 kg

Relative Humidity:

10-90 % non-condensing

Ip Degree Of Protection:

front panel IP66

Type Of Cooling:

natural convection

Inrush Current:

30 A

Display Size:

7 inch

[Us] Rated Supply Voltage:

12...24 V DC power supply

Aspect Ratio:

0.16875

Power Consumption In W:

6.5 W

Nema Degree Of Protection:

NEMA 4X front panel

Shock Resistance:

147 m/s²EN/IEC 61131-2

Operating Altitude:

6561.68 ft (2000 m)

Cut-Out Dimensions:

190 (+ 1/- 0) x 135 (+ 1/- 0) mm

Datasheet:

View
