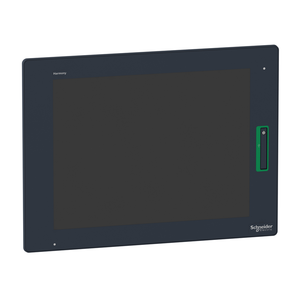

Schneider Electric HMIDT642 12.1 Touch Smart Display Xga
This Magelis GTU universal touchscreen operator interface (HMI) is supplied with 12V to 24V DC, has a 12.1" color TFT LCD display with 1024 x 768 pixels and 16M colors. It can handle multi-touch gestures. It is ideal for high-performance monitoring and communication thanks to a smartphone-like interface for use in the most demanding automation systems, including industrial control equipments, hazardous locations, and marine applications. The screen displays text messages, graphic objects and mimic diagrams, control and configuration of data. It also offers removable storage, dual LAN and dual communication interfaces. It resists permanent 60°C temperature, this makes it ideal for installation in areas where ventilation of the cabinet is not possible or risky.
- Shock Resistance:
- 147 m/s²IEC 61131-2
- Ambient Air Temperature For Operation:
- 0-60 °C IEC 61131-2
- Range Of Product:
- Harmony GTU
- China Rohs Regulation:
- X
- Power Consumption In W:
- 21 W
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Display Type:
- colour TFT LCD
- Supply Voltage Limits:
- 10.8-28.8 V
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Inrush Current:
- 30 A
- Type Of Cooling:
- natural convection
- Rohs Exemption Information:
- Yes
- Pixel Resolution:
- 1024 x 600
- Depth:
- 67 mm
- Circularity Profile:
- ENVEOLI1402016EN
- Display Colour:
- 16 million colours
- Display Size:
- 12.1 inch
- Product Certifications:
- CE || UKCA || UKEX
- Touch Panel:
- multi touch analogue resistive
- Electromagnetic Compatibility:
- electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
- Mercury Free:
- Yes
- Width:
- 315 mm
- Warranty:
- 18 months
- Net Weight:
- 3 kg
- Aspect Ratio:
- 0.16875
- Height:
- 241 mm
- Nema Degree Of Protection:
- NEMA 4X front panel
- Sustainable Offer Status:
- Green Premium product
- Touchscreen Resolution:
- 1024 x 1024
- Integrated Connection Type:
- USB 2.0 type A || USB 2.0 type mini B
- Standards:
- UL 508 || ANSI/ISA 12-12-01 || class I division 2 CSA C22.2 No 213 || CSA C22.2 No 142 || IEC 61132-2
- Function Available:
- brightness sensor
- [Us] Rated Supply Voltage:
- 12...24 V DC power supply
- Product Or Component Type:
- flat screen
- Relative Humidity:
- 10-90 % non-condensing
- Ip Degree Of Protection:
- front panel IP66 || front panel IP67
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Vibration Resistance:
- 3.5 mm constant amplitude 5-9 Hz) IEC 61131-2 || 9.8 m/s² 9-150 Hz) IEC 61131-2
- Cut-Out Dimensions:
- 301.5 (+ 1/- 0) x 227.5 (+ 1/- 0) mm
- Operating Altitude:
- 6561.68 ft (2000 m)
- Display Resolution:
- 1024 x 768 pixels XGA
- Type Of Installation:
- indoor installation
- Terminal Type:
- touchscreen display
- Ambient Air Temperature For Storage:
- -20-60 °C
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Environmental Disclosure:
- ENVPEP1402016EN
- Backlight Lifespan:
- 50000 hours
