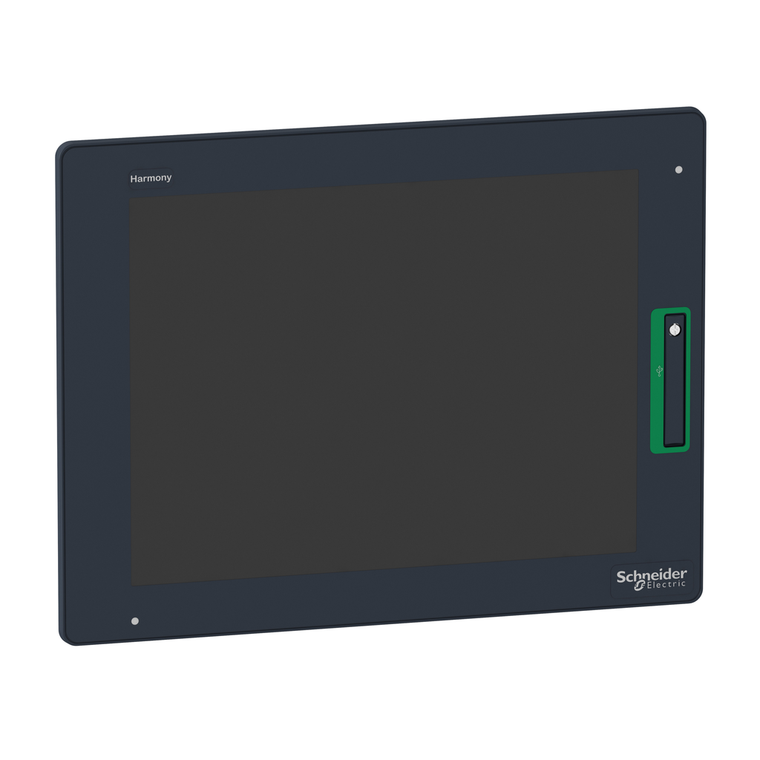

Schneider Electric HMIDT642FC Hmidt642 Coated

SKU:

HMIDT642FC

UPC:

3606480841651

MPN:

Condition:

New

Display Resolution:

1024 x 768 pixels XGA

Display Size:

12.1 inch

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Product Or Component Type:

flat screen

China Rohs Regulation:

X

[Us] Rated Supply Voltage:

12...24 V DC power supply

Electromagnetic Compatibility:

electrostatic discharge immunity test level 3 conforming to EN/IEC 61000-4-2

Operating Altitude:

6561.68 ft (2000 m)

Net Weight:

3 kg

Rohs Exemption Information:

Yes

Inrush Current:

30 A

Display Colour:

16 million colours

Function Available:

brightness sensor

Environmental Disclosure:

ENVPEP1402017EN

Vibration Resistance:

3.5 mm constant amplitude 5-9 Hz) EN/IEC 61131-2

Ip Degree Of Protection:

front panel IP66

Sustainable Offer Status:

Green Premium product

Terminal Type:

touchscreen display

Nema Degree Of Protection:

NEMA 4X front panel

Power Consumption In W:

21 W

Pixel Resolution:

1024 x 600

Backlight Lifespan:

50000 hours

Circularity Profile:

ENVEOLI1402017EN

Provided Equipment:

1 flash card

Integrated Connection Type:

USB 2.0 type A

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Range Of Product:

Harmony GTU

Cut-Out Dimensions:

301.5 (+ 1/- 0) x 227.5 (+ 1/- 0) mm

Ambient Air Temperature For Storage:

-20-60 °C

Height:

241 mm

Touchscreen Resolution:

1024 x 1024

Depth:

67 mm

Supply Voltage Limits:

10.8-28.8 V

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Shock Resistance:

147 m/s²EN/IEC 61131-2

Touch Panel:

multi touch analogue resistive

Ambient Air Temperature For Operation:

0-60 °C EN 61131-2

Type Of Cooling:

natural convection

Aspect Ratio:

0.16875

Display Type:

colour TFT LCD

Product Certifications:

CE || UKCA || UKEX

Mercury Free:

Yes

Type Of Installation:

indoor installation

Standards:

UL 508

Width:

315 mm

Relative Humidity:

10-90 % non-condensing
