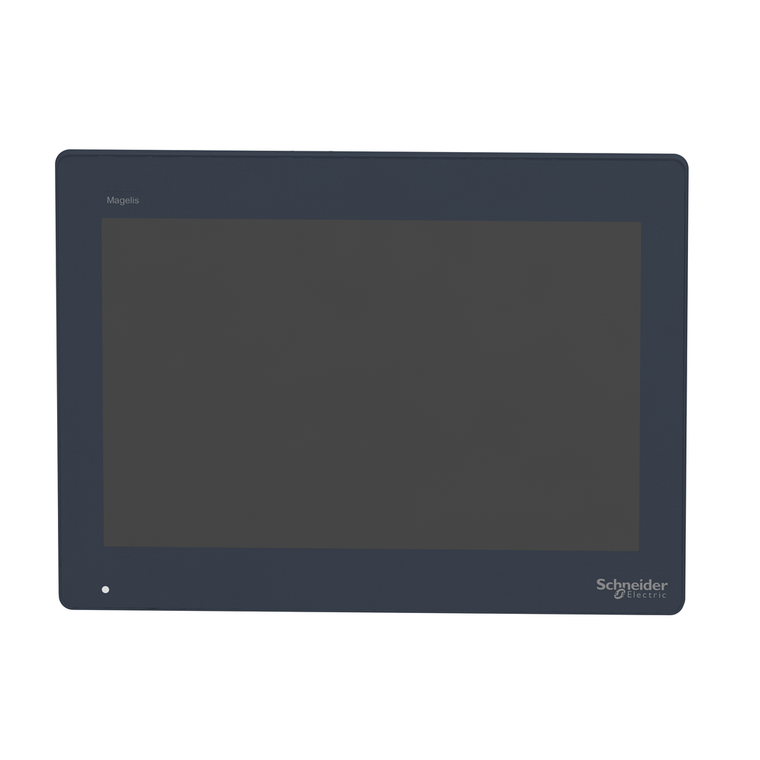

Schneider Electric HMIDT651 12W Touch Advanced Display Wxga

Schneider Electric HMIDT651 12W Touch Advanced Display Wxga

Schneider Electric
SKU:
HMIDT651
|
UPC:
3606480687266
Availability:
Contact us to confirm availability and lead times.
$3,205.65
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Magelis GTU universal touchscreen operator interface (HMI) is supplied with 12V to 24V DC, has a 12" color TFT LCD display with 1280 x 800 pixels and 262K colors. This universal touchscreen operator interface (HMI) is ideal for high-performance monitoring and communication. High-performance monitoring and communication thanks to a smartphone-like interface for use in the most demanding automation systems, including industrial control equipments, hazardous locations, and marine applications. The screen displays text messages, graphic objects and mimic diagrams, control and configuration of data. It also offers removable storage, dual LAN and dual communication interfaces. It resists permanent 60°C temperature, this makes it ideal for installation in areas where ventilation of the cabinet is not possible or risky.
Additional Information
Vibration Resistance:
3.5 mm constant amplitude 5-9 Hz) IEC 61131-2 || 9.8 m/s² 9-150 Hz) IEC 61131-2
Standards:
UL 508 || ANSI/ISA 12-12-01 || class I division 2 CSA C22.2 No 213 || CSA C22.2 No 142 || IEC 61132-2
Supply Voltage Limits:
10.8-28.8 V
Inrush Current:
30 A
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
China Rohs Regulation:
X
Cut-Out Dimensions:
295 (+ 1/- 0) x 217 (+ 1/- 0) mm
Touchscreen Resolution:
1024 x 1024
Product Certifications:
cULus || KC || CE || RCM || UKCA || UKEX
Terminal Type:
touchscreen display
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Type Of Cooling:
natural convection
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Product Or Component Type:
advanced touchscreen panel
Width:
308.5 mm
Pixel Resolution:
1280 x 800
Display Colour:
262144 colors
Relative Humidity:
10-90 % non-condensing
Power Consumption In W:
11.5 W
Touch Panel:
single touch analogue resistive
Rohs Exemption Information:
Yes
Display Type:
colour TFT LCD
Operating Altitude:
6561.68 ft (2000 m)
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Shock Resistance:
147 m/s²IEC 61131-2
[Us] Rated Supply Voltage:
12...24 V DC power supply
Depth:
67 mm
Electromagnetic Compatibility:
electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
Net Weight:
3 kg
Type Of Installation:
indoor installation
Ambient Air Temperature For Storage:
-20-60 °C
Ip Degree Of Protection:
front panel IP66 || front panel IP67
Ambient Air Temperature For Operation:
0-60 °C IEC 61131-2
Nema Degree Of Protection:
NEMA 4X front panel
Mercury Free:
Yes
Range Of Product:
Harmony GTU
Height:
230.5 mm
Display Resolution:
1280 x 800 pixels WVGA
Backlight Lifespan:
50000 hours
Aspect Ratio:
0.16875
Display Size:
12.1 inch
Warranty:
18 months
