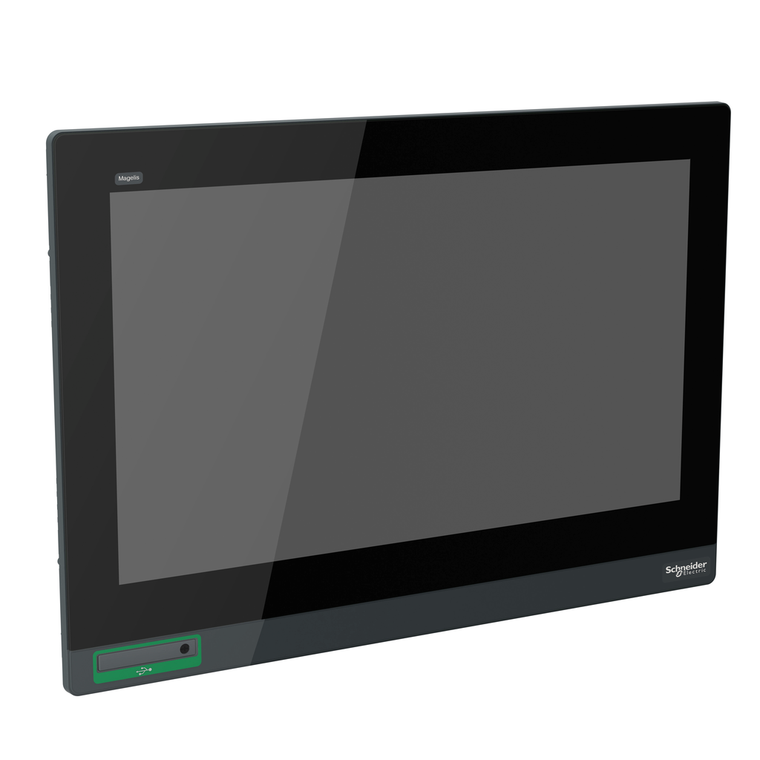

Schneider Electric HMIDT952 19W Touch Smart Display Fwxga

(No reviews yet) Write a Review
SKU:
HMIDT952
UPC:
3.60648E+12
Condition:
New
Display Type:
colour TFT LCD
Aspect Ratio:
0.16875
Inrush Current:
30 A
Vibration Resistance:
3.5 mm constant amplitude 5-9 Hz) IEC 61131-2 || 9.8 m/s² 9-150 Hz) IEC 61131-2
Width:
483 mm
Depth:
69 mm
Height:
337 mm
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Integrated Connection Type:
USB 2.0 type A || USB 2.0 type mini B
Display Size:
18.5 inch
Ambient Air Temperature For Storage:
-20-60 °C
Type Of Cooling:
natural convection
Display Colour:
16 million colours
Backlight Lifespan:
50000 hours
Relative Humidity:
10-90 % non-condensing
Ip Degree Of Protection:
front panel IP66 || front panel IP67
Function Available:
brightness sensor
Net Weight:
6.8 kg
Ambient Air Temperature For Operation:
0-55 °C IEC 61131-2
Touchscreen Resolution:
2048 x 2048
Type Of Installation:
indoor installation
Display Resolution:
1366 x 768 pixels FWXGA
Electromagnetic Compatibility:
electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
Range Of Product:
Harmony GTU
Pixel Resolution:
1366 x 768
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Circularity Profile:
ENVEOLI1402016EN
Standards:
UL 508 || ANSI/ISA 12-12-01 || class I division 2 CSA C22.2 No 213 || CSA C22.2 No 142 || IEC 61132-2
Touch Panel:
multi-touch projected capactive technology (PCT) 50000000 cycles
Product Certifications:
RCM || cULus || CE || KC
Product Or Component Type:
flat screen
[Us] Rated Supply Voltage:
12...24 V DC power supply
Operating Altitude:
6561.68 ft (2000 m)
China Rohs Regulation:
X
Environmental Disclosure:
ENVPEP1402016EN
Terminal Type:
touchscreen display
Supply Voltage Limits:
10.8-28.8 V
Shock Resistance:
147 m/s²IEC 61131-2
Rohs Exemption Information:
Yes
Power Consumption In W:
19 W
Cut-Out Dimensions:
465 (+ 1/- 0) x 319 (+ 1/- 0) mm
Nema Degree Of Protection:
NEMA 4X front panel
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Mercury Free:
Yes
Sustainable Offer Status:
Green Premium product
Brochure:
View
Catalog:
View
Datasheet:
View
$4,845.75

Description

The touch screen display features 18.5inch color TFT LCD display, supports 1366 x 768 pixels FWXGA resolution. It is equipped with USB 2.0 type A, USB 2.0 type mini B integrated connections. The touch panel is designed with multi-touch projected capacitive technology (PCT) 50 million cycles. This touch panel screen has 16 million colors with 50,000 hours of backlight lifespan. It is an IP66/IP67 and NEMA 4X rated product. Its dimensions are 483mm (width) x 69mm (depth) x 337mm (height). It weighs 6.8kg. It is suitable for complex machines, food/beverages, water, wastewater, mining, mineral, metal packaging and conveying applications. This product is certified by RCM, CULus, CE and KC. It meets UL 508, ANSI/ISA 12-12-01, class I division 2 CSA C22.2 No 213, CSA C22.2 No 142 and IEC 61132-2 standards. This display is compatible with all Premium and Open Harmony GTU Boxes. It supports panel mount for indoor installation. Harmony GTU (formerly known as Magelis GTU) products are universal panels that include smartphone like interface and wireless technology.
