Schneider Electric

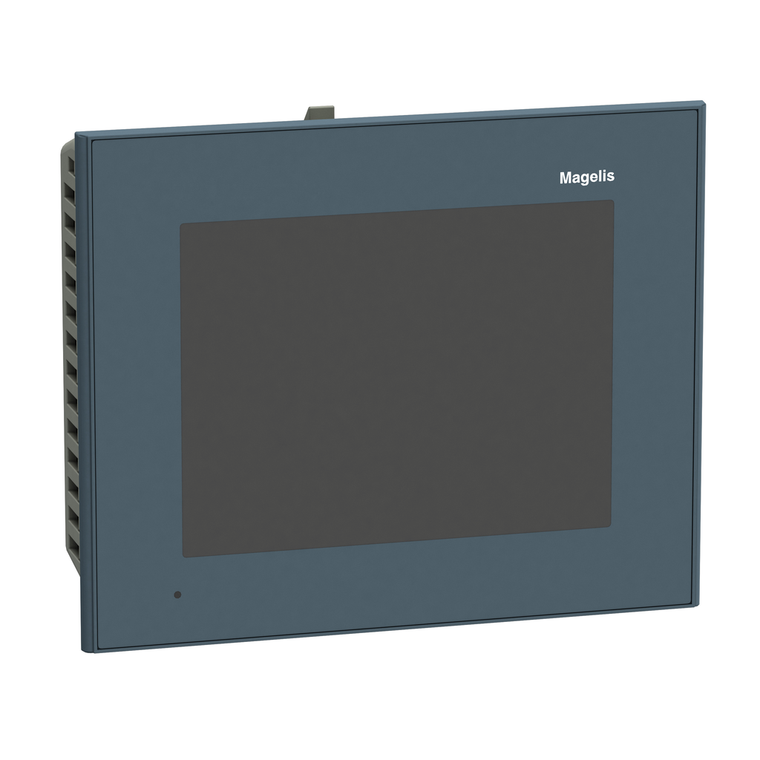

Schneider Electric HMIGTO2310FCW Hmigto2310 Coated And Logo Removed

SKU:

HMIGTO2310FCW

UPC:

3606480841934

MPN:

Condition:

New

Data Backed Up:

512 KB internal RAM SRAM)

Ip Degree Of Protection:

IP20 IEC 60529 rear panel) || IP65 IEC 60529 front panel)

Touch Panel:

resistive film, 1000000 cycles

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Software Designation:

Vijeo Designer configuration software >= V6.1

Front Material:

PPT

Supply:

external source

Touch Sensitive Zone:

1024 x 1024

Resistance To Electrostatic Discharge:

6 kV contact discharge IEC 61000-4-2 level 3

Operating Altitude:

< 6561.68 ft (2000 m)

Product Mounting:

flush mounting

Downloadable Protocols:

Schneider Electric Modicon Modbus || Schneider Electric Modicon Uni-TE || Schneider Electric Modicon Modbus Plus || Schneider Electric Modicon FIPWAY || Mitsubishi Melsec third party protocols || Omron Sysmac third party protocols || Rockwell Automat

Brightness:

16 levels by touch panel || 16 levels by software

Circularity Profile:

ENVEOLI1402012EN

Display Colour:

65536 colours

Width:

169.5 mm

Type Of Cooling:

natural convection

Supply Voltage Limits:

19.2-28.8 V

Height:

137 mm

Inrush Current:

30 A

Backlight Lifespan:

50000 hours white 25 °C

Net Weight:

0.8 kg

Product Certifications:

C-tick || KCC || CE || cULus || UKCA || UKEX

Standards:

EN 61131-2 || UL 508 || IEC 61000-6-2

Rohs Exemption Information:

Yes

Shock Resistance:

147 m/s² 3 chocks in each direction X, Y and Z EN/IEC 61131-2

Local Signalling:

status LED green, steady offline || status LED green, steady operating || status LED orange, flashing software starting up || status LED red, steady power supply (ON) || status LED clear, faded power supply (OFF) || COM2 LED yellow, steady data is be

Range Of Product:

Harmony GTO

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Integrated Connection Type:

COM1 serial link SUB-D 9 RS232C 2400...115200 bps || COM2 serial link RJ45 RS485 2400...115200 bps || COM2 serial link RJ45 RS485 187.5 kbps Siemens MPI || Ethernet RJ45 10BASE-T/100BASE-TX || Ethernet RJ45 IEEE 802.3 || USB 2.0 type A || USB 2.0 typ

Ambient Air Temperature For Storage:

-20-60 °C

Data Storage Equipment:

SD card, <= 32 GB || SDHC card, <= 32 GB

Enclosure Material:

PPT

Memory Description:

flash EPROM, 96 MB

Vibration Resistance:

3.5 mm 5-9 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - EN/IEC 61131-2 || 1 gn 9-150 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - EN/IEC 61131-2

Character Font:

Japanese (ANK, Kanji) || Chinese (simplified Chinese) || Taiwanese (traditional Chinese) || ASCII (European characters) || Korean

Sustainable Offer Status:

Green Premium product

Relative Humidity:

10-90 % without condensation

Display Resolution:

320 x 240 pixels QVGA

[Us] Rated Supply Voltage:

24 V DC

Terminal Type:

touchscreen display

Display Size:

5.7 inch

Maximum Power Consumption In W:

6.5 W when power is not supplied to external devices || 4.5 W when backlight is OFF || 5 W when backlight is dimmed || 10.5 W

Fixing Mode:

by 4 screw clamps

Ambient Air Temperature For Operation:

0-55 °C

Product Or Component Type:

advanced touchscreen panel

Environmental Disclosure:

ENVPEP1402012EN

Depth:

59.5 mm

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Display Type:

backlit colour TFT LCD

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

China Rohs Regulation:

X

Battery Type:

lithium internal RAM 100 days 5 day(s) 10 year(s)

Nema Degree Of Protection:

NEMA 4X front panel (indoor use)

Datasheet:

View
