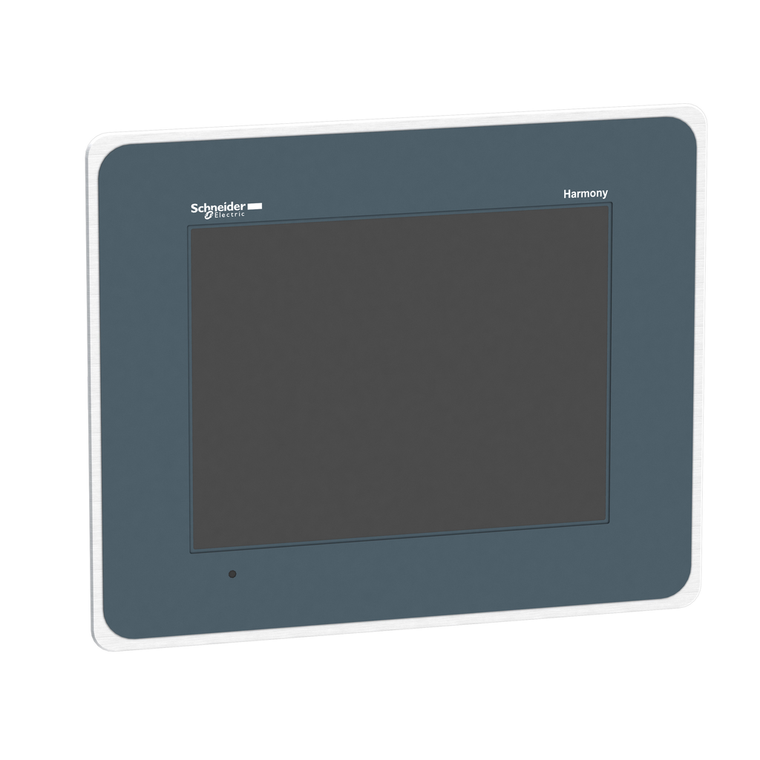

Schneider Electric HMIGTO5315 10.4 Color Touch Panel Vga Stainless

(No reviews yet) Write a Review
SKU:
HMIGTO5315
UPC:
3595864150291
Condition:
New
Resistance To Electrostatic Discharge:
6 kV contact discharge IEC 61000-4-2 level 3
Sustainable Offer Status:
Green Premium product
Circularity Profile:
ENVEOLI1402026EN
Net Weight:
2.5 kg
Display Resolution:
640 x 480 pixels VGA
Nema Degree Of Protection:
NEMA 4X front panel (indoor use)
Display Colour:
65536 colours
Local Signalling:
status LED green, steady offline || status LED green, steady operating || status LED orange, flashing software starting up || status LED red, steady power supply (ON) || status LED clear, faded power supply (OFF) || COM2 LED yellow, steady data is be
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
[Us] Rated Supply Voltage:
24 V DC
Relative Humidity:
10-90 % without condensation
Touch Sensitive Zone:
1024 x 1024
Fixing Mode:
by 8 nuts || by 4 L brackets
Width:
316.5 mm
Warranty:
18 months
Supply:
external source
Display Size:
10.4 inch
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Enclosure Material:
PPT
Brightness:
16 levels by touch panel || 16 levels by software
Backlight Lifespan:
50000 hours white 25 °C
Supply Voltage Limits:
19.2-28.8 V
Integrated Connection Type:
COM1 serial link SUB-D 9 RS232C 2400...115200 bps || COM2 serial link RJ45 RS485 2400...115200 bps || COM2 serial link RJ45 RS485 187.5 kbps Siemens MPI || Ethernet RJ45 10BASE-T/100BASE-TX || Ethernet RJ45 IEEE 802.3 || USB 2.0 type A || USB 2.0 typ
Product Certifications:
C-tick || cULus || CE || KCC || UKCA || UKEX
Terminal Type:
touchscreen display
Battery Type:
lithium internal RAM 100 days 5 day(s) 10 year(s)
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Display Type:
backlit colour TFT LCD
Maximum Power Consumption In W:
12 W when power is not supplied to external devices || 7 W when backlight is OFF || 8 W when backlight is dimmed || 17 W
Type Of Cooling:
natural convection
Depth:
57 mm
Character Font:
Chinese (simplified Chinese) || Japanese (ANK, Kanji) || Taiwanese (traditional Chinese) || Korean || ASCII
Product Or Component Type:
advanced touchscreen panel
Height:
258.5 mm
Ambient Air Temperature For Storage:
-20-60 °C
China Rohs Regulation:
X
Downloadable Protocols:
Schneider Electric Modicon Modbus || Schneider Electric Modicon Uni-TE || Schneider Electric Modicon Modbus Plus || Schneider Electric Modicon FIPWAY || Mitsubishi Melsec third party protocols || Omron Sysmac third party protocols || Rockwell Automat
Mercury Free:
Yes
Inrush Current:
30 A
Range Of Product:
Harmony GTO
Product Mounting:
flush mounting
Ambient Air Temperature For Operation:
0-55 °C
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Data Backed Up:
512 KB internal RAM SRAM)
Memory Description:
flash EPROM, 96 MB
Provided Equipment:
1 protective cover
Ip Degree Of Protection:
IP20 IEC 60529 rear panel) || IP66K IEC 60529 front panel) || IP66K DIN 40050-9 front panel)
Front Material:
stainless steel 304
Rohs Exemption Information:
Yes
Data Storage Equipment:
SD card, <= 32 GB || SDHC card, <= 32 GB
Operating System:
Harmony
Vibration Resistance:
3.5 mm 5-9 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - IEC 61131-2 || 1 gn 9-150 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - IEC 61131-2
Environmental Disclosure:
ENVPEP1402026EN
Standards:
IEC 61131-2 || IEC 61000-6-2 || UL 508
Touch Panel:
resistive film, 1000000 cycles
Shock Resistance:
147 m/s² 3 chocks in each direction X, Y and Z IEC 61131-2
Software Designation:
Vijeo Designer configuration software >= V6.1
Operating Altitude:
< 6561.68 ft (2000 m)
Brochure:
View
Catalog:
View
Datasheet:
View
$6,082.04

Description

This Magelis GTO IP66K touchscreen operator interface (HMI) is supplied with 24V DC, has a 10.4" color TFT LCD display with a stainless steel frame, 640 x 480 pixels (VGA) and 96MB EPROM. It also has 1 SD card slot, 1 host + 1 mini-B USB ports, 1 RS232C port, 1 RS485 port and 1 Ethernet TCP/IP port. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays text messages, graphic objects and mimic diagrams, control and configuration of data. Its RS485 host port makes it ideal to supervise and control simple systems and machines. It is easily programmable with Vijeo Designer, with almost not coding needed.
