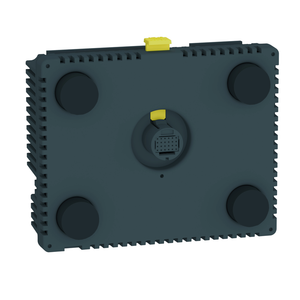

Schneider Electric HMISAC Rear Module Small Controller Machine

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric HMISAC Rear Module Small Controller Machine

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

HMISAC

UPC:

3.59586E+12

MPN:

Condition:

New

Discrete Output Current:

2 A 4 A)5 ms opening contact digital output || 2 A 4 A)2 ms closing contact digital output || 300 mA2 ms fast output (normal mode) || 50 mA2 ms fast output (PWM or PTO mode)

Net Weight:

0.359 kg

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Ambient Air Temperature For Storage:

-20-60 °C

Standards:

FCC Class A || ANSI/ISA 12-12-01 || UL 508 || IEC 61000-6-2 || EN 61131-2 || CSA C22.2 No 213 Class I Division 2

Discrete Input Voltage:

24 V DC sink or source (positive/negative)

Pollution Degree:

2 IEC 60664

Input Impedance:

4.7 kOhm || 2.81 kOhm

Integrated Connection Type:

1 serial link - RJ45 - RS232/RS485 <= 115.2 kbits/s) || 1 Ethernet TCP/IP - RJ45 || 1 USB 2.0 type mini B || 1 USB 2.0 type A || CANopen master bus - SUB-D 9

Range Of Product:

Harmony SCU

Isolation Between Channels:

none

Product Certifications:

GOST || C-tick || KCC || cULus 508 || cULus CSA 22-2 No 142 || cUL 1604 Class 1 Division 2

Relative Humidity:

5-85 % without condensation

Processor Name:

CPU RISC

Electromagnetic Compatibility:

electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2 || electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 || susceptibility to electromagnetic fiel

Depth:

102 mm

Realtime Clock:

built-in

Shock Resistance:

147 m/s² 11 ms on DIN rail)IEC 60068-2-27 || 294 m/s² 6 ms on panel mounting)IEC 60068-2-27

Inrush Current:

30 A

Configurable Filtering Time:

0 ms no filter none) || 0.004...0.04 ms bounce filter latch/event and cumulative filter by step Nx0.5ms (64>=N>=2)) || 3...12 ms integrator none/run/stop)

Discrete Input Current:

7.83 mA fast input || 5 mA digital

Processor Frequency:

333 MHz

Sensor Power Supply:

15-28.8 V DC >= 15 V >= 5 mA <= 5 V <= 1.5 mA || 15-28.8 V DC >= 15 V >= 2.5 mA <= 5 V <= 1 mA

Connection Pitch:

3.5 mm

Marking:

CE

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Discrete Output Voltage:

24 V DC 19.2...28.8 V)transistor || 24 V DC 5...30 V)relay || 220 V AC 100...250 V)relay

Upgradeability:

Upgradeable through digital modules and upgraded components

Software Designation:

SoMachine

Memory Description:

flash NAND, 128 MB || internal data storage FRAM, 128 kB || application run DRAM, 128 MB

Fixing Mode:

by 1 nut Ø 22 mm 1...6 mm thick panel

Height:

50.65 mm

Number Of Common Point:

1 fast input (HSC mode) || 2 digital input

Supply:

external source

Maximum Cable Distance Between Devices:

shielded cable <10 m fast input || shielded cable <100 m digital input || unshielded cable <50 m digital input

Power Consumption In W:

15 W

Width:

128 mm

Circularity Profile:

ENVEOLI1405010EN

Maximum Output Frequency:

100 kHz fast output (PTO mode) || 1 kHz fast output (PWM mode)

Vibration Resistance:

+/- 3.5 mm 5-9 Hz) IEC 60068-2-6 || 1 gn 9-150 Hz) IEC 60068-2-6

Local Signalling:

no indicator

Device Presentation:

basic element

Rohs Exemption Information:

Yes

Ambient Air Temperature For Operation:

0-50 °C

Input/Output Number:

2 fast input FI0...FI1 || 14 digital input DI0...DI13 || 2 fast output FQ0...FQ1 || 8 digital output DQ0...DQ7

[Us] Rated Supply Voltage:

24 V 20.4-28.8 V)DC

Enclosure Material:

PC/PBT

Mercury Free:

Yes

Sustainable Offer Status:

Green Premium product

Immunity To Microbreaks:

10 ms

Number Of Pages:

limited by internal memory capacity

Operating System:

Harmony

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Environmental Characteristic:

corrosive gas free

Discrete Input Number:

2 fast input (normal mode) IEC 61131-2 Type 1 || 14 digital input IEC 61131-2 Type 1

Ip Degree Of Protection:

IP20 IEC 60529 rear panel) || IP65 IEC 60529 front panel)

China Rohs Regulation:

X

Discrete Output Number:

2 fast output (normal mode) source || 8 digital output source

Product Or Component Type:

controller

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Overvoltage Protection:

with

Downloadable Protocols:

Modbus || Modbus TCP/IP || CANopen

Maximum Input Frequency:

100 kHz fast input (encoder mode) A/B || 100 kHz fast input single phase || 100 kHz fast input pulse/direction

Operating Altitude:

<= 6561.68 ft (2000 m)

Maximum Pressure:

800...1114 hPa

Insulation Resistance:

> 10 MOhm between the I/O and internal logic || > 10 MOhm between power supply and earth

Absolute Accuracy Error:

+/- 0.1 % of full scale cyclic ratio 1...99% fast output (PWM or PTO mode) || 1 % of full scale cyclic ratio 1...99% fast output (PWM or PTO mode) || +/- 5 % of full scale cyclic ratio 10...90% fast output (PWM or PTO mode) || +/- 10 % of full scale

Isolation Between Channels And Internal Logic:

500 V DC

Nema Degree Of Protection:

NEMA 4X front panel

Environmental Disclosure:

ENVPEP1405010EN

Storage Altitude:

0-10000 m
