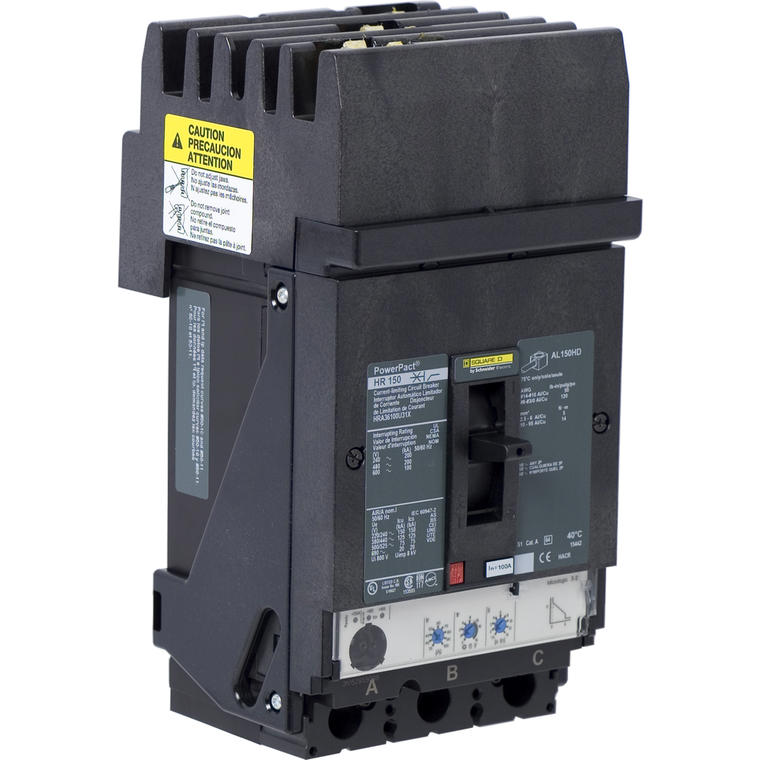

Schneider Electric HRA36100U31X Molded Case Circuit Breaker 600V 100A

Schneider Electric HRA36100U31X Molded Case Circuit Breaker 600V 100A

Schneider Electric
SKU:
HRA36100U31X
|
UPC:
785901710493
Availability:
Contact us to confirm availability and lead times.
$4,591.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides Micrologic Standard with a 3.2 trip unit and an LI function with a breaking capacity of 100kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT H I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This breaker has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT H, 100A, 3 pole, circuit breaker has a breaking capacity of 100kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Pollution Degree:
3 IEC 60947-1
Pvc Free:
Yes
Product Certifications:
UL || CSA || NOM
Eu Rohs Directive:
Compliant with Exemptions
Ambient Air Temperature For Operation:
-2-70 °C
Product Name:
PowerPact H
Height:
163 mm
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Net Weight:
2.2 kg
Width:
104 mm
Utilisation Category:
category A
Long Time Pick-Up Adjustment Range:
0.25...1 x In
Terminal Identifier:
AL150HD
Control Type:
toggle
Product Or Component Type:
circuit breaker
Quantity Per Set:
1
Local Signalling:
ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Breaking Capacity Code:
R
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Range:
PowerPact
Breaking Capacity:
200 kA 240 V AC 50/60 Hz UL 489 || 200 kA 480 V AC 50/60 Hz UL 489 || 100 kA 600 V AC 50/60 Hz UL 489
Trip Unit Name:
MicroLogic 3.2
Color:
Black
Rohs Exemption Information:
Yes
[Ue] Rated Operational Voltage:
690 V AC 50/60 Hz IEC 60947-3
Electrical Connection:
I-Line connection, line || lugs, load
Environmental Disclosure:
ENVPEP2206028EN
Poles Description:
3P
Device Application:
distribution
Mounting Support:
bracket
Circularity Profile:
ENVEOLI2206028EN
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Phase Connection:
ABC
Quality Labels:
CE
Suitability For Isolation:
yes IEC 60947-2
Wire Stripping Length:
16 mm
Line Rated Current:
100-100 A
Mercury Free:
Yes
Ambient Air Temperature For Storage:
-50-85 °C
Sustainable Offer Status:
Green Premium product
Depth:
86 mm
Awg Gauge:
AWG 14...AWG 3/0 aluminium/copper terminal
Protected Poles Description:
3t
Network Frequency:
50/60 Hz
Trip Unit Technology:
electronic, standard, MicroLogic 3.2, LI
Continuous Current Rating:
0.8
Circuit Breaker Application:
HACR rated
Mounting Height:
4.5 in
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Mounting Mode:
I-Line bracket)
[Ics] Rated Service Breaking Capacity:
150 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 125 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 75 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 690 V AC 50/60 Hz IEC 60947-2
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Ip Degree Of Protection:
front cover IP40 IEC 60529
Communication Interface:
Modbus || Ethernet
Tightening Torque:
5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
