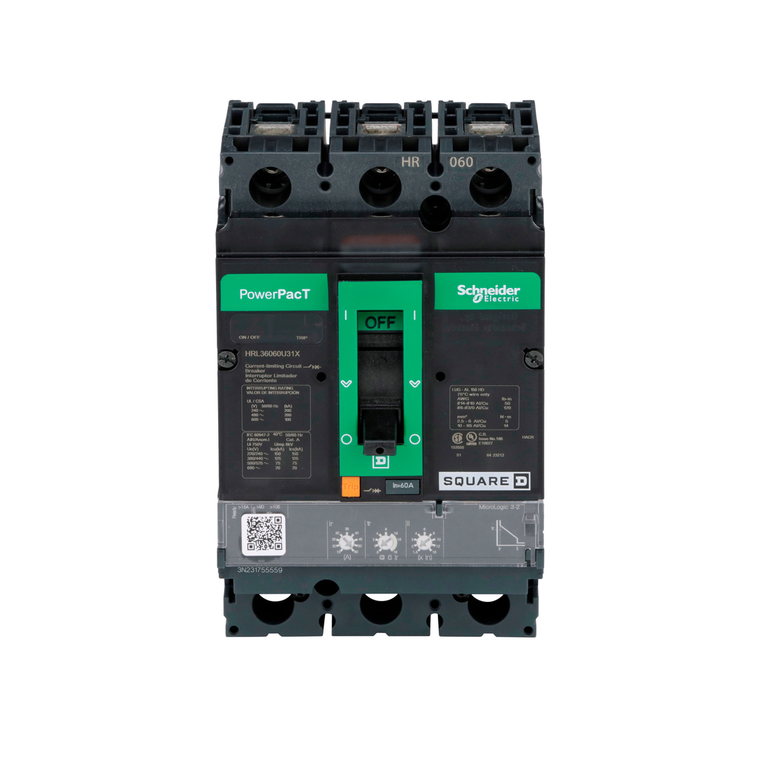

Schneider Electric HRL36060U31X Molded Case Circuit Breaker 600V 60A

Schneider Electric HRL36060U31X Molded Case Circuit Breaker 600V 60A

Schneider Electric
SKU:
HRL36060U31X
|
UPC:
785901146810
Availability:
Factory stock
$3,708.31
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides Micrologic Standard with a 3.2 trip unit and an LI function with a breaking capacity of 100kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT H, 60A, 3 pole, circuit breaker has a breaking capacity of 100kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Suitability For Isolation:
yes IEC 60947-2
Circuit Breaker Application:
HACR rated
Range:
PowerPact
Awg Gauge:
AWG 14...AWG 3/0 aluminium/copper terminal
Breaking Capacity Code:
R
Wire Stripping Length:
16 mm
Color:
Black
Width:
104 mm
Trip Unit Technology:
electronic, standard, MicroLogic 3.2, LI
Device Application:
distribution
Terminal Identifier:
AL150HD
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Net Weight:
2.2 kg
Control Type:
toggle
Eu Rohs Directive:
Compliant with Exemptions
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Mounting Support:
lug
Mercury Free:
Yes
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Ambient Air Temperature For Storage:
-50-85 °C
Communication Interface:
Modbus || Ethernet
Sustainable Offer Status:
Green Premium product
Local Signalling:
ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
Quality Labels:
CE
Continuous Current Rating:
0.8
Long Time Pick-Up Adjustment Range:
0.25...1 x In
Protected Poles Description:
3t
Pvc Free:
Yes
Trip Unit Name:
MicroLogic 3.2
[Ics] Rated Service Breaking Capacity:
150 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 125 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 75 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 690 V AC 50/60 Hz IEC 60947-2
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Environmental Disclosure:
ENVPEP2206028EN
Line Rated Current:
60-60 A
Product Certifications:
UL || CSA || NOM
[Ue] Rated Operational Voltage:
690 V AC 50/60 Hz IEC 60947-3
Ambient Air Temperature For Operation:
-2-70 °C
Pollution Degree:
3 IEC 60947-1
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Depth:
86 mm
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
Ip Degree Of Protection:
front cover IP40 IEC 60529
Standards:
UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Product Name:
PowerPact H
Product Or Component Type:
circuit breaker
Utilisation Category:
category A
Network Frequency:
50/60 Hz
Mounting Mode:
unit mount lug)
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 5000 m with derating
Electrical Connection:
lugs, line || lugs, load
Tightening Torque:
5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
Height:
163 mm
Poles Description:
3P
Circularity Profile:
ENVEOLI2206028EN
Breaking Capacity:
200 kA 240 V AC 50/60 Hz UL 489 || 200 kA 480 V AC 50/60 Hz UL 489 || 100 kA 600 V AC 50/60 Hz UL 489
Quantity Per Set:
1
Rohs Exemption Information:
Yes
