Schneider Electric HRL36100U31X Molded Case Circuit Breaker 600V 100A
Schneider Electric
$4,367.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

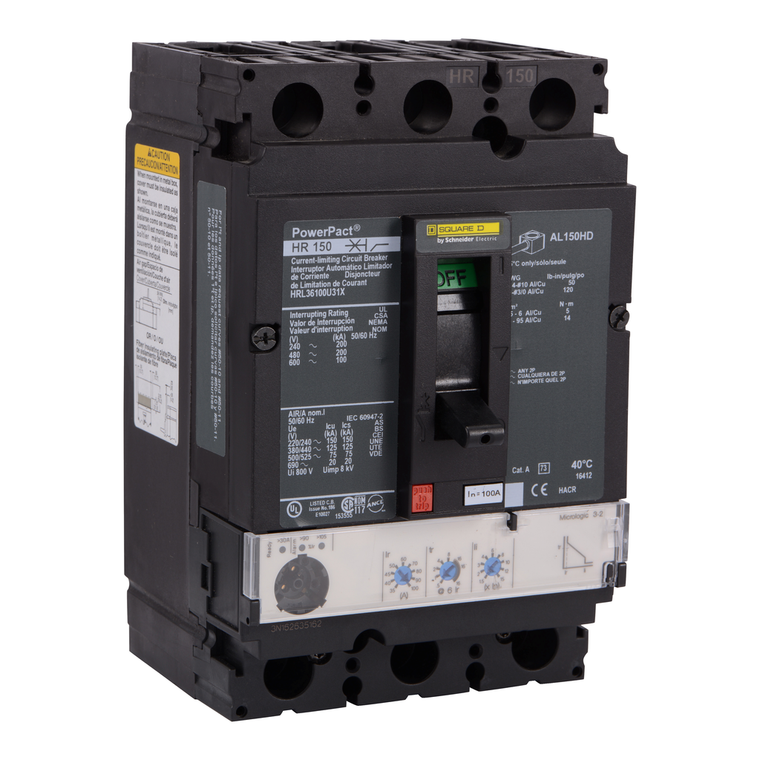

Schneider Electric HRL36100U31X Molded Case Circuit Breaker 600V 100A
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides Micrologic Standard with a 3.2 trip unit and an LI function with a breaking capacity of 100kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT H, 100A, 3 pole, circuit breaker has a breaking capacity of 100kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
- Standards:
- UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Circularity Profile:
- ENVEOLI2206028EN
- Eu Rohs Directive:
- Compliant with Exemptions
- Network Frequency:
- 50/60 Hz
- Quality Labels:
- CE
- Suitability For Isolation:
- yes IEC 60947-2
- Tightening Torque:
- 5-5 N.m 2.5-6 mm² (AWG 14...AWG 10) || 14-14 N.m 10-95 mm² (AWG 8...AWG 3/0)
- Number Of Slots:
- 2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)
- Mercury Free:
- Yes
- Protected Poles Description:
- 3t
- Pvc Free:
- Yes
- Depth:
- 86 mm
- Poles Description:
- 3P
- Trip Unit Technology:
- electronic, standard, MicroLogic 3.2, LI
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz IEC 60947-3
- Product Name:
- PowerPact H
- Environmental Disclosure:
- ENVPEP2206028EN
- Awg Gauge:
- AWG 14...AWG 3/0 aluminium/copper terminal
- Utilisation Category:
- category A
- Mounting Support:
- lug
- Circuit Breaker Application:
- HACR rated
- Product Or Component Type:
- circuit breaker
- Ambient Air Temperature For Operation:
- -2-70 °C
- Trip Unit Name:
- MicroLogic 3.2
- Pollution Degree:
- 3 IEC 60947-1
- Terminal Identifier:
- AL150HD
- Line Rated Current:
- 100-100 A
- Net Weight:
- 2.2 kg
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information:
- Yes
- Control Type:
- toggle
- Device Application:
- distribution
- Color:
- Black
- Quantity Per Set:
- 1
- Breaking Capacity Code:
- R
- Product Certifications:
- UL || CSA || NOM
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV IEC 60947-2
- Height:
- 163 mm
- Ambient Air Temperature For Storage:
- -50-85 °C
- Sustainable Offer Status:
- Green Premium product
- Range:
- PowerPact
- Mounting Mode:
- unit mount lug)
- [Ics] Rated Service Breaking Capacity:
- 150 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 125 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 75 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 690 V AC 50/60 Hz IEC 60947-2
- Local Signalling:
- ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)
- Long Time Pick-Up Adjustment Range:
- 0.25...1 x In
- Electrical Connection:
- lugs, line || lugs, load
- [Ui] Rated Insulation Voltage:
- 750 V IEC 60947-2
- Operating Altitude:
- < 6561.68 ft (2000 m) without derating || 5000 m with derating
- Continuous Current Rating:
- 0.8
- Width:
- 104 mm
- Communication Interface:
- Modbus || Ethernet
- Breaking Capacity:
- 200 kA 240 V AC 50/60 Hz UL 489 || 200 kA 480 V AC 50/60 Hz UL 489 || 100 kA 600 V AC 50/60 Hz UL 489
- Wire Stripping Length:
- 16 mm
- Ip Degree Of Protection:
- front cover IP40 IEC 60529
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
