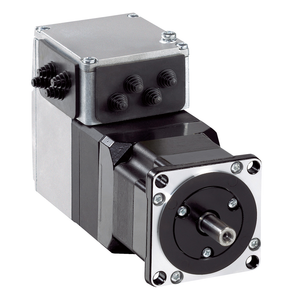

Schneider Electric ILA1F572PC1A0 Lexium Ila Servomot 24 36V Canop Enc

SKU:

ILA1F572PC1A0

UPC:

3.38912E+12

MPN:

Condition:

New

Protection Type:

overload of output voltage || short circuit of the output voltage || safe torque off

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

[Us] Rated Supply Voltage:

36 V || 24 V

Type Of Cooling:

natural convection

Motor Type:

AC Synchronous Servo Motor

Transmission Rate:

50, 100, 125, 250, 500, 800 and 1000 kbauds

Mounting Holes Diameter:

5.2 mm

Permissible Ambient Air Temperature Around The Device:

105 °C power amplifier || 110 °C motor

Shaft Length:

20 mm

Voltage State 0 Guaranteed:

-3...4.5 V

Range Of Product:

Lexium integrated drive

Number Of Motor Poles:

6

Shaft Diameter:

9 mm

Network Type:

DC

Supply Voltage Limits:

18-40 V

Maximum Axial Force Fa:

104 N force pressure) || 104 N tensile force)

Maximum Switching Current:

100 mA per output || 200 mA total

Discrete Input Current:

10-10 mA at 24 V on/STO_A safety input || 3-3 mA at 24 V on/STO_B safety input || 2-2 mA at 24 V 24 V signal interface

Current Consumption:

7000 mA maximum continuous || 8500 mA peak

Pvc Free:

Yes

Nominal Speed:

2600 rpm 24 V || 4300 rpm 36 V

Mercury Free:

Yes

Circularity Profile:

ENVEOLI2011004EN

Second Shaft:

without second shaft end

Length:

163.8 mm

Winding Type:

medium speed of rotation and medium torque

Centring Collar Diameter:

50 mm

Net Weight:

1.7 kg

Maximum Radial Force Fr:

107 N

Shock Resistance:

150 m/s² 1000 shocks IEC 60068-2-29

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Service Life In Hours:

20000 h bearing

Centring Collar Depth:

1.6 mm

Continuous Stall Torque:

0.45 N.m

Nominal Torque:

0.45 N.m

China Rohs Regulation:

X

Motor Flange Size:

57 mm

Ambient Air Temperature For Storage:

-25-70 °C

Circle Diameter Of The Mounting Holes:

66.6 mm

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Discrete Output Voltage:

23...25 V

Device Short Name:

ILA

Holding Brake:

without

Speed Feedback Resolution:

16384 points/turn

Phase:

single phase

Mounting Support:

flange

Electrical Connection:

industrial connector

Feedback Type:

single turn encoder

Input/Output Type:

4 signals (each be used as input or output)

Vibration Resistance:

20 m/s² 10-500 Hz) 10 cycles IEC 60068-2-6

Accuracy Error:

+/- 0.05 °

Product Certifications:

cUL || TÜV || UL

Product Or Component Type:

motion integrated drive

Sustainable Offer Status:

Green Premium product

Shaft End:

untapped

Gear Box Type:

without

Rohs Exemption Information:

Yes

Marking:

CE

Peak Stall Torque:

0.72 N.m

Ip Degree Of Protection:

shaft bushing IP41 IEC 60034-5 || total except shaft bushing IP54 IEC 60034-5

Operating Altitude:

<= 3280.84 ft (1000 m) without derating

Voltage State 1 Guaranteed:

15...30 V

Ambient Air Temperature For Operation:

50-65 °C with power derating of 2 % per °C) || 0-50 °C without derating)

Warranty:

18 months

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Communication Interface:

CANopen DS301, Integrated

Number Of Motor Stacks:

2

Rotor Inertia:

0.18 kg.cm²

Environmental Disclosure:

ENVPEP2011004EN

Associated Fuse Rating:

0.416666666666667

Standards:

IEC 50347 || EN 61800-3 : 2001-02 || IEC 61800-3 || EN 61800-3:2001, second environment || IEC 61800-3, Ed 2 || IEC 60072-1 || IEC 50178

Number Of Mounting Holes:

4

Relative Humidity:

15-85 % without condensation
