40-55 °C with power derating of 2 % per °C) || 0-40 °C without derating)
Centring Collar Depth:
1.6 mm

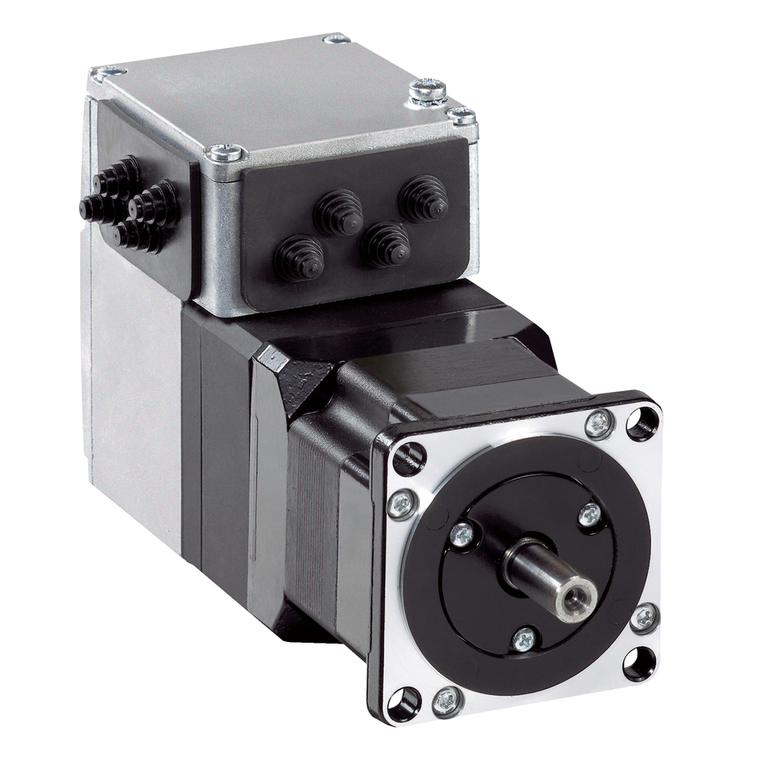

Product Or Component Type:
motion integrated drive
Number Of Motor Poles:
6
Winding Type:
medium speed of rotation and medium torque
Centring Collar Diameter:
50 mm
Accuracy Error:
+/- 0.05 °
Standards:
IEC 50178 || IEC 60072-1 || IEC 50347 || IEC 61800-3 || EN 61800-3 : 2001-02 || IEC 61800-3, Ed 2 || EN 61800-3:2001, second environment
Nominal Speed:
3200 rpm 24 V || 5100 rpm 48 V
Discrete Output Voltage:
23...25 V
Motor Type:
AC Synchronous Servo Motor
Voltage State 0 Guaranteed:
-3...4.5 V
Range Of Product:
Lexium integrated drive
Supply Voltage Limits:
18-55.2 V
Motor Flange Size:
57 mm
Number Of Mounting Holes:
4
Transmission Rate:
100 Mbits
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Operating Altitude:
<= 3280.84 ft (1000 m) without derating
Nominal Torque:
0.44 N.m
Maximum Switching Current:
100 mA per output || 200 mA total
Shaft End:
untapped
Mercury Free:
Yes
[Us] Rated Supply Voltage:
48 V || 24 V
Mounting Holes Diameter:
5.2 mm
Shaft Diameter:
9 mm
Second Shaft:
without second shaft end
Permissible Ambient Air Temperature Around The Device:
105 °C power amplifier || 110 °C motor
Ambient Air Temperature For Storage:
-25-70 °C
Input/Output Type:
4 signals (each be used as input or output)
Discrete Input Current:
10-10 mA at 24 V safety input || 2-2 mA at 24 V 24 V signal interface
Maximum Axial Force Fa:
104 N force pressure) || 104 N tensile force)
Net Weight:
1.4 kg
Rotor Inertia:
0.095 kg.cm²
Warranty:
18 months
Holding Brake:
without
Vibration Resistance:
20 m/s² 10-500 Hz) 10 cycles IEC 60068-2-6
Phase:
single phase
Protection Type:
safe torque off || short circuit of the output voltage || overload of output voltage
Circularity Profile:
ENVEOLI2011004EN
Relative Humidity:
15-85 % without condensation
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Mounting Support:
flange
Peak Stall Torque:
0.62 N.m
Shock Resistance:
150 m/s² 1000 shocks IEC 60068-2-29
Voltage State 1 Guaranteed:
15...30 V
Pvc Free:
Yes
Current Consumption:
5000 mA maximum continuous || 7000 mA peak
Marking:
CE
Environmental Disclosure:
ENVPEP2011004EN
Gear Box Type:
without
Commissioning Interface:
RS485 Modbus TCP 9.6, 19.2 and 38.4 kbauds)
Speed Feedback Resolution:
16384 points/turn
Shaft Length:
20 mm
Associated Fuse Rating:
16 A
Circle Diameter Of The Mounting Holes:
66.6 mm
Service Life In Hours:
20000 h bearing
Feedback Type:
single turn encoder
Type Of Cooling:
natural convection
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
