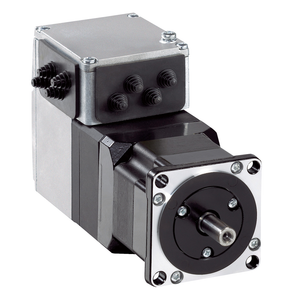

Schneider Electric ILA2E572PC1A0 Lexium Ila Servomot 24 48V Ethcat Enc

SKU:

ILA2E572PC1A0

UPC:

3606485187495

MPN:

Condition:

New

Number Of Motor Poles:

6

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Voltage State 0 Guaranteed:

-3...4.5 V

Circularity Profile:

ENVEOLI2011004EN

Shock Resistance:

150 m/s² 1000 shocks IEC 60068-2-29

Network Type:

DC

Maximum Axial Force Fa:

104 N force pressure) || 104 N tensile force)

Number Of Mounting Holes:

4

Motor Flange Size:

57 mm

Discrete Output Voltage:

23...25 V

Pvc Free:

Yes

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Permissible Ambient Air Temperature Around The Device:

105 °C power amplifier || 110 °C motor

Ip Degree Of Protection:

shaft bushing IP41 IEC 60034-5 || total except shaft bushing IP54 IEC 60034-5

Environmental Disclosure:

ENVPEP2011004EN

Product Certifications:

UL || cUL || TÜV

Mounting Support:

flange

Input/Output Type:

4 signals (each be used as input or output)

Associated Fuse Rating:

16 A

Rohs Exemption Information:

Yes

Device Short Name:

ILA

Phase:

single phase

Warranty:

18 months

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Type Of Cooling:

natural convection

Shaft End:

untapped

Operating Altitude:

<= 3280.84 ft (1000 m) without derating

Ambient Air Temperature For Operation:

40-55 °C with power derating of 2 % per °C) || 0-40 °C without derating)

Length:

163.8 mm

Electrical Connection:

industrial connector

Current Consumption:

7000 mA maximum continuous || 8500 mA peak

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

China Rohs Regulation:

X

Centring Collar Depth:

1.6 mm

Nominal Speed:

1600 rpm 24 V || 3400 rpm 48 V

Winding Type:

medium speed of rotation and medium torque

Holding Brake:

without

Mercury Free:

Yes

Nominal Torque:

0.78 N.m

Mounting Holes Diameter:

5.2 mm

Net Weight:

1.7 kg

Sustainable Offer Status:

Green Premium product

Standards:

IEC 50178 || EN 61800-3 : 2001-02 || IEC 61800-3 || IEC 60072-1 || EN 61800-3:2001, second environment || IEC 61800-3, Ed 2 || IEC 50347

Supply Voltage Limits:

18-55.2 V

Number Of Motor Stacks:

2

Communication Interface:

EtherCAT, Integrated

Continuous Stall Torque:

0.78 N.m

Gear Box Type:

without

Shaft Diameter:

9 mm

Rotor Inertia:

0.173 kg.cm²

Maximum Switching Current:

100 mA per output || 200 mA total

Relative Humidity:

15-85 % without condensation

Speed Feedback Resolution:

16384 points/turn

Discrete Input Current:

10-10 mA at 24 V safety input || 2-2 mA at 24 V 24 V signal interface

Voltage State 1 Guaranteed:

15...30 V

Protection Type:

short circuit of the output voltage || safe torque off || overload of output voltage

Maximum Radial Force Fr:

107 N

Transmission Rate:

100 Mbits

Motor Type:

AC Synchronous Servo Motor

Shaft Length:

20 mm

Range Of Product:

Lexium integrated drive

Second Shaft:

without second shaft end

Peak Stall Torque:

1.62 N.m

Product Or Component Type:

motion integrated drive

Accuracy Error:

+/- 0.05 °

Vibration Resistance:

20 m/s² 10-500 Hz) 10 cycles IEC 60068-2-6

Centring Collar Diameter:

50 mm

Marking:

CE

Circle Diameter Of The Mounting Holes:

66.6 mm

Commissioning Interface:

RS485 Modbus TCP 9.6, 19.2 and 38.4 kbauds)

Ambient Air Temperature For Storage:

-25-70 °C

[Us] Rated Supply Voltage:

48 V || 24 V

Feedback Type:

single turn encoder

Service Life In Hours:

20000 h bearing
