IEC 60072-1 || IEC 61800-3 || EN 61800-3 : 2001-02 || EN 61800-3:2001, second environment || IEC 50178 || IEC 61800-3, Ed 2 || IEC 50347
Commissioning Interface:
RS485 Modbus TCP 9.6, 19.2 and 38.4 kbauds)
Holding Brake:
without
Transmission Rate:
100 Mbits
Network Type:
DC
Discrete Output Voltage:
23...25 V
Phase:
single phase
Current Consumption:
7500 mA maximum continuous || 9000 mA peak
Maximum Switching Current:
100 mA per output || 200 mA total
Nominal Speed:
3000 rpm 24 V || 5100 rpm 48 V
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Rotor Inertia:
0.173 kg.cm²
Winding Type:
high speed of rotation and medium torque
Supply Voltage Limits:
18-55.2 V
Type Of Cooling:
natural convection
Peak Stall Torque:
0.85 N.m
Permissible Ambient Air Temperature Around The Device:
105 °C power amplifier || 110 °C motor
Circle Diameter Of The Mounting Holes:
66.6 mm
Electrical Connection:
industrial connector
Marking:
CE
Continuous Stall Torque:
0.57 N.m
Product Certifications:
cUL || TÃV || UL
Number Of Motor Poles:
6
Net Weight:
1.7 kg
Discrete Input Current:
10-10 mA at 24 V safety input || 2-2 mA at 24 V 24 V signal interface
Shaft End:
untapped
Maximum Axial Force Fa:
104 N force pressure) || 104 N tensile force)
Voltage State 0 Guaranteed:
-3...4.5 V
Pvc Free:
Yes
Shaft Diameter:
9 mm
Mercury Free:
Yes
Protection Type:
short circuit of the output voltage || overload of output voltage || safe torque off
Gear Box Type:
without
Number Of Motor Stacks:
2
Ambient Air Temperature For Storage:
-25-70 °C
Range Of Product:

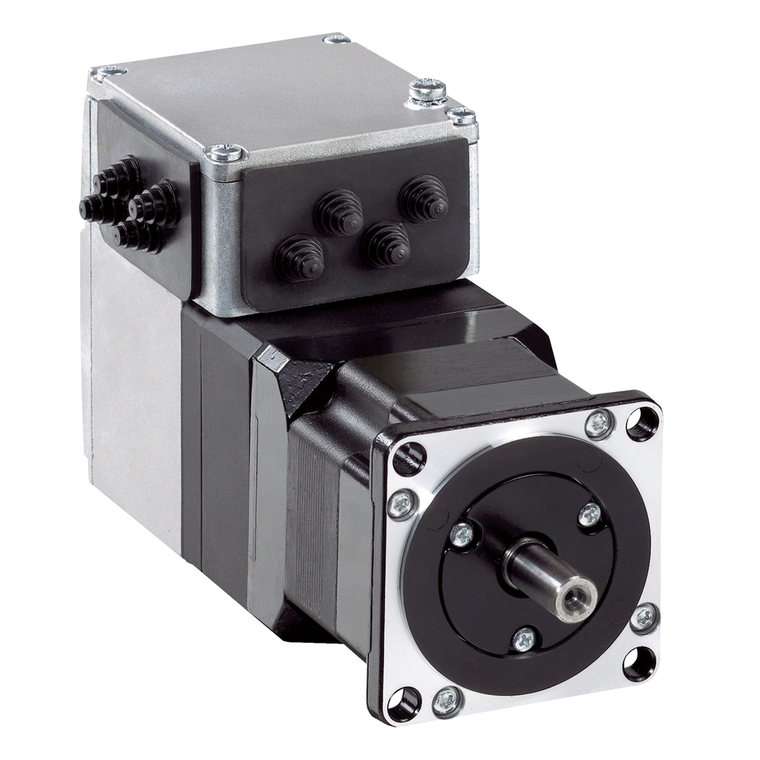

Lexium integrated drive
Second Shaft:
without second shaft end
Motor Flange Size:
57 mm
Centring Collar Diameter:
50 mm
Relative Humidity:
15-85 % without condensation
Environmental Disclosure:
ENVPEP2011004EN
Voltage State 1 Guaranteed:
15...30 V
Operating Altitude:
<= 3280.84 ft (1000 m) without derating
Maximum Radial Force Fr:
107 N
Mounting Support:
flange
Warranty:
18 months
Feedback Type:
single turn encoder
Number Of Mounting Holes:
4
Mounting Holes Diameter:
5.2 mm
Device Short Name:
ILA
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
