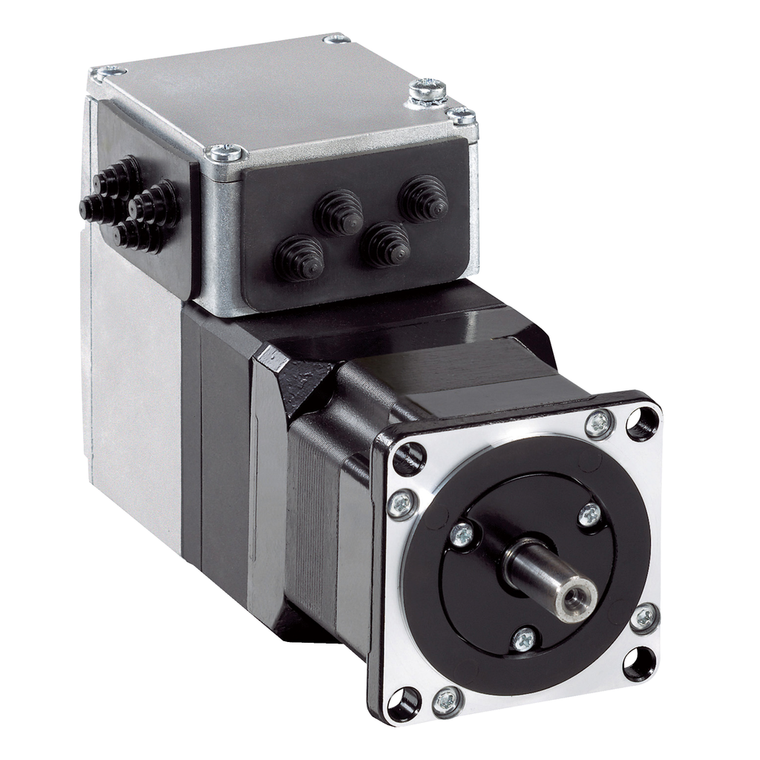

Schneider Electric ILA2K571PC1F0 Lexium Ila Servomot 24 48V Eth Ip Brake

SKU:

ILA2K571PC1F0

UPC:

3606485204475

MPN:

Condition:

New

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Second Shaft:

without second shaft end

China Rohs Regulation:

X

Motor Flange Size:

57 mm

Number Of Motor Poles:

6

Input/Output Type:

4 signals (each be used as input or output)

Length:

190.8 mm

Pvc Free:

Yes

Ambient Air Temperature For Operation:

40-55 °C with power derating of 2 % per °C) || 0-40 °C without derating)

Rohs Exemption Information:

Yes

Discrete Input Current:

10-10 mA at 24 V safety input || 2-2 mA at 24 V 24 V signal interface

Motor Type:

AC Synchronous Servo Motor

Centring Collar Depth:

1.6 mm

Maximum Axial Force Fa:

104 N force pressure) || 104 N tensile force)

Sustainable Offer Status:

Green Premium product

Type Of Cooling:

natural convection

Voltage State 1 Guaranteed:

15...30 V

Mounting Support:

flange

Ip Degree Of Protection:

shaft bushing IP41 EN/IEC 60034-5 || total except shaft bushing IP54 EN/IEC 60034-5

Net Weight:

1.4 kg

Number Of Motor Stacks:

1

Speed Feedback Resolution:

16384 points/turn

Standards:

EN/IEC 50178 || IEC 60072-1 || EN/IEC 61800-3 || EN 50347 || IEC 61800-3, Ed 2 || EN 61800-3:2001, second environment || EN 61800-3 : 2001-02

Electrical Connection:

industrial connector

Range Of Product:

Lexium integrated drive

Winding Type:

medium speed of rotation and medium torque

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

[Us] Rated Supply Voltage:

24 V || 48 V

Current Consumption:

5000 mA maximum continuous || 7000 mA peak

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Holding Torque:

1.2 N.m holding brake

Number Of Mounting Holes:

4

Feedback Type:

single turn encoder

Nominal Speed:

3200 rpm 24 V || 5100 rpm 48 V

Commissioning Interface:

RS485 Modbus TCP 9.6, 19.2 and 38.4 kbauds)

Permissible Ambient Air Temperature Around The Device:

105 °C power amplifier || 110 °C motor

Vibration Resistance:

20 m/s² 10-500 Hz) 10 cycles EN/IEC 60068-2-6

Rotor Inertia:

0.165 kg.cm²

Phase:

single phase

Warranty:

18 months

Environmental Disclosure:

ENVPEP2011004EN

Maximum Radial Force Fr:

89 N

Operating Altitude:

<= 3280.84 ft (1000 m) without derating

Accuracy Error:

+/- 0.05 °

Transmission Rate:

125, 250, 500 kbauds

Maximum Switching Current:

100 mA per output || 200 mA total

Product Or Component Type:

motion integrated drive

Circularity Profile:

ENVEOLI2011004EN

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Peak Stall Torque:

0.62 N.m

Relative Humidity:

15-85 % without condensation

Continuous Stall Torque:

0.44 N.m

Nominal Torque:

0.44 N.m

Associated Fuse Rating:

16 A

Circle Diameter Of The Mounting Holes:

66.6 mm

Shaft Diameter:

9 mm

Protection Type:

short circuit of the output voltage || overload of output voltage || safe torque off

Brake Release Time:

14 ms

Shaft Length:

20 mm

Supply Voltage Limits:

18-55.2 V

Device Short Name:

ILA

Service Life In Hours:

20000 h bearing

Voltage State 0 Guaranteed:

-3...4.5 V

Communication Interface:

Ethernet/IP, Integrated

Brake Application Time:

13 ms

Marking:

CE

Mounting Holes Diameter:

5.2 mm

Brake Pull-In Power:

10 W

Ambient Air Temperature For Storage:

-25-70 °C

Discrete Output Voltage:

23...25 V

Shock Resistance:

150 m/s² 1000 shocks EN/IEC 60068-2-29

Centring Collar Diameter:

50 mm

Network Type:

DC

Gear Box Type:

without

Holding Brake:

with

Shaft End:

untapped
